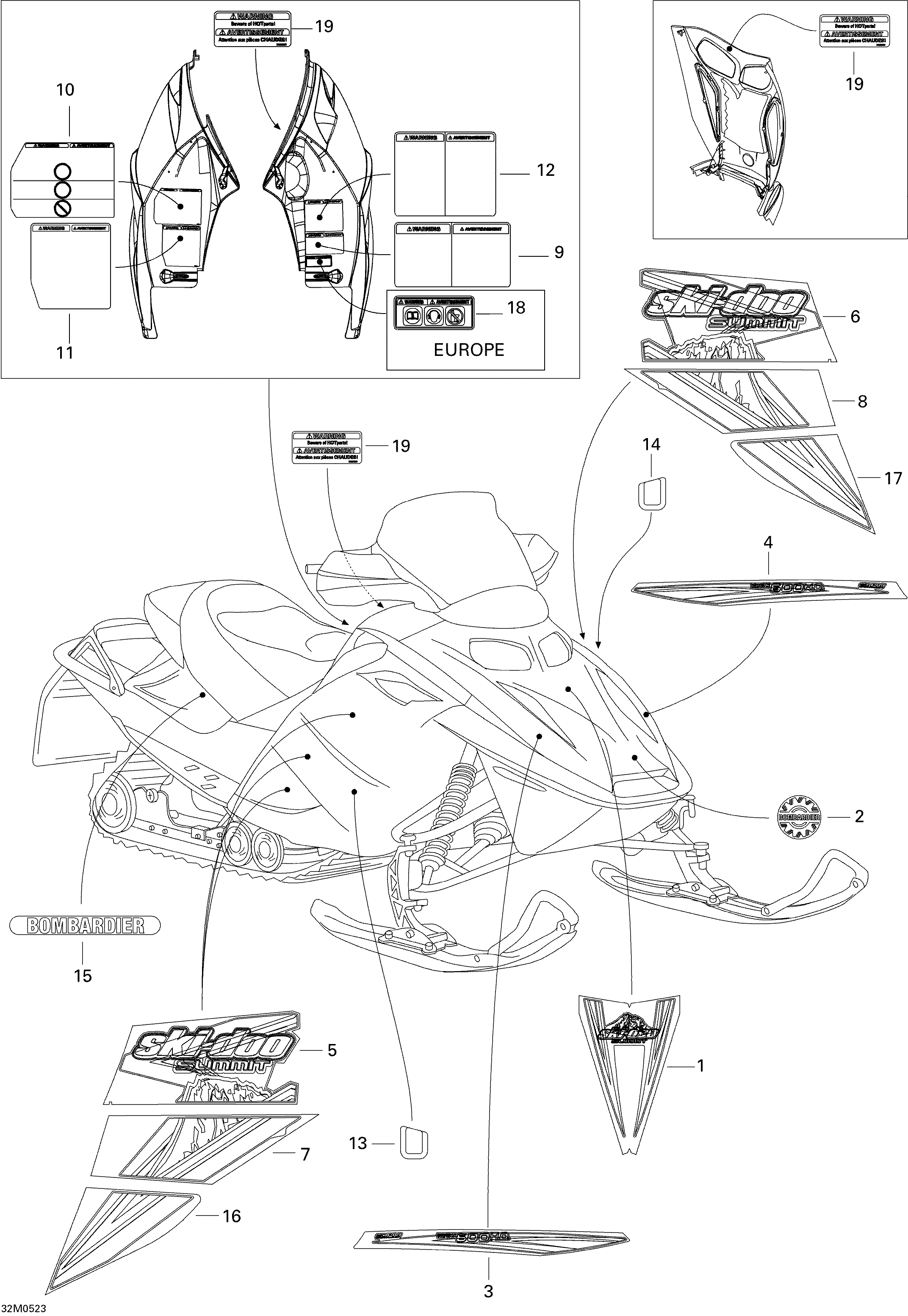

09- Decals для BRP Ski-Doo Summit 550F - 2005
-
№АртикулНазвание
-
1516002417 Front DecalFront Decal
-
2516000983 Logo «bombardier»Logo «bombardier»
-
3516002419 RH Rotax DecalRH Rotax Decal
-
4516002421 LH Rotax DecalLH Rotax Decal
-
5516002404 RH Side DecalRH Side Decal
-
6516002631 LH Side DecalLH Side Decal
-
7516002408 RH Lower Side DecalRH Lower Side Decal
-
8516002423 LH Lower Side DecalLH Lower Side Decal
-
9516002672 Label Security, Passenger NumberLabel Security, Passenger Number
-
10516002641 Label Security, GeneralLabel Security, General
-
11516002671 Label Security, FamiliarizationLabel Security, Familiarization
-
12516002642 Label Security, StartingLabel Security, Starting
-
13516001910 RH Protector DecalRH Protector Decal
-
14516001911 LH Protector DecalLH Protector Decal
-
15516001980 Bombardier DecalBombardier Decal
-
16516002412 RH Lower Rear DecalRH Lower Rear Decal
-
17516002413 LH Lower Rear DecalLH Lower Rear Decal
-
18516002703 Decal, Europe. EuropeDecal, Europe. Europe
-
19516002664 Security LabelSecurity Label
