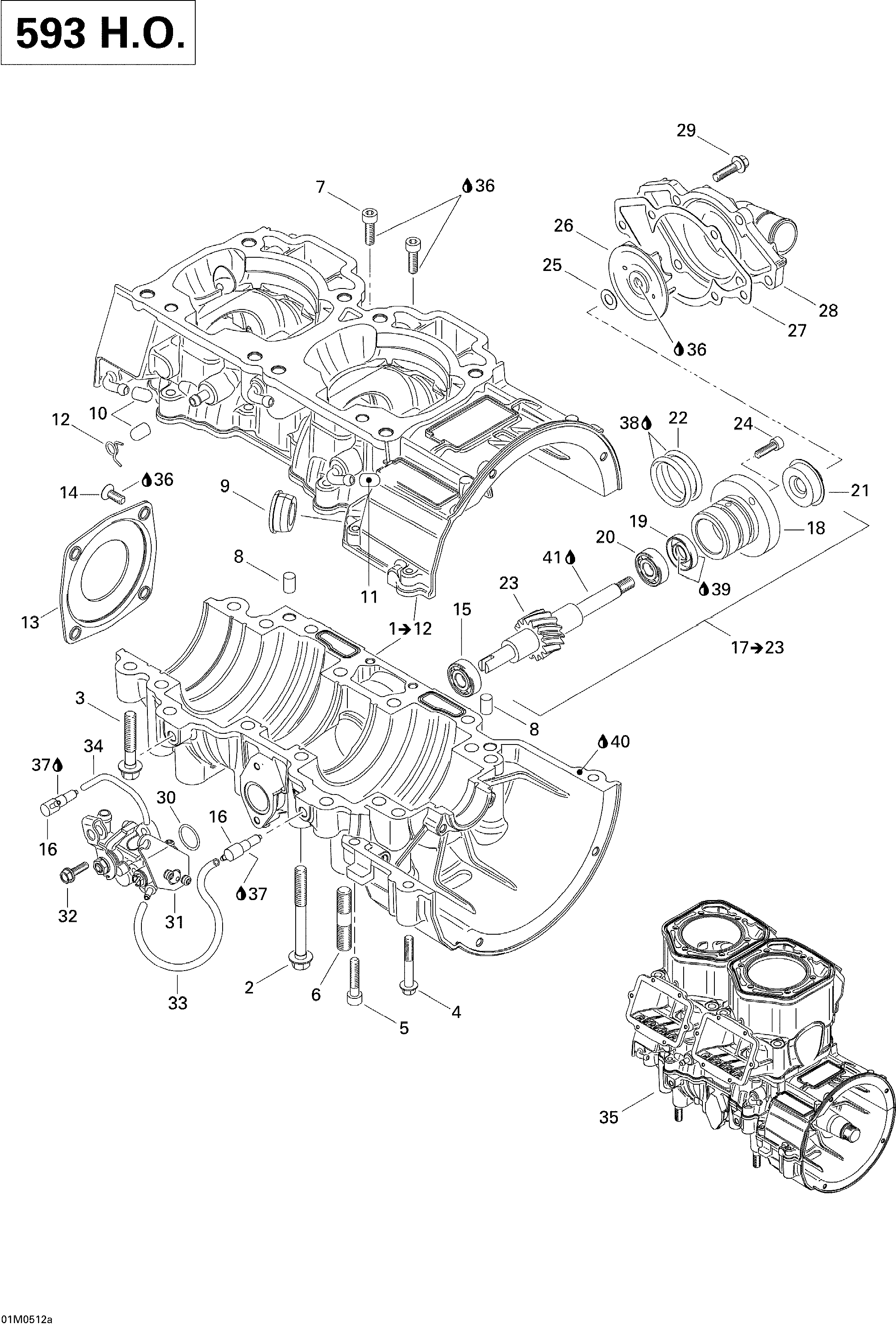

01- Crankcase, Water Pump And Oil Pump (593HO) для BRP Ski-Doo Summit 600 HO - 2005
-
№АртикулНазвание
-
1420889683 Crankcase Ass'Y. Includes 1 to 12Crankcase Ass'Y. Includes 1 to 12
-
2420640836 Hex Collar Screw M8 X 75Hex Collar Screw M8 X 75
-
3420640431 Hex Collar Screw M8 X 45Hex Collar Screw M8 X 45
-
4420640311 Hex Collar Screw M6 X 45Hex Collar Screw M6 X 45
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420641834 Stud M10 X 29Stud M10 X 29
-
7420840401 Socket Head Screw M6 X 22Socket Head Screw M6 X 22
-
8420632010 Center PinCenter Pin
-
9420860965 Cable GrommetCable Grommet
-
10420960770 CapCap
-
11420960777 CapCap
-
12420938190 ClampClamp
-
13420812420 CoverCover
-
14420941430 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
15420232100 Ball BearingBall Bearing
-
16420956510 Check ValveCheck Valve
-
17420837421 Water Pump/Oil Pump Ass'Y. Includes 17 to 23Water Pump/Oil Pump Ass'Y. Includes 17 to 23
-
19420230196 Oil SealOil Seal
-
20420232100 Ball BearingBall Bearing
-
21420650370 Rotary SealRotary Seal
-
22420950890 O-RingO-Ring
-
24420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
25420227945 WasherWasher
-
26420222505 Water ImpellerWater Impeller
-
27420931810 GasketGasket
-
28420922630 Water Pump HousingWater Pump Housing
-
29420240031 Hex Screw M6 X 25Hex Screw M6 X 25
-
30293300041 O-ringO-ring
-
31420888780 Oil Pump Ass'YOil Pump Ass'Y
-
32420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
33414413800 Oil LineOil Line
-
34414413800 Oil LineOil Line
-
35420059342 Short Block «593 H.o.»Short Block «593 H.o.»
-
36293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
37413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
38413707000 Molykote 111, 150 GMolykote 111, 150 G
-
39420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
-
40293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
41413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
