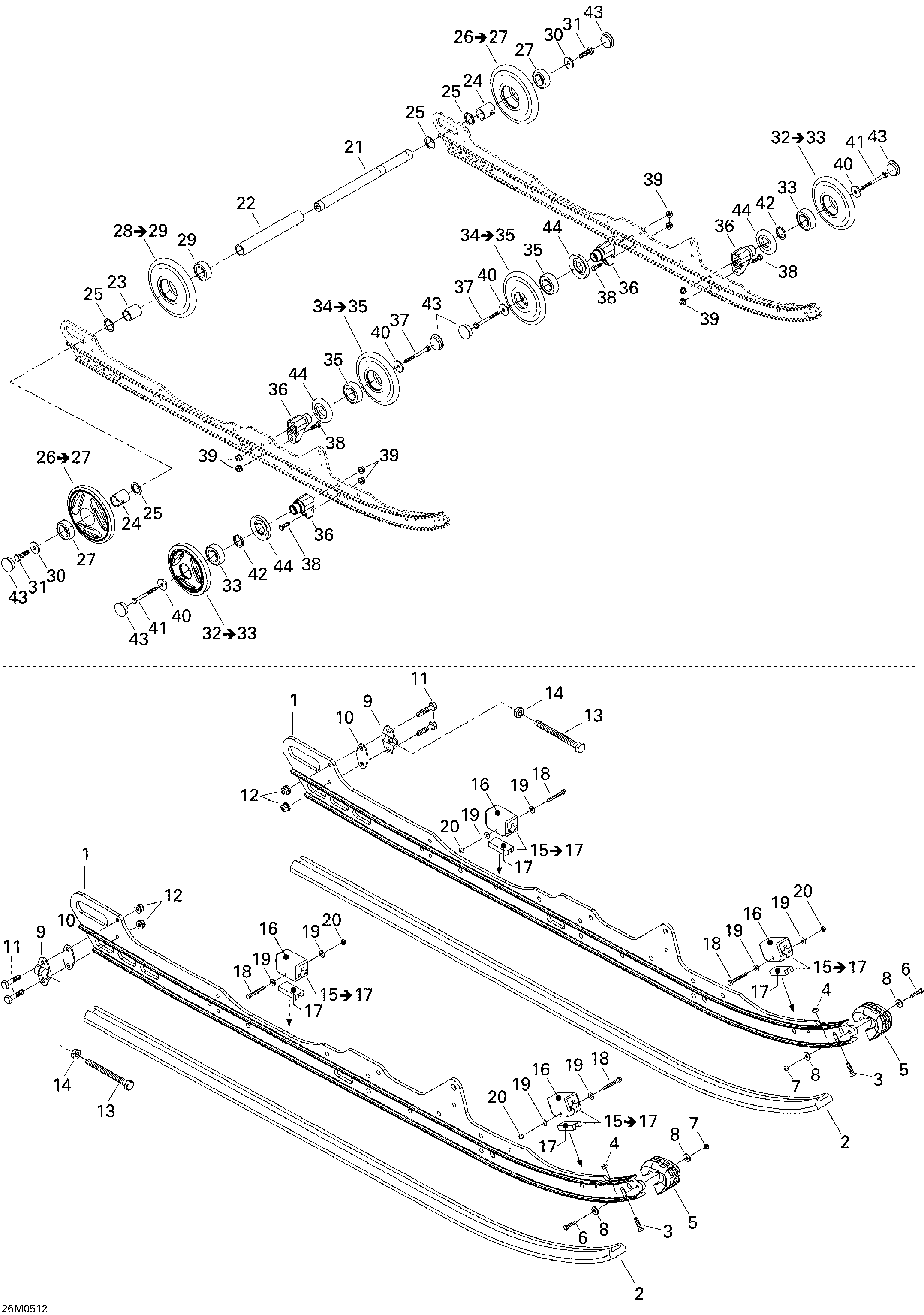

08- Rear Suspension 600HO для BRP Ski-Doo Summit 600 HO - 2005
-
№АртикулНазвание
-
1503190347 Runner 151''. X & AdrenalineRunner 151''. X & Adrenaline
-
1503190402 Runner 144''. X & AdrenalineRunner 144''. X & Adrenaline
-
2503190368 Rail 151'', Black. AdrenalineRail 151'', Black. Adrenaline
-
2503190384 Rail 144'', Black. AdrenalineRail 144'', Black. Adrenaline
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9503155300 TensionerTensioner
-
10503189160 Tensioner SpacerTensioner Spacer
-
11207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
12233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
13230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
14233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
15503190905 Rubber Stopper Ass'y. Includes 15 to 17Rubber Stopper Ass'y. Includes 15 to 17
-
16570063000 Rubber StopperRubber Stopper
-
17572084800 Reinforcement StopperReinforcement Stopper
-
18207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
19391301700 WasherWasher
-
20232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
21503160700 Rear AxleRear Axle
-
22503183000 Central SpacerCentral Spacer
-
23503182900 Inner SpacerInner Spacer
-
24503189809 Outer SpacerOuter Spacer
-
25503180400 WasherWasher
-
26503190800 Wheel 180 Ass'y, Yellow. Includes 26 to 27Wheel 180 Ass'y, Yellow. Includes 26 to 27
-
27503190795 Ball BearingBall Bearing
-
28503190799 Wheel 180. Includes 28 to 29Wheel 180. Includes 28 to 29
-
29503190795 Ball BearingBall Bearing
-
30503183300 WasherWasher
-
31250000019 Hex Screw With NylonHex Screw With Nylon
-
32503190815 Wheel 139 mm. Includes 32 to 33Wheel 139 mm. Includes 32 to 33
-
33503190795 Ball BearingBall Bearing
-
34503190798 Wheel 139 mm. Includes 34 to 35Wheel 139 mm. Includes 34 to 35
-
35503190795 Ball BearingBall Bearing
-
36503190389 SupportSupport
-
37207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
38207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
39233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
40503183100 WasherWasher
-
41207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
42503173700 WasherWasher
-
43570063600 Wheel CapWheel Cap
-
44572089000 Labyrinth SealLabyrinth Seal
