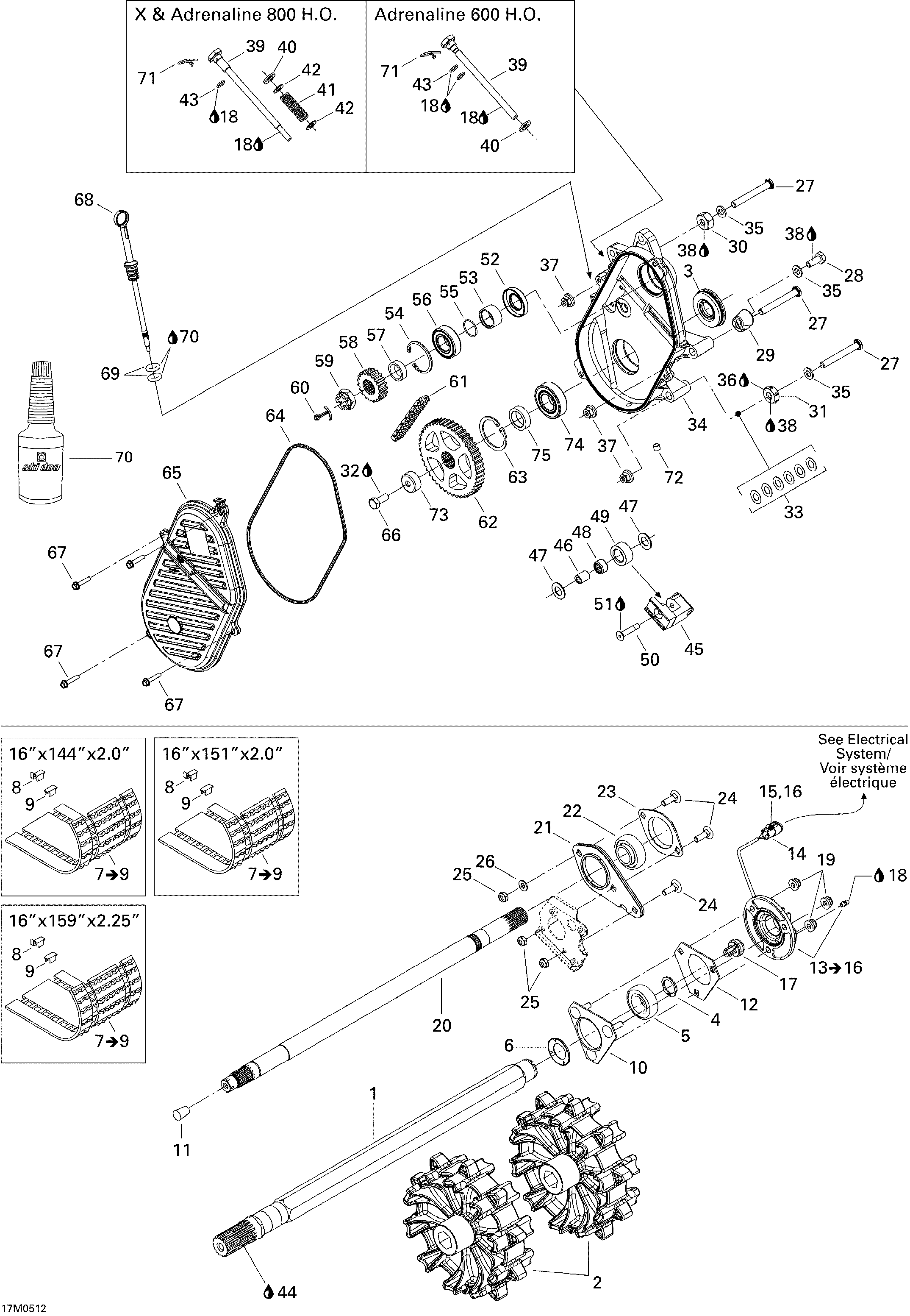

05- Drive System 600HO для BRP Ski-Doo Summit 600 HO - 2005
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504152502 Sprocket, 10 Teeth, Interior/exterior. X, Adrenaline. Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applicationsSprocket, 10 Teeth, Interior/exterior. X, Adrenaline. Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applications
-
3504151918 Oil Seal Ass'YOil Seal Ass'Y
-
4371910200 CirclipCirclip
-
5504152009 Ball BearingBall Bearing
-
6501017400 Bearing ProtectorBearing Protector
-
7504152223 Track Ass'y 16''x144''x2.0''. X & Adr. 800 H.O. & 600 H.O., Includes 7 to 9Track Ass'y 16''x144''x2.0''. X & Adr. 800 H.O. & 600 H.O., Includes 7 to 9
-
8500003400 Guide Cleat. X & Adr. 800 H.O. & 600 H.O.Guide Cleat. X & Adr. 800 H.O. & 600 H.O.
-
9500003300 Cleat. X & Adr. 800 H.O. & 600 H.O.Cleat. X & Adr. 800 H.O. & 600 H.O.
-
10504151860 Bearing HousingBearing Housing
-
11414784800 CorkCork
-
12501025000 FlangeFlange
-
13504152345 Sensor. Includes 13 to 16Sensor. Includes 13 to 16
-
14515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
15278000632 Female TerminalFemale Terminal
-
16515175676 Female Lock, 3 CircuitsFemale Lock, 3 Circuits
-
17504152040 Magnetic AdaptorMagnetic Adaptor
-
18219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
19233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
20504152018 Counter ShaftCounter Shaft
-
21504151968 SpacerSpacer
-
22504152026 Ball BearingBall Bearing
-
23501026900 FlangeFlange
-
24207782544 Carriage Bolt M8 X 25Carriage Bolt M8 X 25
-
25232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
26234081410 Flat Washer 8 mmFlat Washer 8 mm
-
27250000151 Hex Screw M10 X 80Hex Screw M10 X 80
-
28207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
29504152252 SpacerSpacer
-
30504083800 SpacerSpacer
-
31504152237 SpacerSpacer
-
32293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
33504073700 WasherWasher
-
34504152312 Chaincase. Adrenaline 600 H.O.Chaincase. Adrenaline 600 H.O.
-
35503175800 WasherWasher
-
36293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
37233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
38293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
39732601314 Adjusting Screw. Adrenaline 600 H.O.Adjusting Screw. Adrenaline 600 H.O.
-
40234001410 Flat Washer 10 mm. Adrenaline 600 H.O.Flat Washer 10 mm. Adrenaline 600 H.O.
-
43414484400 O-Ring. Adrenaline 600 H.O.O-Ring. Adrenaline 600 H.O.
-
44219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
45504151951 Chain Tensioner. Adrenaline 600 H.O.Chain Tensioner. Adrenaline 600 H.O.
-
46504080200 SpacerSpacer
-
47504080300 WasherWasher
-
48405403000 Needle BearingNeedle Bearing
-
49414531300 RollerRoller
-
50732601144 ScrewScrew
-
51293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
52415049300 Oil SealOil Seal
-
53507031500 SpacerSpacer
-
54371901700 Circlip, InteriorCirclip, Interior
-
55414876700 O-RingO-Ring
-
56504152006 Ball BearingBall Bearing
-
57504147200 ShimShim
-
58504096200 Sprocket, 21 Teeth. X & Adrenaline 800 H.O. & 600 H.O.Sprocket, 21 Teeth. X & Adrenaline 800 H.O. & 600 H.O.
-
59250000012 Hex Castle Nut 20 X 1.5Hex Castle Nut 20 X 1.5
-
60371006300 Pin CotterPin Cotter
-
61504151857 Drive Chain, 74 LinksDrive Chain, 74 Links
-
62504152238 Sprocket, 45 TeethSprocket, 45 Teeth
-
63415064300 Circlip, InteriorCirclip, Interior
-
64415046400 O-RingO-Ring
-
65504152471 Chaincase CoverChaincase Cover
-
66207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
67210263080 Hex Forming Screw M6 X 30Hex Forming Screw M6 X 30
-
68504151703 Filler Cap Ass'YFiller Cap Ass'Y
-
69414969400 O-RingO-Ring
-
70413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
71414575600 Hair PinHair Pin
-
72504151921 Plug 1/8''-27Plug 1/8''-27
-
73504152460 CapCap
-
74504152005 Ball BearingBall Bearing
-
75504152058 ShimShim
