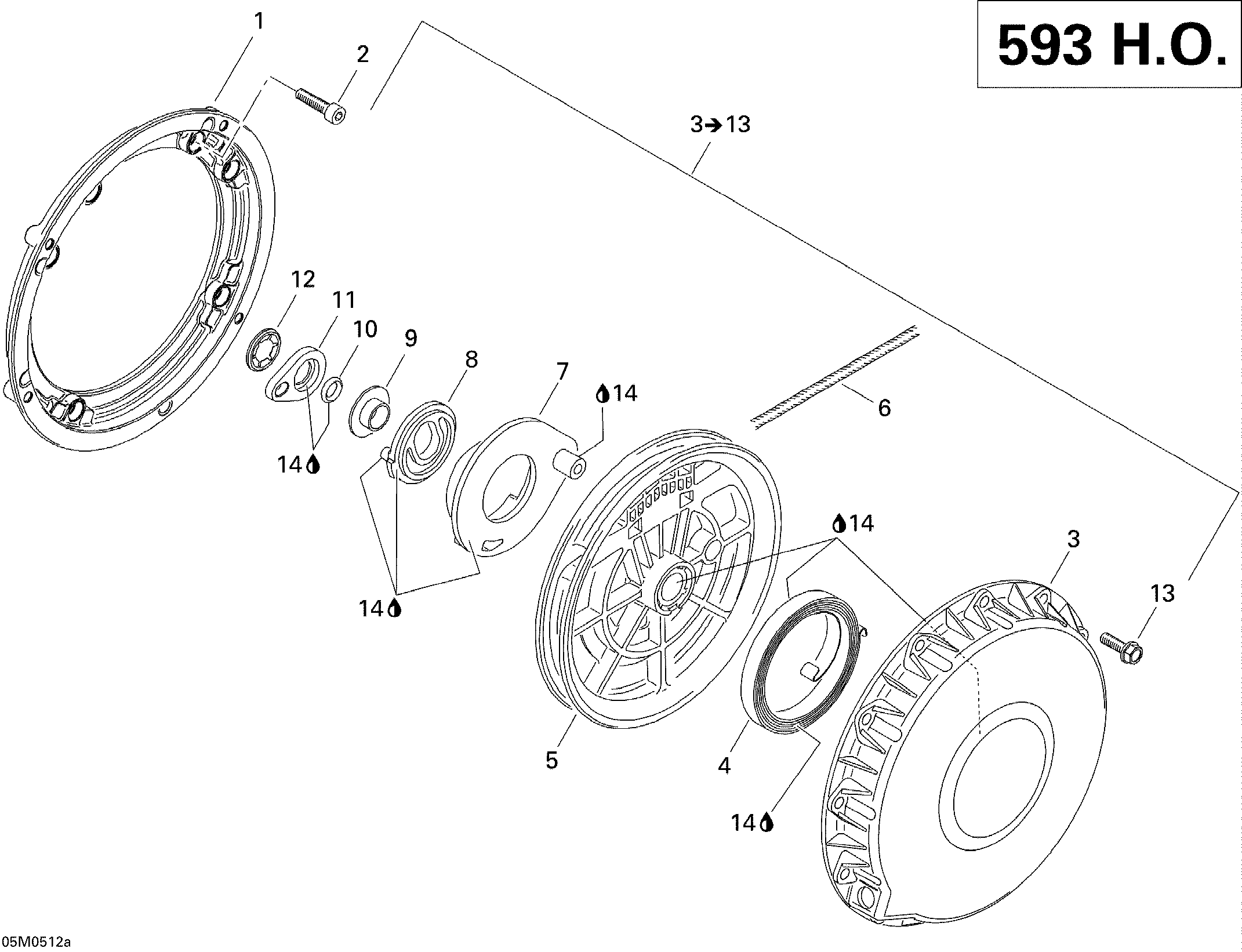

04- Rewind Starter 593HO для BRP Ski-Doo Summit 600 HO - 2005
-
№АртикулНазвание
-
1420810868 Flange ConnectorFlange Connector
-
2420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
3420889765 Rewind Starter Ass'y. Includes 3 to 13Rewind Starter Ass'y. Includes 3 to 13
-
3420811403 Starter HousingStarter Housing
-
4420939115 Rewind SpringRewind Spring
-
5420852288 Rope SheaveRope Sheave
-
6412500200 Starter RopeStarter Rope
-
7420852297 PawlPawl
-
8420852307 Pawl LockPawl Lock
-
9420847925 Stage SleeveStage Sleeve
-
10420250400 O-RingO-Ring
-
11420852520 Lock RingLock Ring
-
12420845560 Locking ElementLocking Element
-
13420941256 Hex Collar ScrewHex Collar Screw
-
14420899763 Molykote Pg 54, 10 GMolykote Pg 54, 10 G
