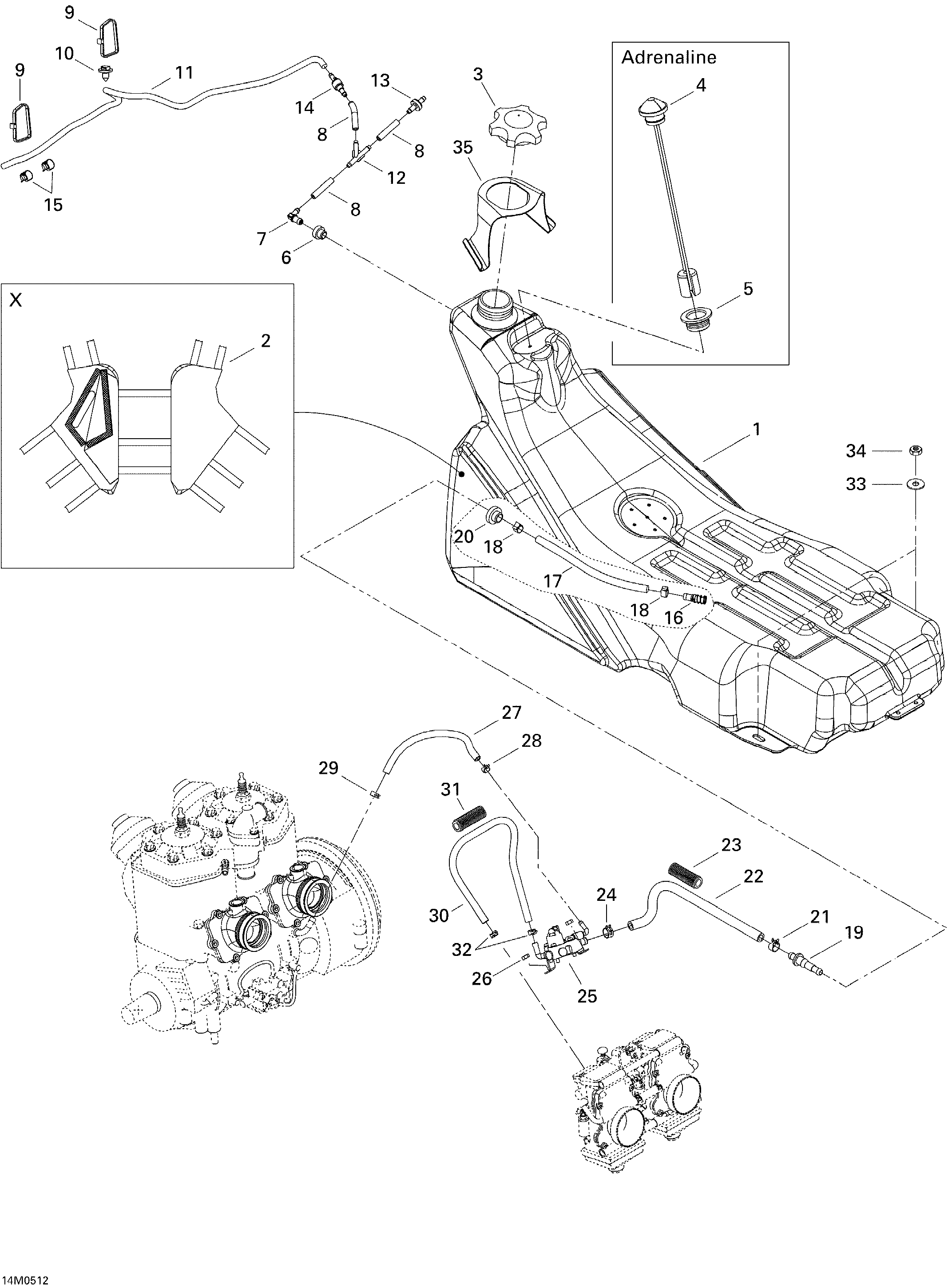

02- Fuel System 600HO для BRP Ski-Doo Summit 600 HO - 2005
-
№АртикулНазвание
-
1513033090 Fuel Tank. AdrenalineFuel Tank. Adrenaline
-
3513033025 Fuel Tank Cap. 600 H.O.Fuel Tank Cap. 600 H.O.
-
4513033095 Fuel Gauge. AdrenalineFuel Gauge. Adrenaline
-
5293720058 Grommet. AdrenalineGrommet. Adrenaline
-
6513032908 GrommetGrommet
-
7414580700 Elbow Male ConnectorElbow Male Connector
-
8415080200 LineLine
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
10293730018 Mount DartMount Dart
-
11415080200 LineLine
-
12293710059 Y-FittingY-Fitting
-
13275500398 Check ValveCheck Valve
-
14275500505 Check ValveCheck Valve
-
15414554800 Spring ClampSpring Clamp
-
16414872100 Fuel FilterFuel Filter
-
17513033070 HoseHose
-
18513033010 Norma Spring ClampNorma Spring Clamp
-
19414872700 Male ConnectorMale Connector
-
20570273900 GrommetGrommet
-
21513032979 Spring ClampSpring Clamp
-
22513033073 HoseHose
-
23415080000 Tubing, 16 mmTubing, 16 mm
-
24513032979 Spring ClampSpring Clamp
-
25403901811 Fuel Pump. Manual StarterFuel Pump. Manual Starter
-
25403901812 Fuel Pump. Electric StarterFuel Pump. Electric Starter
-
26233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
27513033035 HoseHose
-
28414415200 Spring ClampSpring Clamp
-
29513033029 Spring ClampSpring Clamp
-
30415117800 TubeTube
-
31415079900 Tubing, 10 mmTubing, 10 mm
-
32414420700 Spring ClampSpring Clamp
-
33234082410 Flat Washer M8Flat Washer M8
-
34232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
35513033066 SupportSupport
