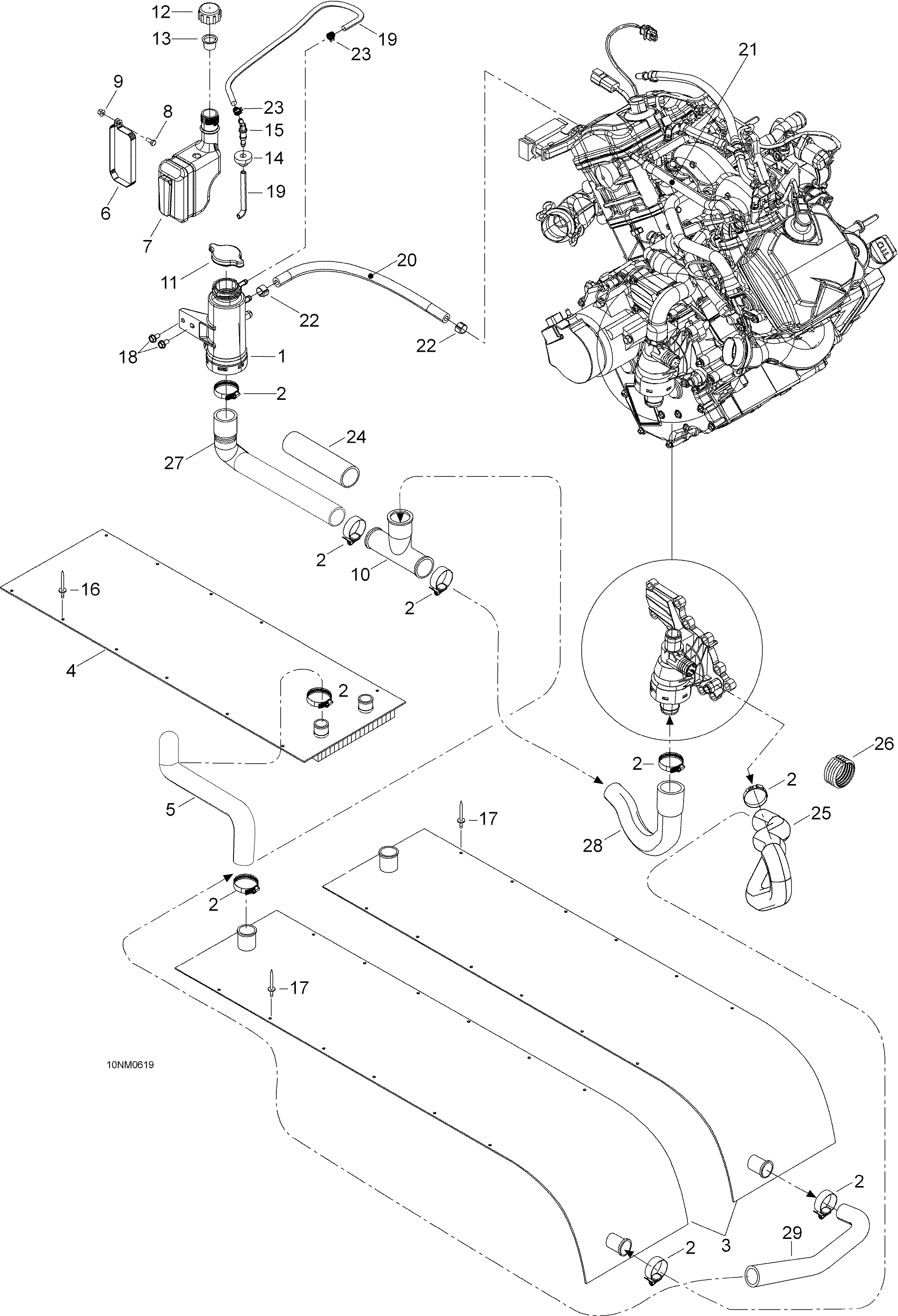

01- Cooling System для BRP Ski-Doo Expedition V-1000 - 2006
![](/wa-data/public/shop/sheme/bombardier/ski-doo/1a188550-d582-479a-aed4-a965489de6fb.png)
-
№АртикулНазвание
-
1509000176 Filler Neck Ass'YFiller Neck Ass'Y
-
2408800400 Tridon Gear ClampTridon Gear Clamp
-
3605151688 RH RadiatorRH Radiator
-
3605152382 LH RadiatorLH Radiator
-
4605351687 Radiator, RearRadiator, Rear
-
5605252280 HoseHose
-
6509000191 Coolant Tank SupportCoolant Tank Support
-
7709200099 Coolant TankCoolant Tank
-
8M40366 Screw M5X16Screw M5X16
-
9M33062 Nut M5Nut M5
-
10509000219 T-FittingT-Fitting
-
11509000180 Pressure CapPressure Cap
-
12709200009 Tank CapTank Cap
-
13709200034 Unsplash CapUnsplash Cap
-
14570135100 GrommetGrommet
-
15414580600 Elbow Male ConnectorElbow Male Connector
-
16M36489 RivetRivet
-
17M36083 RivetRivet
-
18M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
19415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
20509000304 Return HoseReturn Hose
-
21M27127 TubingTubing
-
22293650170 Tridon Hose ClampTridon Hose Clamp
-
23414554800 Spring ClampSpring Clamp
-
24M39062 TubingTubing
-
25605250712 HoseHose
-
26M390003 TubeTube
-
27605350713 HoseHose
-
28605350714 HoseHose
-
29605350715 HoseHose
