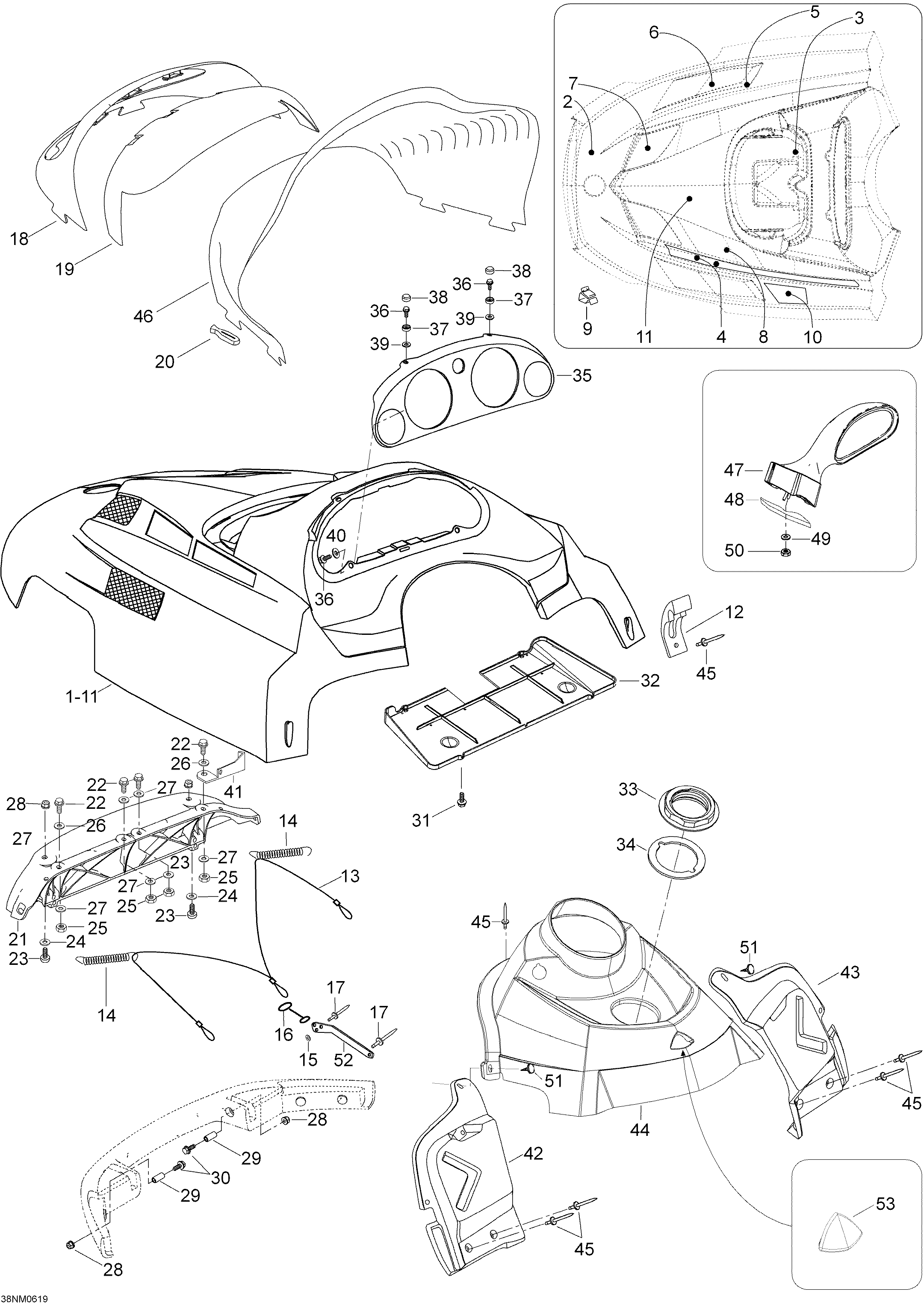

09- Hood для BRP Ski-Doo Expedition V-1000 - 2006
-
№АртикулНазвание
-
1605151473 Hood, Pre Ass'y Seashore. Seashore, Includes 1 to 11Hood, Pre Ass'y Seashore. Seashore, Includes 1 to 11
-
1605151654 Hood, Pre Ass'y Black. Black, Includes 1 to 11Hood, Pre Ass'y Black. Black, Includes 1 to 11
-
2605350919 Heat ProtectorHeat Protector
-
3605350920 Heat ProtectorHeat Protector
-
4605350921 Heat ShieldHeat Shield
-
5605350922 Heat ProtectorHeat Protector
-
6605350923 LH Upper GrillLH Upper Grill
-
6605350924 RH Upper GrillRH Upper Grill
-
7605350925 LH Lower GrillLH Lower Grill
-
7605350926 RH Lower GrillRH Lower Grill
-
8605350927 LH GrillLH Grill
-
9414227300 ClipClip
-
10605350929 Heat ShieldHeat Shield
-
11605352546 Heat ProtectorHeat Protector
-
12517302152 Hood LatchHood Latch
-
13605351372 Retainer CableRetainer Cable
-
14M5442675 SpringSpring
-
15M20001 WasherWasher
-
16M5442870 Cable KeeperCable Keeper
-
17M36002 RivetRivet
-
18517302158 Headlamp Moulding, Deep BlackHeadlamp Moulding, Deep Black
-
19517302003 Windshield SupportWindshield Support
-
20570023800 Windshield LatchWindshield Latch
-
21517302631 HingeHinge
-
22207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
23M40381 Screw M6X20Screw M6X20
-
24M20117 WasherWasher
-
25232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
26234061410 Flat Washer M6Flat Washer M6
-
27M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
28M33200 Nut M6Nut M6
-
29517302179 BushingBushing
-
30M40003 Hex ScrewHex Screw
-
31243141640 Hex Screw M4.8 X 16Hex Screw M4.8 X 16
-
32605151831 Air Intake PlateAir Intake Plate
-
33517302043 Console NutConsole Nut
-
34M5447116 GasketGasket
-
35605353602 Indicator SupportIndicator Support
-
36241140060 Screw K40 X 10Screw K40 X 10
-
37414436800 Retainer CapRetainer Cap
-
38414436900 Snap Cap (Black)Snap Cap (Black)
-
39234042600 Flat Washer 4 mmFlat Washer 4 mm
-
40517124300 WasherWasher
-
41605351463 LH Hood SupportLH Hood Support
-
41605351464 RH Hood SupportRH Hood Support
-
42605251384 LH ConsoleLH Console
-
43605251385 RH ConsoleRH Console
-
44605251387 Console, MiddleConsole, Middle
-
45M36037 RivetRivet
-
46605152073 WindshieldWindshield
-
47605250583 RH MirrorRH Mirror
-
47605250582 LH MirrorLH Mirror
-
48605350577 RH AdaptorRH Adaptor
-
48605350576 LH AdaptorLH Adaptor
-
49M20037 WasherWasher
-
50232541414 Elastic Stop Nut M4 X 70Elastic Stop Nut M4 X 70
-
51414644300 DartDart
-
52605452657 BracketBracket
-
53605453896 PlugPlug
