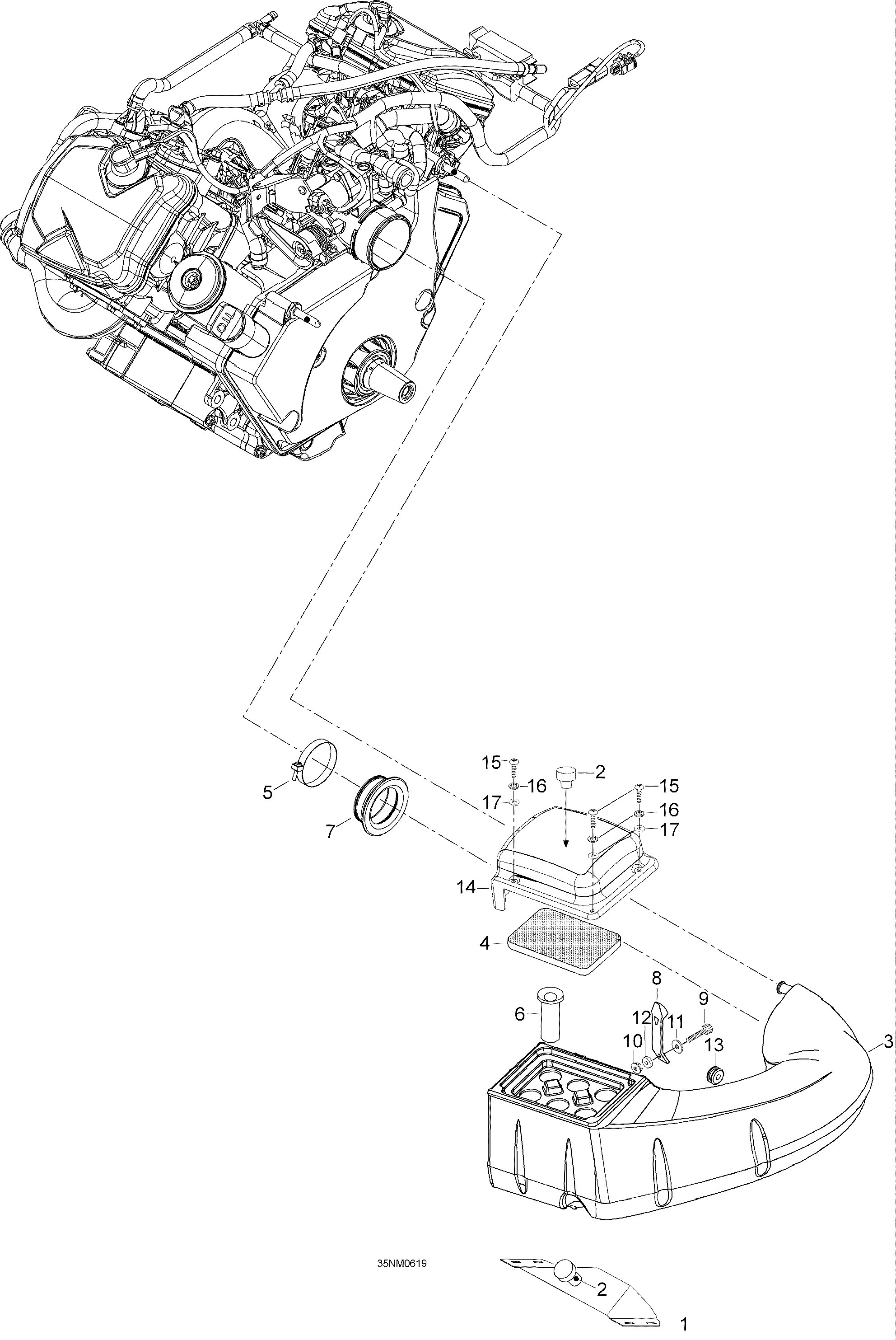

02- Air Silencer для BRP Ski-Doo Expedition V-1000 - 2006
-
№АртикулНазвание
-
1605351370 Air Intake SupportAir Intake Support
-
2570044700 Rubber PumperRubber Pumper
-
3605150516 Air IntakeAir Intake
-
4605350180 FilterFilter
-
5508000382 Gemi ClampGemi Clamp
-
6M5444445 PipePipe
-
7508000254 Intake AdaptatorIntake Adaptator
-
8M531955 Hood LatchHood Latch
-
9207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11M543392 WasherWasher
-
12M543417 SleeveSleeve
-
13570065500 GrommetGrommet
-
14605250565 Air Intake CoverAir Intake Cover
-
15M40070 ScrewScrew
-
16M20013 Lock WasherLock Washer
-
17M20008 Washer 5 mmWasher 5 mm
