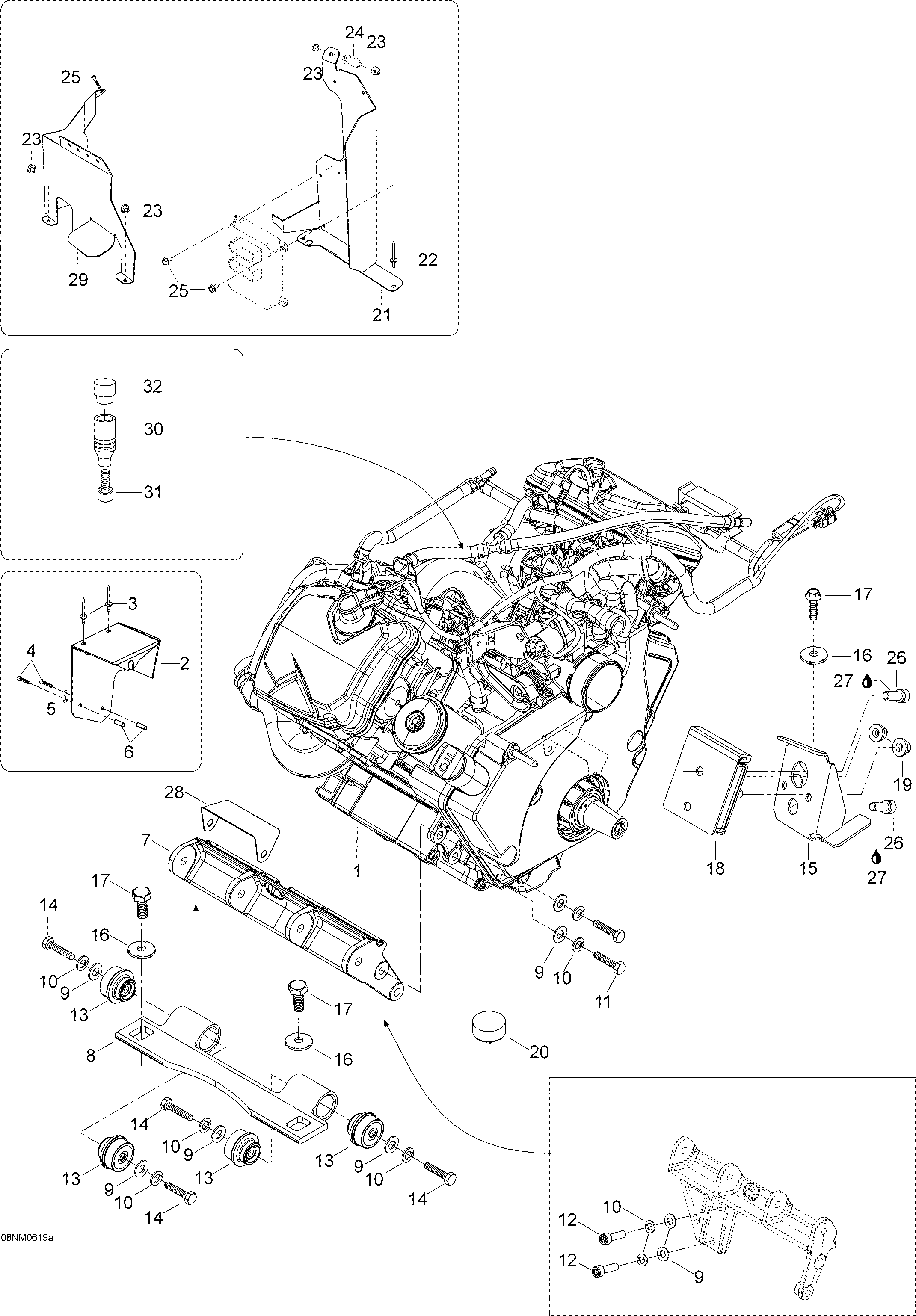

01- Engine And Engine Support для BRP Ski-Doo Expedition V-1000 - 2006
-
№АртикулНазвание
-
2605353770 Heat ProtectorHeat Protector
-
3M36108 RivetRivet
-
4605640003 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
5M20037 WasherWasher
-
6605453780 SleeveSleeve
-
7605250905 Engine Mount. PlateEngine Mount. Plate
-
8512059425 Front Engine SupportFront Engine Support
-
9234001410 Flat Washer 10 mmFlat Washer 10 mm
-
10234100602 Lock Spring Washer M10Lock Spring Washer M10
-
11205003544 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
12M40352 HexCap ScrewHexCap Screw
-
13512059691 Rubber MountRubber Mount
-
14207103044 Hex Screw M10 X 30Hex Screw M10 X 30
-
15605350835 Engine Rear SupportEngine Rear Support
-
16512056700 Lock WasherLock Washer
-
17M40335 ScrewScrew
-
18512059316 Rubber MountRubber Mount
-
19M33074 NutNut
-
20512059710 StopperStopper
-
21605250844 Module SupportModule Support
-
22M36083 RivetRivet
-
23M33200 Nut M6Nut M6
-
24M12419 Rubber MountRubber Mount
-
25M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
26M40053 ScrewScrew
-
27293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
28514053620 Front DeflectorFront Deflector
-
29605351330 Temperature ShieldTemperature Shield
-
30605350745 SupportSupport
-
31M40053 ScrewScrew
-
32570044700 Rubber PumperRubber Pumper
