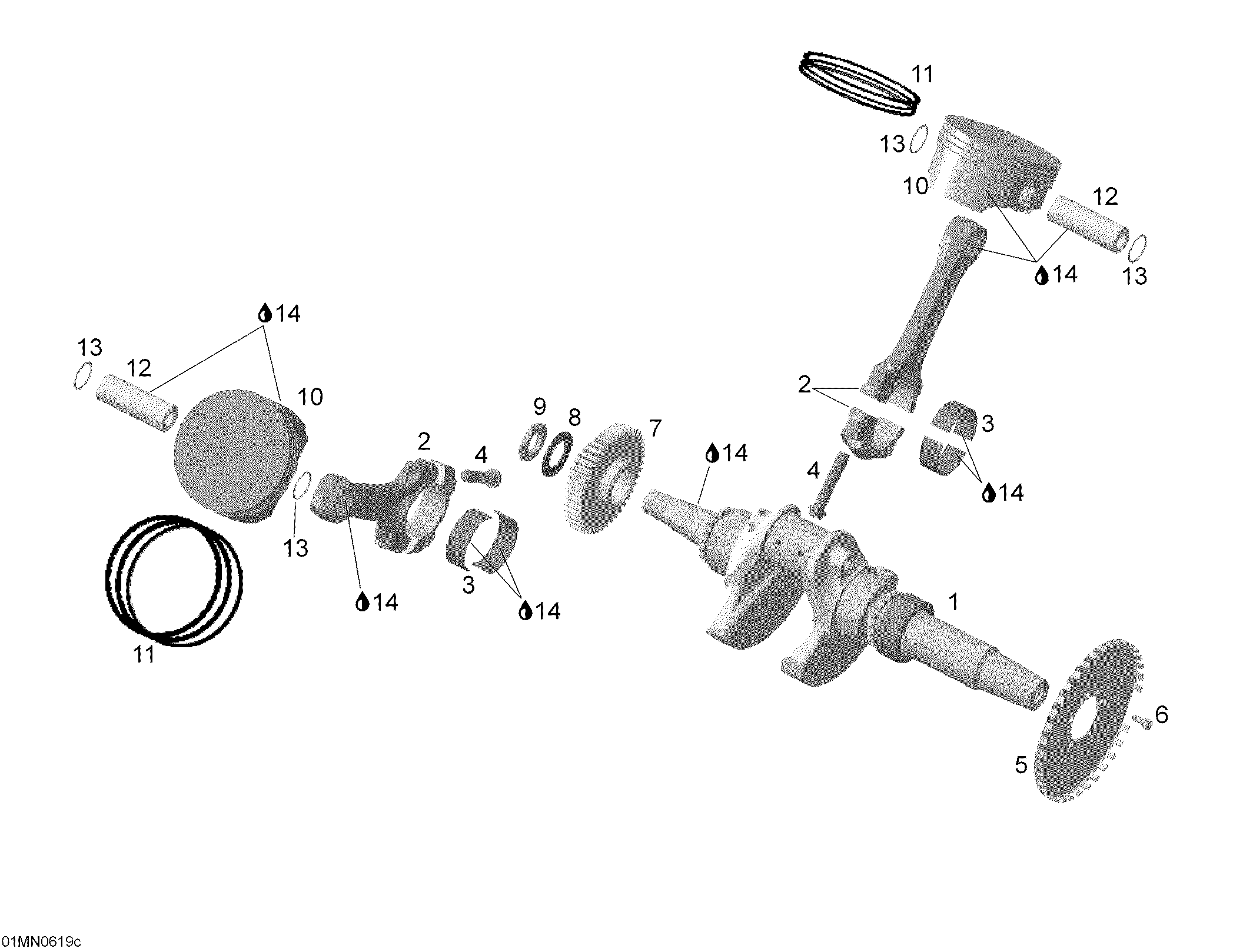

01- Crankshaft And Pistons для BRP Ski-Doo Expedition V-1000 - 2006
-
№АртикулНазвание
-
1420889441 Crankshaft Ass'Y. Includes 1 to 4Crankshaft Ass'Y. Includes 1 to 4
-
1420890560 Crankshaft Ass'yCrankshaft Ass'y
-
2420917546 Connecting Rod Ass'YConnecting Rod Ass'Y
-
3420933520 Half-BearingHalf-Bearing
-
4420640990 Connecting Rod M10 X 1Connecting Rod M10 X 1
-
5420966850 Trigger WheelTrigger Wheel
-
6420640541 Socket Head Screw M5 X 12Socket Head Screw M5 X 12
-
7420834446 Drive Gear 45 TeethDrive Gear 45 Teeth
-
8420245860 Spring WasherSpring Washer
-
9420242871 Hex Nut M22 X 1.5Hex Nut M22 X 1.5
-
10420296565 Piston Ass'y 99.96 mm, StandardPiston Ass'y 99.96 mm, Standard
-
11420890380 Piston Set Ring (standard)Piston Set Ring (standard)
-
12420216250 Piston PinPiston Pin
-
13420845580 Monohook CirclipMonohook Circlip
-
14293600054 Engine Oil 4 Strokes 10w40, 12 X 1 LiterEngine Oil 4 Strokes 10w40, 12 X 1 Liter
