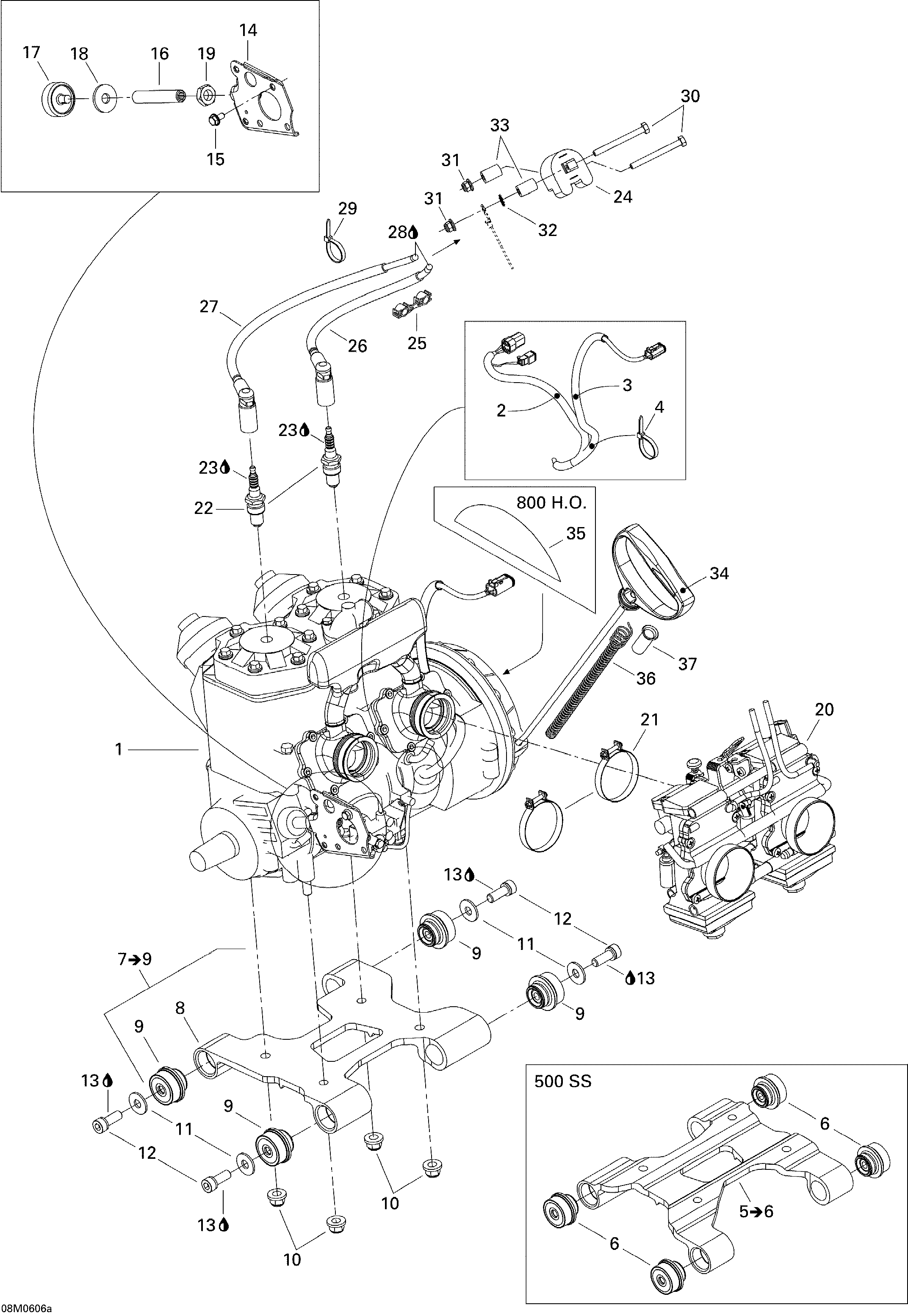

01- Engine 800, 1 для BRP Ski-Doo GSX 800 HO - 2006
-
№АртикулНазвание
-
1400702632 Engine 793 H.o.. 800 H.O.Engine 793 H.o.. 800 H.O.
-
2409901800 Tubing, 13 mmTubing, 13 mm
-
3415079900 Tubing, 10 mmTubing, 10 mm
-
4293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
7512060050 Engine Support Ass'y. Includes 7 to 9, 800 H.O.Engine Support Ass'y. Includes 7 to 9, 800 H.O.
-
8512060051 Engine SupportEngine Support
-
9512059691 Rubber MountRubber Mount
-
10233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
11506151251 WasherWasher
-
12205002544 Socket Head Screw M10 X 25Socket Head Screw M10 X 25
-
13413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
14512059840 PlatePlate
-
15207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
16250500007 Stopper ScrewStopper Screw
-
17512059610 StopperStopper
-
18512059057 WasherWasher
-
19232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
20403138778 Carburetor Kit Tm40-b322. 800 H.O.Carburetor Kit Tm40-b322. 800 H.O.
-
21512059835 Gemi ClampGemi Clamp
-
22415128524 Spark Plug, NGK Br9ecs, 0.8 mm. 800 H.O.Spark Plug, NGK Br9ecs, 0.8 mm. 800 H.O.
-
23293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
24512059968 Ignition CoilIgnition Coil
-
25410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
26512059695 Cable Ass'y, 300 mmCable Ass'y, 300 mm
-
27512059696 Cable Ass'y, 375 mmCable Ass'y, 375 mm
-
28293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30207066044 Hex Screw M6 X 60Hex Screw M6 X 60
-
31233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
32394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
33517203200 SpacerSpacer
-
34572084400 Starter GripStarter Grip
-
35512059893 Reflective Sheet. 800 H.O.Reflective Sheet. 800 H.O.
-
36512059535 Rope GuideRope Guide
-
37512059536 TubeTube
