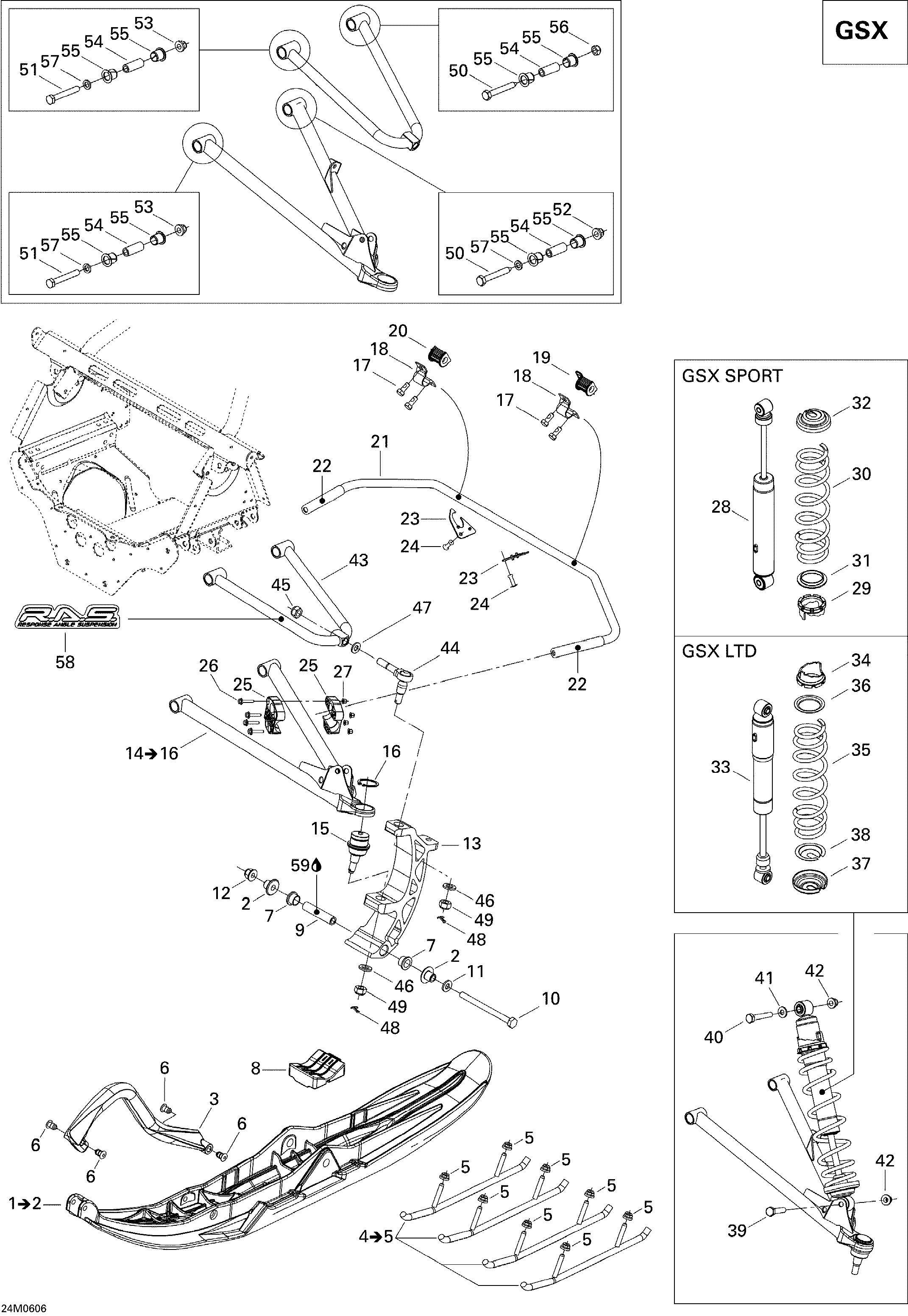

07- Front Suspension And Ski 800 для BRP Ski-Doo GSX 800 HO - 2006
-
№АртикулНазвание
-
1505071790 RH Pilot Ski Ass'y, Black. Includes 1 to 2, Sport & LTDRH Pilot Ski Ass'y, Black. Includes 1 to 2, Sport & LTD
-
1505071792 RH Pilot Ski Ass'y, Labrador Blue. Includes 1 to 2, LTDRH Pilot Ski Ass'y, Labrador Blue. Includes 1 to 2, LTD
-
1505071791 LH Pilot Ski Ass'y, Black. Includes 1 to 2, Sport & LTDLH Pilot Ski Ass'y, Black. Includes 1 to 2, Sport & LTD
-
1505071794 LH Pilot Ski Ass'y, Labrador Blue. Includes 1 to 2, LTDLH Pilot Ski Ass'y, Labrador Blue. Includes 1 to 2, LTD
-
2505071781 CushionCushion
-
3505071556 Handle, Full Moon, B-211. LTDHandle, Full Moon, B-211. LTD
-
4860511400 Carbide Runner Kit. Includes 4 to 5Carbide Runner Kit. Includes 4 to 5
-
5233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
6505071812 RetainerRetainer
-
7505070954 CushionCushion
-
8505071779 Ski StopperSki Stopper
-
9506133300 SpacerSpacer
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11732900049 WasherWasher
-
12732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
13505071232 Ski LegSki Leg
-
14860512500 RH Lower Arm Ass'y. Includes 14 to 16RH Lower Arm Ass'y. Includes 14 to 16
-
14860512400 LH Lower Arm Ass'y. Includes 14 to 16LH Lower Arm Ass'y. Includes 14 to 16
-
15505071891 Ball JointBall Joint
-
16293370035 CirclipCirclip
-
17250000118 Hex Screw With NylonHex Screw With Nylon
-
18506095800 ClampClamp
-
19505070664 LH Torsion Bar BushingLH Torsion Bar Bushing
-
20505070912 RH Torsion Bar BushingRH Torsion Bar Bushing
-
21505070948 StabilisatorStabilisator
-
22505071039 Sway Bar EndSway Bar End
-
23505071253 PlugPlug
-
24293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
25505071268 RH Slider HalfRH Slider Half
-
25505071269 LH Slider HalfLH Slider Half
-
26207652544 Hex Flange Screw M5 X 25Hex Flange Screw M5 X 25
-
27233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
33505071490 Front Shock. LTDFront Shock. LTD
-
34505070150 Cam 45°. LTDCam 45°. LTD
-
35505071842 Painted Spring. LTDPainted Spring. LTD
-
36517184300 Spring Guide. LTDSpring Guide. LTD
-
37503140600 Spring Stopper. LTDSpring Stopper. LTD
-
38503141600 Cap. LTDCap. LTD
-
39207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
40207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
41503189564 WasherWasher
-
42233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
43505071756 Upper ArmUpper Arm
-
44505071863 Upper Ball JointUpper Ball Joint
-
45250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
46234021410 Flat Washer 12 mmFlat Washer 12 mm
-
47503189276 WasherWasher
-
48211400017 Cotter PinCotter Pin
-
49250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
50250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
51250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
52250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
53250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
54505070567 BushingBushing
-
55505070566 Arm BushingArm Bushing
-
56232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
57503189564 WasherWasher
-
58516002747 R.a.s. Suspension DecalR.a.s. Suspension Decal
-
59219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
