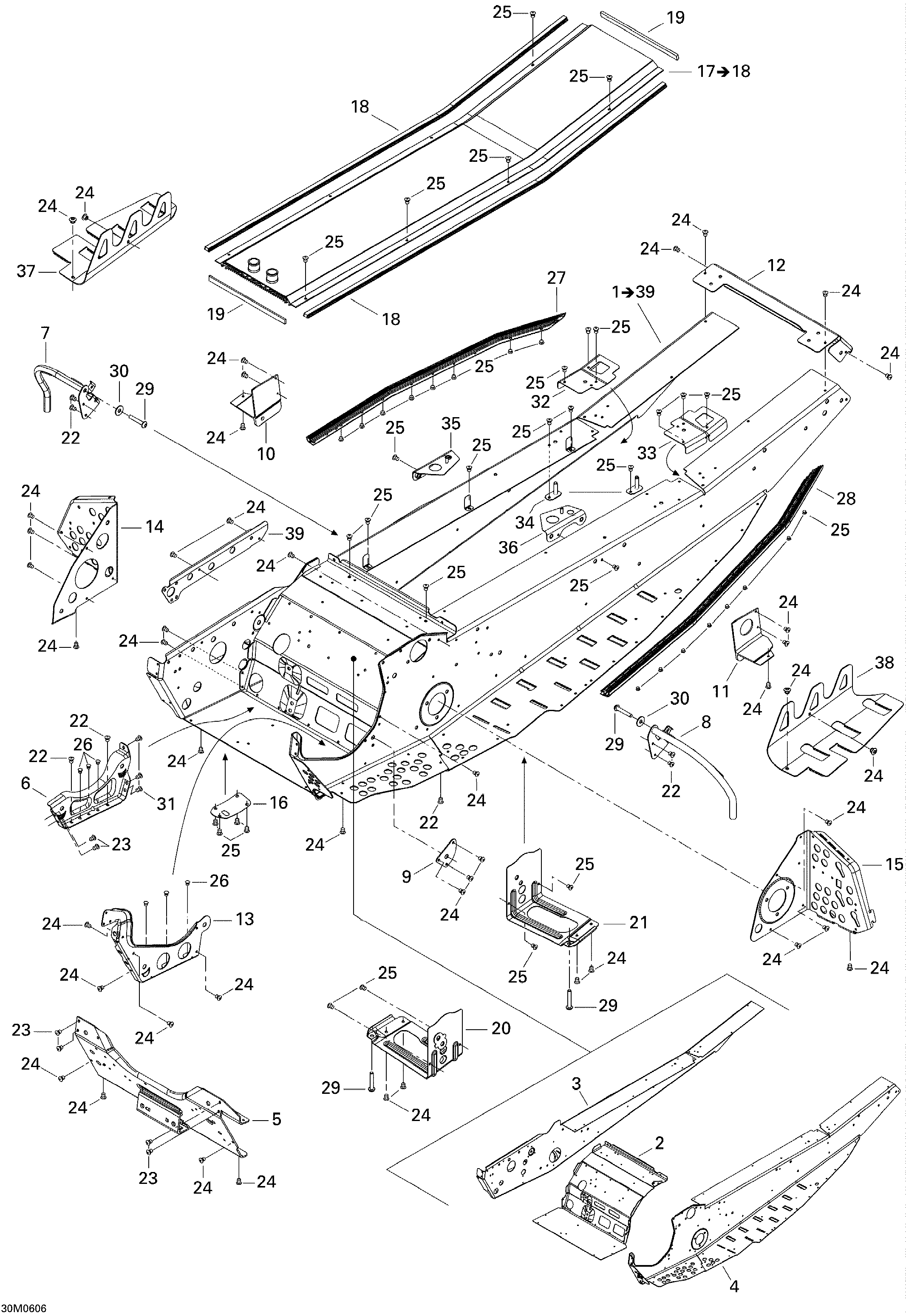

09- Frame для BRP Ski-Doo GSX 800 HO - 2006
-
№АртикулНазвание
-
1415129145 Frame. Includes 1 to 39Frame. Includes 1 to 39
-
3518324485 RH FrameRH Frame
-
4518324486 LH FrameLH Frame
-
5518323239 Front PanFront Pan
-
6518323346 Engine Support, BlackEngine Support, Black
-
7518324162 RH Toe Hold SupportRH Toe Hold Support
-
8518324163 LH Toe Hold SupportLH Toe Hold Support
-
9518323507 Outer ReinforcementOuter Reinforcement
-
10518324488 RH Slide BracketRH Slide Bracket
-
11518324489 LH Slide BracketLH Slide Bracket
-
12518324409 Rear CapRear Cap
-
13518323241 Inner Reinforcement, BlackInner Reinforcement, Black
-
14518323805 RH Footrest ReinforcementRH Footrest Reinforcement
-
15518324527 LH Footrest ReinforcementLH Footrest Reinforcement
-
16518324169 PlatePlate
-
17518324242 Rear Radiator. Includes 17 to 18Rear Radiator. Includes 17 to 18
-
18415012300 Radiator ProtectorRadiator Protector
-
19293200096 GasketGasket
-
20518324634 RH Reinforcement, BlackRH Reinforcement, Black
-
21518324635 LH Reinforcement, BlackLH Reinforcement, Black
-
22390909200 Avex RivetAvex Rivet
-
23390909100 Avex RivetAvex Rivet
-
24390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
25390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
26390910300 Rivet HenrobRivet Henrob
-
27518324953 RH RollerRH Roller
-
28518324954 LH RollerLH Roller
-
29205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
30234082410 Flat Washer M8Flat Washer M8
-
31293150096 RivetRivet
-
32518324431 RH Frame ReinforcementRH Frame Reinforcement
-
33518324432 LH Frame ReinforcementLH Frame Reinforcement
-
34518322791 Tank BracketTank Bracket
-
35518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
36518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
37518323307 RH Tunnel LinerRH Tunnel Liner
-
38518323309 LH Tunnel LinerLH Tunnel Liner
-
39518323328 RH Tunnel StiffenerRH Tunnel Stiffener
