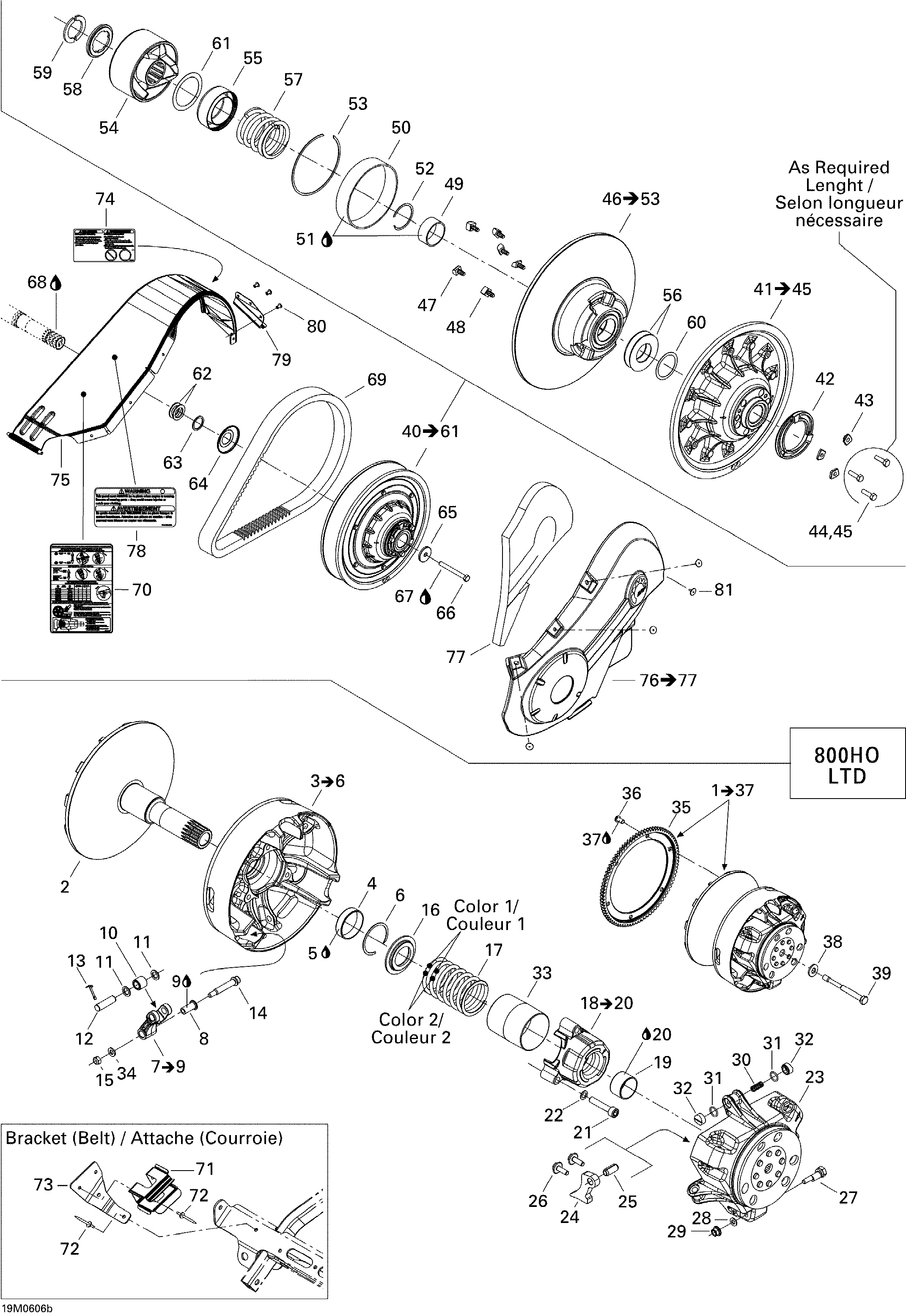

05- Pulley System 800HO для BRP Ski-Doo GSX 800 HO - 2006
-
№АртикулНазвание
-
2417222167 Fixed FlangeFixed Flange
-
3417222171 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'y. Includes 7 to 9Lever Ass'y. Includes 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417003900 Roller Ass'yRoller Ass'y
-
11417004302 Stopper WasherStopper Washer
-
12417222594 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417222028 Screw Ass'yScrew Ass'y
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16417222312 Spring SeatSpring Seat
-
17414817700 Spring, Blue/greenSpring, Blue/green
-
18417007500 Spring Cover Ass'y. Includes 18 to 20Spring Cover Ass'y. Includes 18 to 20
-
19417009204 BushingBushing
-
20413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
21205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
22250200009 Lock Washer 8 mmLock Washer 8 mm
-
23417222213 Governor CupGovernor Cup
-
24417222546 Ramp 414Ramp 414
-
25250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
26250000059 Hex Flanged Scew M6 X 18Hex Flanged Scew M6 X 18
-
27417005500 Calibration ScrewCalibration Screw
-
28417005600 WasherWasher
-
29233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
30417005700 SpringSpring
-
31732401030 O-RingO-Ring
-
32417222362 Slider ShoeSlider Shoe
-
33417009205 GuardGuard
-
34234061410 Flat Washer M6Flat Washer M6
-
35417222829 Ring GearRing Gear
-
36236281684 Hex Screw M8 X 16Hex Screw M8 X 16
-
37293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
38250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
39417120000 Drive Pulley BoltDrive Pulley Bolt
-
41417126807 Fixed Flange Ass'y. Includes 41 to 45Fixed Flange Ass'y. Includes 41 to 45
-
42415005800 Adjustment RingAdjustment Ring
-
43415005900 Adjustment ShimAdjustment Shim
-
44207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
45207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
46417126909 Sliding Flange Ass'y. Includes 46 to 53Sliding Flange Ass'y. Includes 46 to 53
-
47417126373 Rear Cam Slider ShoeRear Cam Slider Shoe
-
48417126374 Front Cam Slider ShoeFront Cam Slider Shoe
-
49417126901 BushingBushing
-
50417126902 BushingBushing
-
51413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
52371911200 CirclipCirclip
-
53417126878 CirclipCirclip
-
54417126721 Cam Ass'YCam Ass'Y
-
55417126381 GuardGuard
-
56504099600 Stopper WasherStopper Washer
-
57417126688 Spring, GreenSpring, Green
-
58417126733 SpacerSpacer
-
59417126734 Half KeyHalf Key
-
60504112300 ShimShim
-
61417126322 Swivel AbutmentSwivel Abutment
-
62417300252 SpacerSpacer
-
62417300265 SpacerSpacer
-
63504112000 ShimShim
-
64417300238 ProtectorProtector
-
65517302322 Strength WasherStrength Washer
-
66207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
67293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
68293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
69417300166 Drive BeltDrive Belt
-
70516002616 Decal, Suspension AdjustmentDecal, Suspension Adjustment
-
71517281905 BracketBracket
-
72390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
73417300282 BracketBracket
-
74516002674 Emergency Starting LabelEmergency Starting Label
-
75417300213 Belt GuardBelt Guard
-
76417300301 Side Protector Ass'y. Includes 76 to 77Side Protector Ass'y. Includes 76 to 77
-
77417300246 FoamFoam
-
78516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
79417300216 Belt Guard BracketBelt Guard Bracket
-
80390909200 Avex RivetAvex Rivet
-
81293150103 Pop Rivet 3/16''Pop Rivet 3/16''
