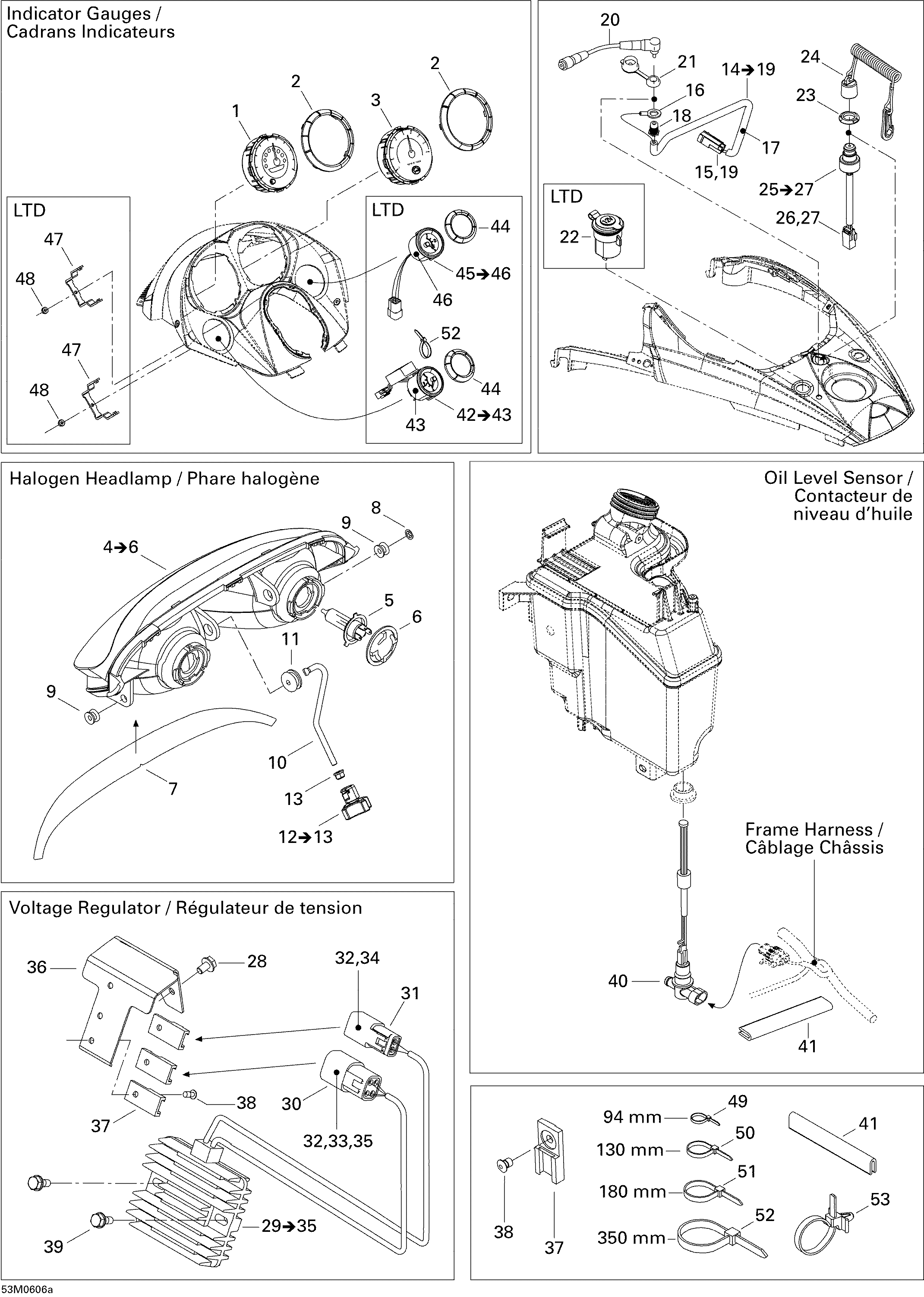

10- Electrical Accessories 800, 1 для BRP Ski-Doo GSX 800 HO - 2006
-
№АртикулНазвание
-
1515176302 SpeedometerSpeedometer
-
2515176242 Gauge RingGauge Ring
-
3515176303 TachometerTachometer
-
4515176311 Halogen Headlamp Ass'y. Includes 4 to 6Halogen Headlamp Ass'y. Includes 4 to 6
-
5515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
6515176385 Bulb HolderBulb Holder
-
7516001328 Headlamp DecalHeadlamp Decal
-
8732610072 Push NutPush Nut
-
9515175760 Headlamp BushingHeadlamp Bushing
-
10515175521 Adjuster RodAdjuster Rod
-
11415100800 GrommetGrommet
-
12515175975 Handle. Includes 12 to 13Handle. Includes 12 to 13
-
13233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
14515175799 Visor Plug Harness. Includes 14 to 19Visor Plug Harness. Includes 14 to 19
-
15515175232 Male TerminalMale Terminal
-
16515175172 Open BarrelOpen Barrel
-
17515175332 Low Temperature Tubing, VinylLow Temperature Tubing, Vinyl
-
18415096100 Visor PlugVisor Plug
-
19515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
20515175851 ExtensionExtension
-
21572103300 CapCap
-
22861507200 Power Outlet Kit, 12 Volts. LTDPower Outlet Kit, 12 Volts. LTD
-
23278000508 Safe Nut SwitchSafe Nut Switch
-
24515176446 DESS CapDESS Cap
-
25515175797 Dess Switch. Includes 25 to 27Dess Switch. Includes 25 to 27
-
26515175232 Male TerminalMale Terminal
-
27515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
28210261080 Hex Forming Screw M6 X 10Hex Forming Screw M6 X 10
-
29515175968 Voltage Regulator. Includes 29 to 35Voltage Regulator. Includes 29 to 35
-
30278001477 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
31278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
32515175568 Male TerminalMale Terminal
-
33278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
34278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
35293000052 Sealing CapSealing Cap
-
36515176191 Housing SupportHousing Support
-
37515175917 ClipClip
-
38293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
39210262080 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
40515176327 Oil Level SensorOil Level Sensor
-
41509000263 TrimTrim
-
42515176214 Temperature Gauge. LTD, Includes 42 to 43Temperature Gauge. LTD, Includes 42 to 43
-
43415128974 Gauge Bulb. LTDGauge Bulb. LTD
-
44515176216 Ring Gauge. LTDRing Gauge. LTD
-
45515176215 Fuel Gauge. LTD, Includes 45 to 46Fuel Gauge. LTD, Includes 45 to 46
-
46415128974 Gauge Bulb. LTDGauge Bulb. LTD
-
47515176235 Case Holder. LTDCase Holder. LTD
-
48515176236 Lock Nut. LTDLock Nut. LTD
-
49293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
50293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
51414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
52293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
53293750009 Tie Rap 160 mmTie Rap 160 mm
