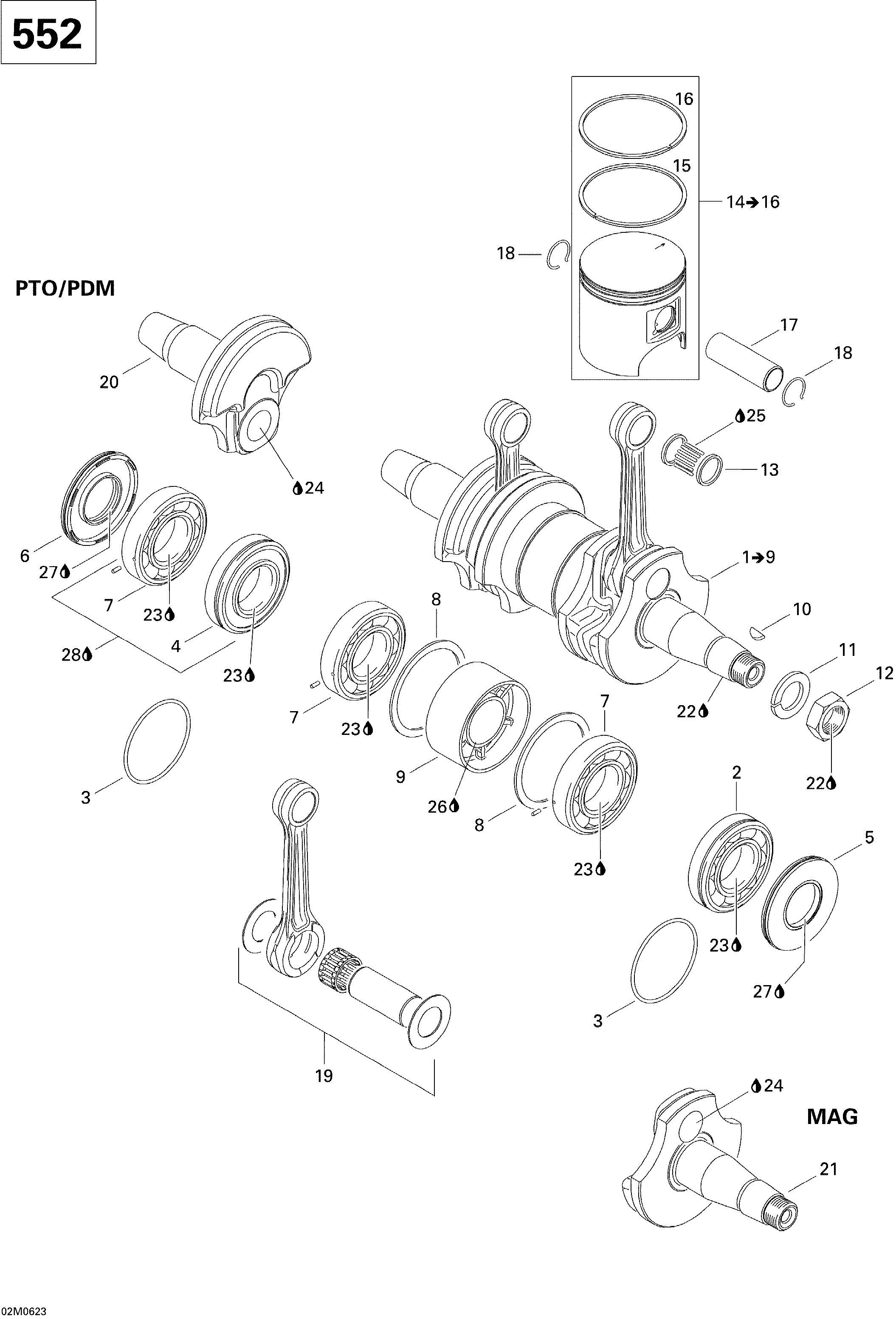

01- Crankshaft And Pistons 552 для BRP Ski-Doo Summit 550F - 2006
-
№АртикулНазвание
-
1420889062 CrankshaftCrankshaft
-
2420832571 Ball BearingBall Bearing
-
3293300022 O-Ring 64 mmO-Ring 64 mm
-
4420832639 Ball BearingBall Bearing
-
5420831952 Oil SealOil Seal
-
6420831955 Oil SealOil Seal
-
7420832573 Ball BearingBall Bearing
-
8420927710 Retaining DiskRetaining Disk
-
9420850149 Labyrinth SleeveLabyrinth Sleeve
-
10420246055 Woodruff KeyWoodruff Key
-
11420945759 Lock Washer 22 mmLock Washer 22 mm
-
12420842234 Hex Nut M22Hex Nut M22
-
13420832420 Needle BearingNeedle Bearing
-
14420889050 Piston Assy 75.86 mm. Includes 14 to 16Piston Assy 75.86 mm. Includes 14 to 16
-
14420889051 Piston Assy 76.11 mm. Includes 14 to 16Piston Assy 76.11 mm. Includes 14 to 16
-
14420889052 Piston Assy 76.36 mm. Includes 14 to 16Piston Assy 76.36 mm. Includes 14 to 16
-
15420815300 Rectangular Ring 76 mmRectangular Ring 76 mm
-
15420815301 Rectangular Ring 76.25 mmRectangular Ring 76.25 mm
-
15420815302 Rectangular Ring 76.50 mmRectangular Ring 76.50 mm
-
16420815155 Semi-trapez Ring, 76 mmSemi-trapez Ring, 76 mm
-
16420815156 Semi-trapez Ring, 76.25 mmSemi-trapez Ring, 76.25 mm
-
16420815157 Semi-trapez Ring 76.50 mmSemi-trapez Ring 76.50 mm
-
17420916405 Piston PinPiston Pin
-
18420845106 Piston CirclipPiston Circlip
-
19420889064 Rod Repair KitRod Repair Kit
-
20420819181 Crankshaft PTO SideCrankshaft PTO Side
-
21420819210 Crankshaft Mag SideCrankshaft Mag Side
-
22293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
23293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
24413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
25413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
-
27420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
-
28293550021 Isoflex Grease, 50 GIsoflex Grease, 50 G
