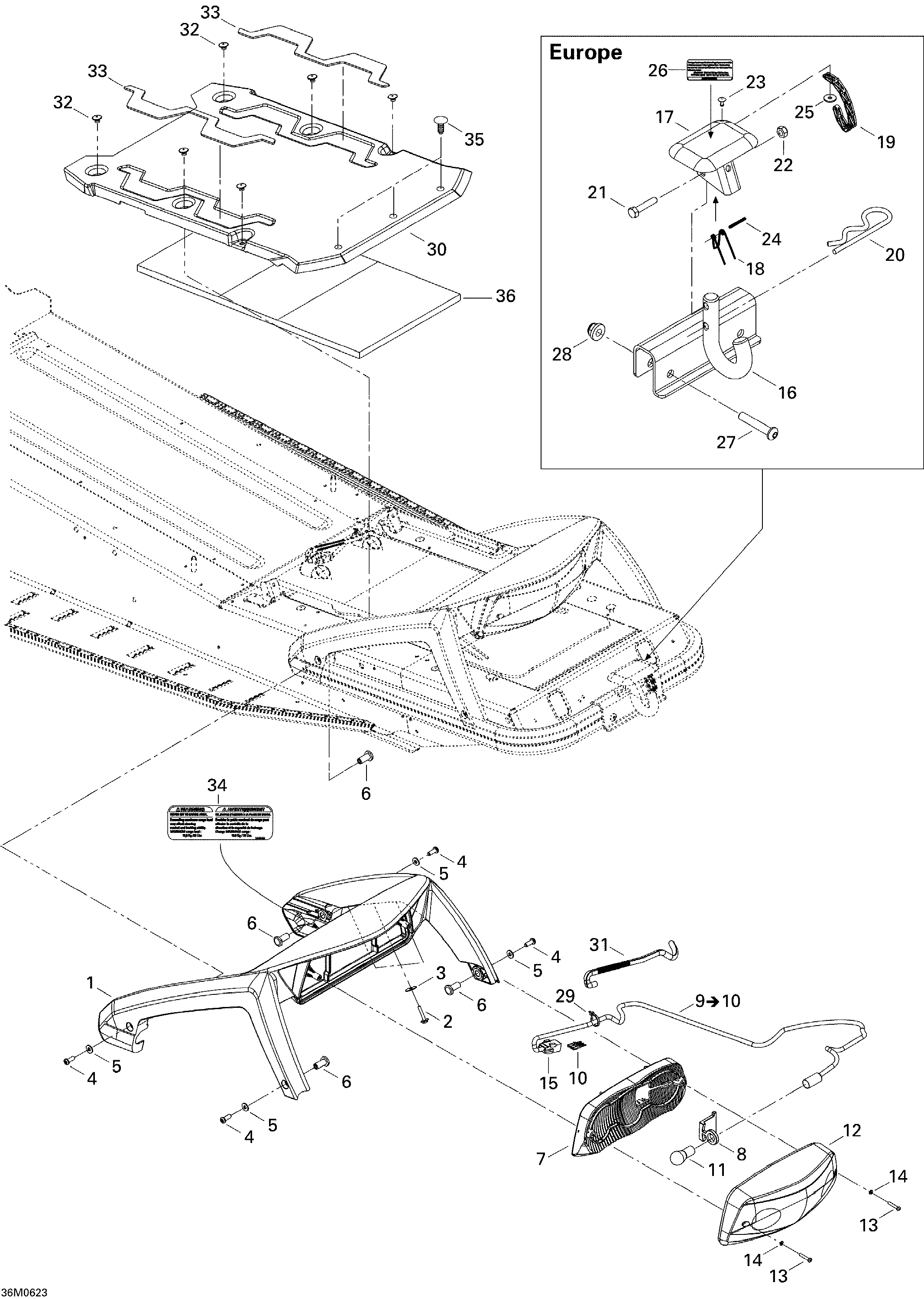

09- Luggage Rack для BRP Ski-Doo Summit 550F - 2006
-
№АртикулНазвание
-
1511000425 Luggage RackLuggage Rack
-
2250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
3250200040 Flat WasherFlat Washer
-
4250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
5250200039 Flat WasherFlat Washer
-
6511000398 InsertInsert
-
7510004442 ReflectorReflector
-
8511000431 Bulb SupportBulb Support
-
9511000466 Bulb Socket. Includes 9 to 10Bulb Socket. Includes 9 to 10
-
10515175232 Male TerminalMale Terminal
-
11410504100 Tail Lamp BulbTail Lamp Bulb
-
12511000315 LensLens
-
13209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
14414516400 WasherWasher
-
15515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
16511000354 Hitch, Black. EuropeHitch, Black. Europe
-
17517152700 Hitch Protector. EuropeHitch Protector. Europe
-
18517152800 Spring. EuropeSpring. Europe
-
20114045200 Hair Pin. EuropeHair Pin. Europe
-
21207063044 Hex Screw M6 X 30. EuropeHex Screw M6 X 30. Europe
-
22232561414 Elastic Stop Nut M6. EuropeElastic Stop Nut M6. Europe
-
23390409400 Pop Rivet 5/32'', Black. EuropePop Rivet 5/32'', Black. Europe
-
24732804000 Spring Pin M3 X 24. EuropeSpring Pin M3 X 24. Europe
-
26516003037 Security Label. EuropeSecurity Label. Europe
-
27205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
28233281414 Elastic Flanged Nut M8. EuropeElastic Flanged Nut M8. Europe
-
29293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
30511000436 Radiator CoverRadiator Cover
-
31515175442 Tubing, 6 mmTubing, 6 mm
-
32293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
33511000396 CarpetCarpet
-
34516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
35293730006 Black DartBlack Dart
-
36511000364 Radiator Cover ShimRadiator Cover Shim
