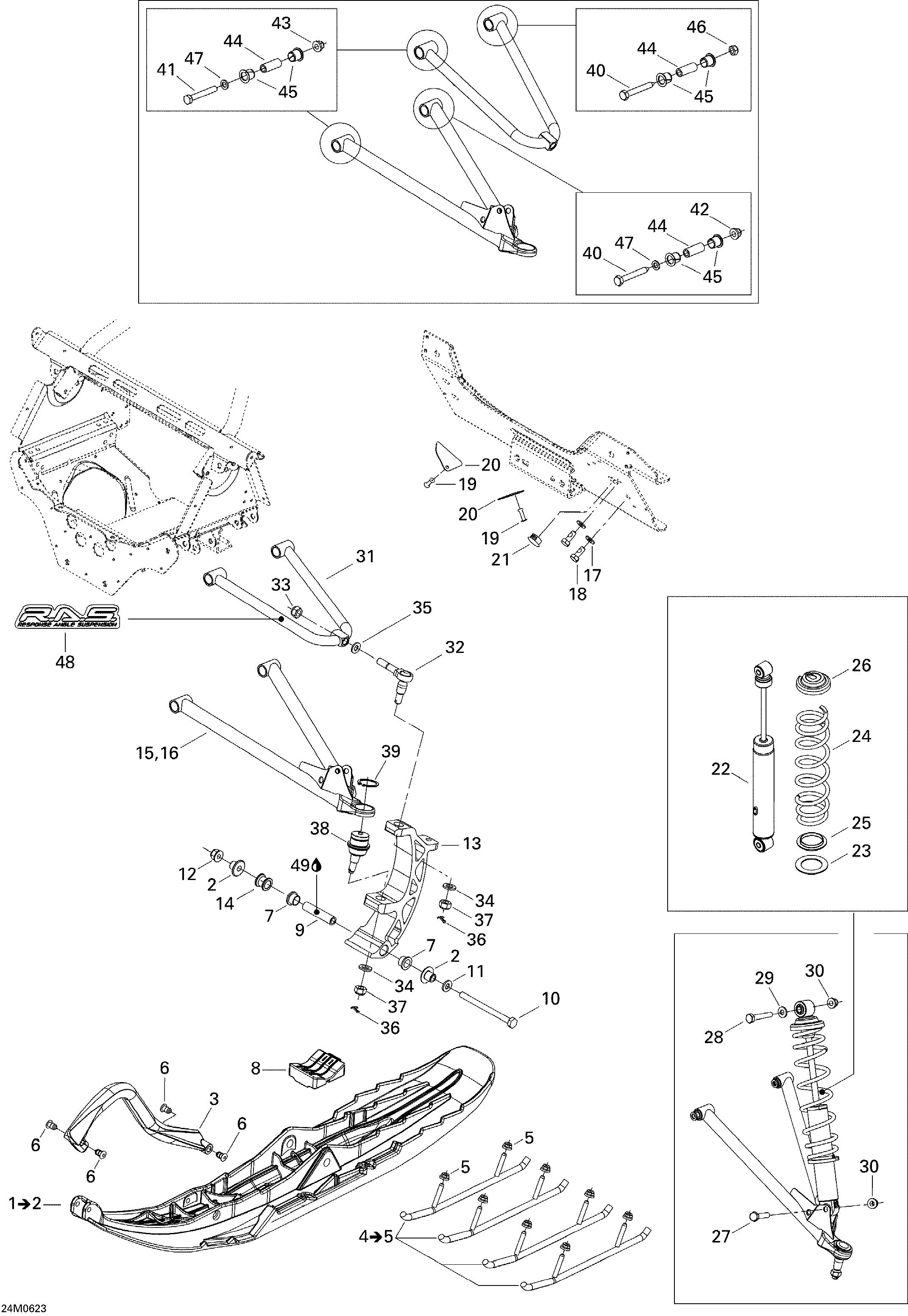

07- Front Suspension And Ski для BRP Ski-Doo Summit 550F - 2006
-
№АртикулНазвание
-
1505071775 RH Pilot Ski Ass'y, Black. Includes 1 to 2RH Pilot Ski Ass'y, Black. Includes 1 to 2
-
1505071777 LH Pilot Ski Ass'y, Black. Includes 1 to 2LH Pilot Ski Ass'y, Black. Includes 1 to 2
-
2505071781 CushionCushion
-
3505070963 Handle, Black, B-160Handle, Black, B-160
-
4860511400 Carbide Runner Kit. Includes 4 to 5Carbide Runner Kit. Includes 4 to 5
-
5233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
6505071812 RetainerRetainer
-
7505070954 CushionCushion
-
8505071779 Ski StopperSki Stopper
-
9506133300 SpacerSpacer
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11732900049 WasherWasher
-
12732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
13505071248 Ski LegSki Leg
-
14505071215 SpacerSpacer
-
15860512900 RH Lower ArmRH Lower Arm
-
16860512800 LH Lower ArmLH Lower Arm
-
17234081410 Flat Washer 8 mmFlat Washer 8 mm
-
18250000118 Hex Screw With NylonHex Screw With Nylon
-
19293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
20505071131 Aluminium PlugAluminium Plug
-
21572072100 CapCap
-
22505071459 Front ShockFront Shock
-
23505070401 WasherWasher
-
24505071836 SpringSpring
-
25503187500 Spring GuideSpring Guide
-
26503140600 Spring StopperSpring Stopper
-
27207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
28207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
29503189564 WasherWasher
-
30233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
31505071816 Upper ArmUpper Arm
-
32505071863 Upper Ball JointUpper Ball Joint
-
33250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
34234021410 Flat Washer 12 mmFlat Washer 12 mm
-
35503189276 WasherWasher
-
36211400017 Cotter PinCotter Pin
-
37250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
38505071891 Ball JointBall Joint
-
39293370035 CirclipCirclip
-
40250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
41250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
42250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
43250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
44505070567 BushingBushing
-
45505070566 Arm BushingArm Bushing
-
46232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
47503189564 WasherWasher
-
48516002747 R.a.s. Suspension DecalR.a.s. Suspension Decal
-
49219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
