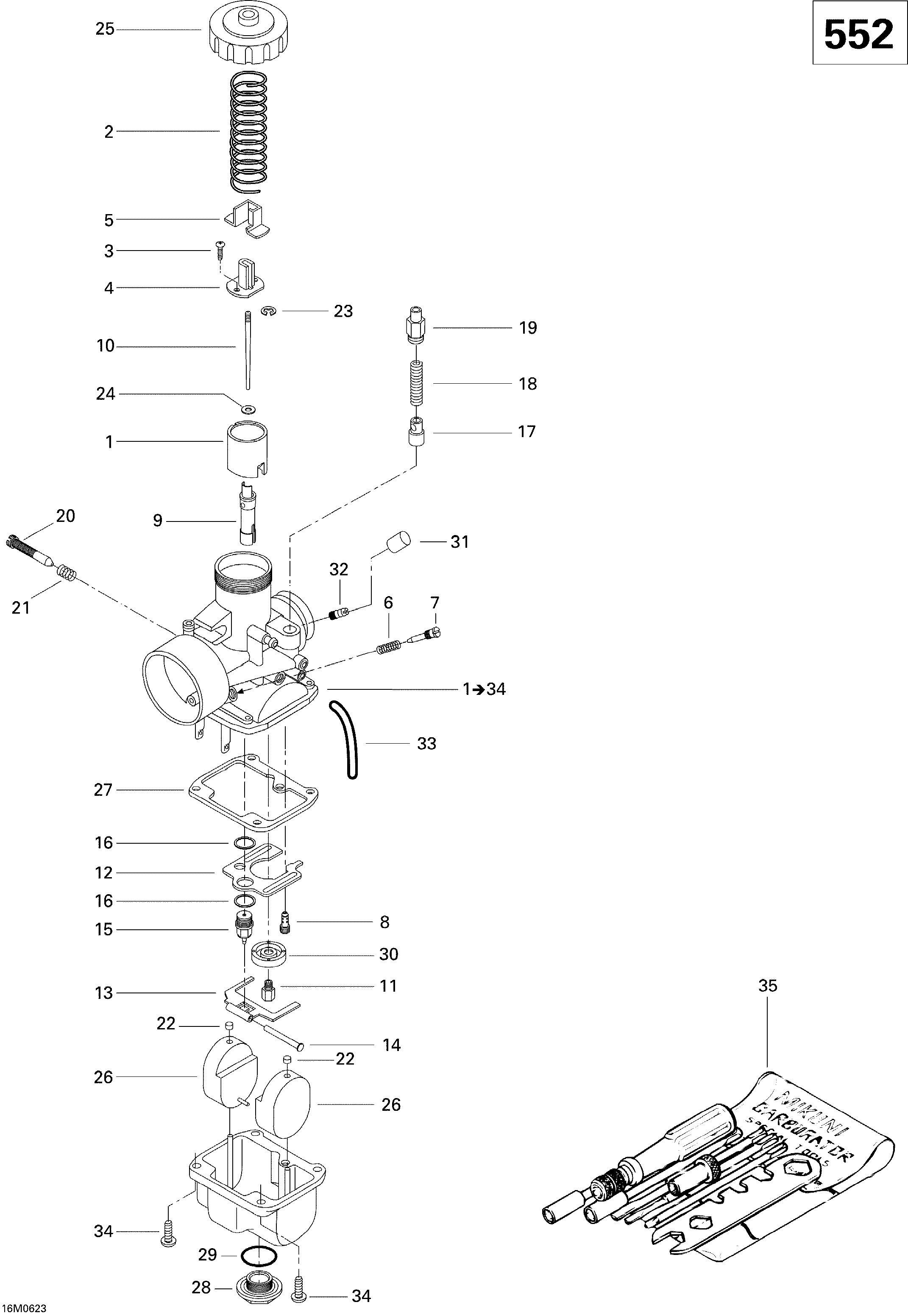

02- Carburetor 552 для BRP Ski-Doo Summit 550F - 2006
-
№АртикулНазвание
-
1403138772 Carburetor Vm-34-617. Includes 1 to 34 / EuropeCarburetor Vm-34-617. Includes 1 to 34 / Europe
-
1403138773 Carburator Vm-34-616. Includes 1 to 34Carburator Vm-34-616. Includes 1 to 34
-
1404128400 Piston Valve 2.5Piston Valve 2.5
-
2404154800 SpringSpring
-
3404121300 Screw With WasherScrew With Washer
-
4404161987 PackingPacking
-
5404122100 CoverCover
-
6404139800 SpringSpring
-
7404149000 Air ScrewAir Screw
-
8404109400 Pilot Jet 45Pilot Jet 45
-
9404162072 Needle Jet 159-p-7Needle Jet 159-p-7
-
10404162032 Needle J8-6bcy40Needle J8-6bcy40
-
11404100600 Main Jet 260. EuropeMain Jet 260. Europe
-
11404111200 Main Jet 220Main Jet 220
-
12404109600 BaffleBaffle
-
13404107600 Float LeverFloat Lever
-
14404103300 Lever PinLever Pin
-
15404147500 Needle Valve 1.2Needle Valve 1.2
-
16404101600 Seat WasherSeat Washer
-
17404161986 Plunger Ass'yPlunger Ass'y
-
18404127400 SpringSpring
-
19404161100 Guide HolderGuide Holder
-
20404125200 Throttle ScrewThrottle Screw
-
21404101700 SpringSpring
-
22404105800 CapCap
-
23404152400 E-ringE-ring
-
24404117000 PackingPacking
-
25404103700 CoverCover
-
26404161972 FloatFloat
-
27404104200 GasketGasket
-
28404107400 Drain Plug ScrewDrain Plug Screw
-
29404107300 O-RingO-Ring
-
30404110900 Baffle RingBaffle Ring
-
31404156600 CapCap
-
32404153400 NippleNipple
-
33404161888 HoseHose
-
34404102000 Screw With Lock WasherScrew With Lock Washer
-
35404112000 Tool KitTool Kit
