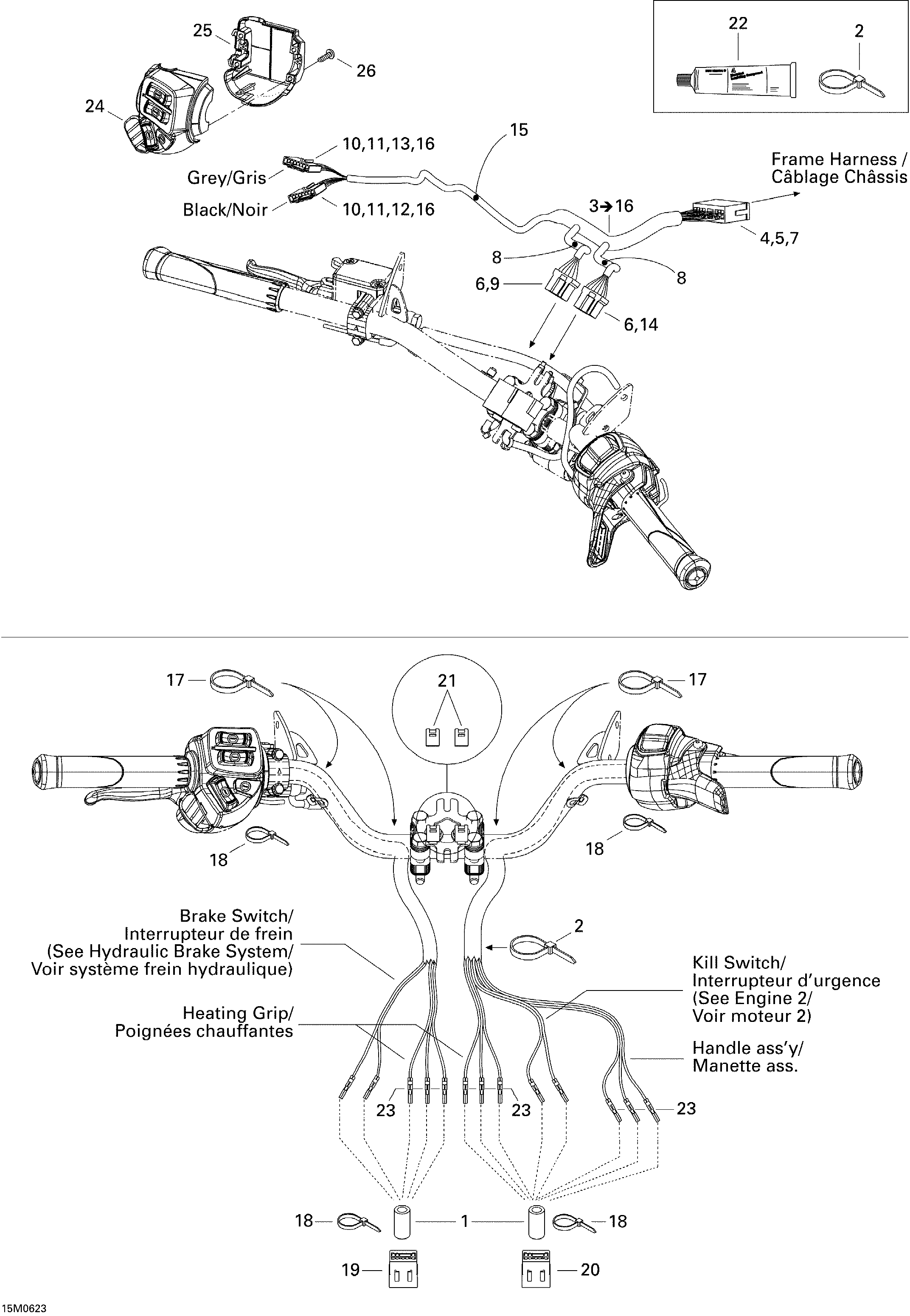

10- Steering Wiring Harness для BRP Ski-Doo Summit 550F - 2006
-
№АртикулНазвание
-
1515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3515176309 Steering Wiring Harness. Includes 3 to 16Steering Wiring Harness. Includes 3 to 16
-
4515175232 Male TerminalMale Terminal
-
5515175273 Male TerminalMale Terminal
-
6515175231 Female TerminalFemale Terminal
-
7515175352 Male Terminal Housing, 13 CircuitsMale Terminal Housing, 13 Circuits
-
8415079900 Tubing, 10 mmTubing, 10 mm
-
9515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
10515175808 Female TerminalFemale Terminal
-
11515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
12515175807 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
13515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
14515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
15515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
16515175941 Female TerminalFemale Terminal
-
17414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
18293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
19515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
20515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
21515175944 Housing SupportHousing Support
-
22293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
23515175232 Male TerminalMale Terminal
-
24515176187 LH Switch HousingLH Switch Housing
-
25515175926 Housing Switch PlateHousing Switch Plate
-
26250000100 ScrewScrew
