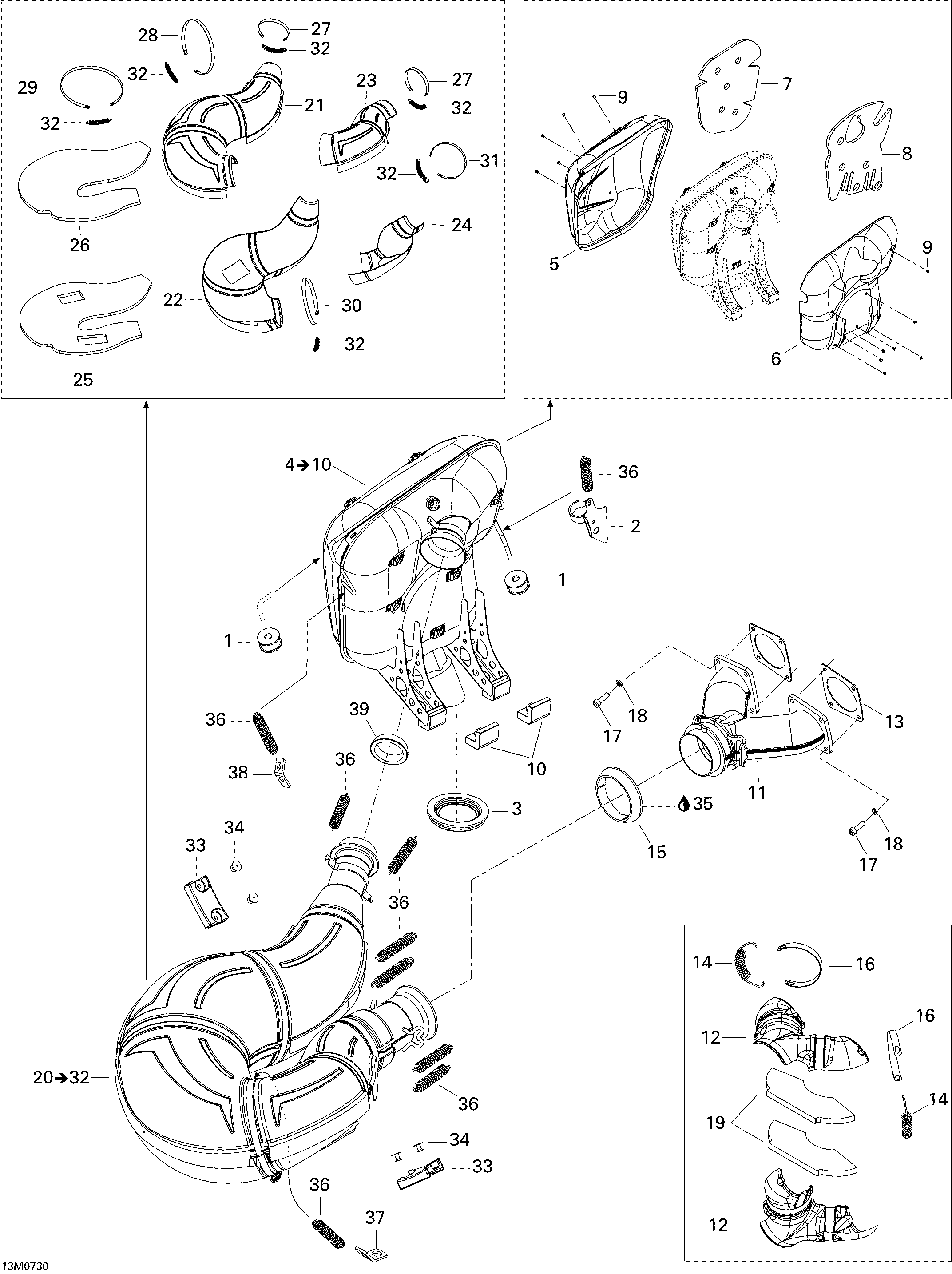

01- Exhaust System для BRP Ski-Doo MACH Z Adrenaline - 2007
-
№АртикулНазвание
-
1707600012 Anti-Vibration RubberAnti-Vibration Rubber
-
2514053810 Muffler BracketMuffler Bracket
-
3514053935 Exhaust GrommetExhaust Grommet
-
4514054236 Muffler Ass'y. Includes 4 to 10Muffler Ass'y. Includes 4 to 10
-
5514054173 RH Heat DeflectorRH Heat Deflector
-
6514053778 LH Heat DeflectorLH Heat Deflector
-
7514053904 RH Insulating WoolRH Insulating Wool
-
8514053905 LH Insulating WoolLH Insulating Wool
-
9390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
10514054223 Lower StopperLower Stopper
-
11420673150 Exhaust ManifoldExhaust Manifold
-
12514054033 Exhaust Manifold EnvelopeExhaust Manifold Envelope
-
13420630820 GasketGasket
-
14514053643 SpringSpring
-
15514053487 Exhaust GasketExhaust Gasket
-
16514053493 Retaining StrapRetaining Strap
-
17514054047 Socket Screw M6 X 20, Scotch GripSocket Screw M6 X 20, Scotch Grip
-
18514053953 WasherWasher
-
19514054034 Insulating WoolInsulating Wool
-
20514053740 Tuned Pipe Ass'y. Includes 20 to 32Tuned Pipe Ass'y. Includes 20 to 32
-
21514053772 Upper Rear Half EnvelopeUpper Rear Half Envelope
-
22514053773 Lower Rear Half EnvelopeLower Rear Half Envelope
-
23514053770 Upper Front Half EnvelopeUpper Front Half Envelope
-
24514053771 Lower Front Half EnvelopeLower Front Half Envelope
-
25514053910 Lower Insulating WoolLower Insulating Wool
-
26514054035 Upper Insulating WoolUpper Insulating Wool
-
27514053498 Retaining StrapRetaining Strap
-
28514053975 Retaining StrapRetaining Strap
-
29514053976 Retaining StrapRetaining Strap
-
30514053605 Retaining StrapRetaining Strap
-
31514053501 Retaining StrapRetaining Strap
-
32514053643 SpringSpring
-
33514053352 BumperBumper
-
34293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
35293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
36415107100 SpringSpring
-
37514054087 Spring BracketSpring Bracket
-
38514053026 Spring BracketSpring Bracket
-
39514053677 Exhaust GasketExhaust Gasket
