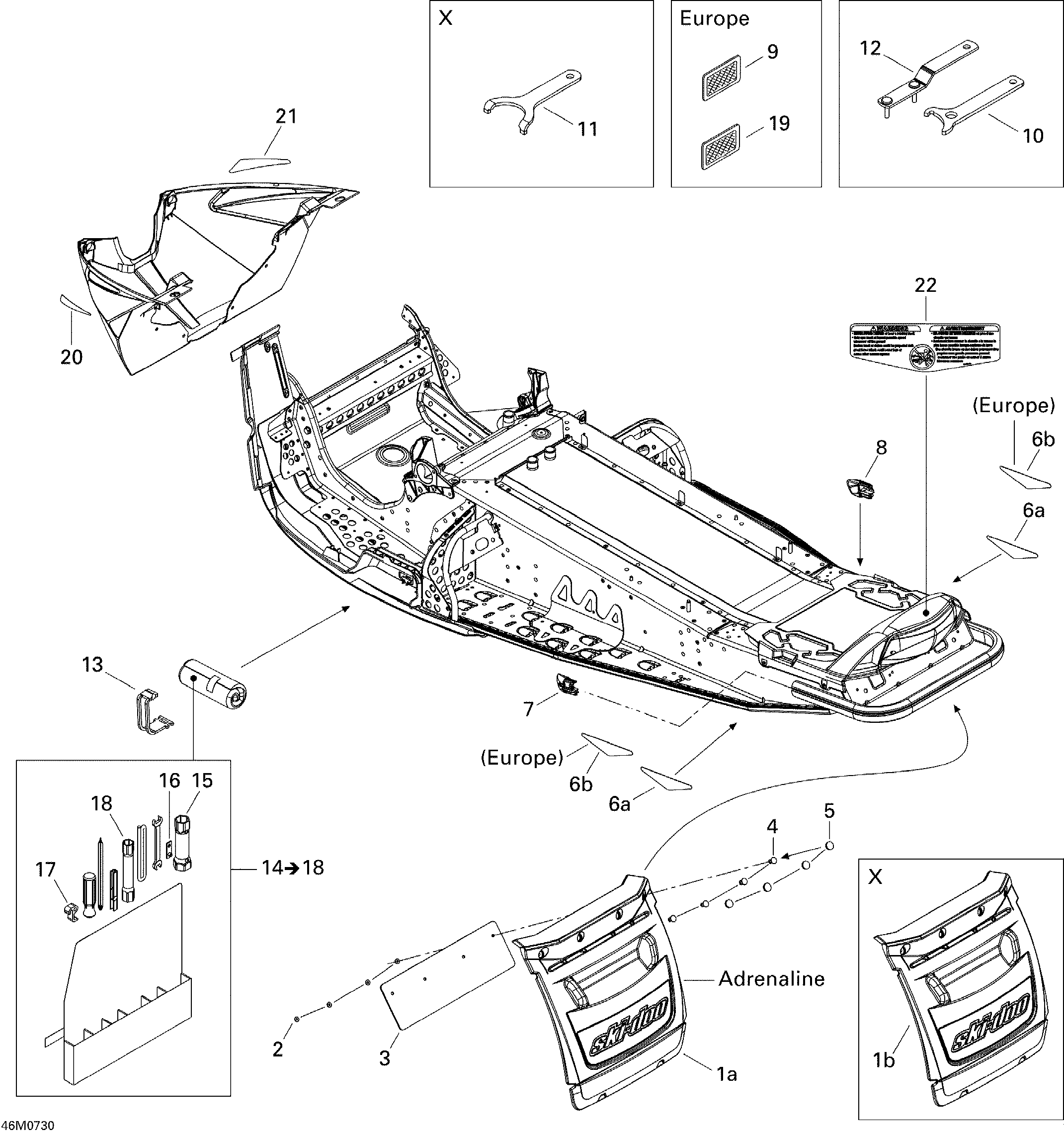

09- Utilities ADR для BRP Ski-Doo MACH Z Adrenaline - 2007
-
№АртикулНазвание
-
1a520000396 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6a520000237 Rear Reflector, RedRear Reflector, Red
-
7520000397 LH CapLH Cap
-
8520000398 RH CapRH Cap
-
10529032900 Adjustment WrenchAdjustment Wrench
-
12520000126 Adjustment WrenchAdjustment Wrench
-
13520000528 LatchLatch
-
14529000025 Tool Kit. Includes 14 to 18Tool Kit. Includes 14 to 18
-
15529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
16529024400 Rope AdaptorRope Adaptor
-
17529019400 Starter GripStarter Grip
-
18295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
20520000468 LH Front ReflectorLH Front Reflector
-
21520000469 RH Front ReflectorRH Front Reflector
-
22516003034 Warning Label, Track SecurityWarning Label, Track Security
