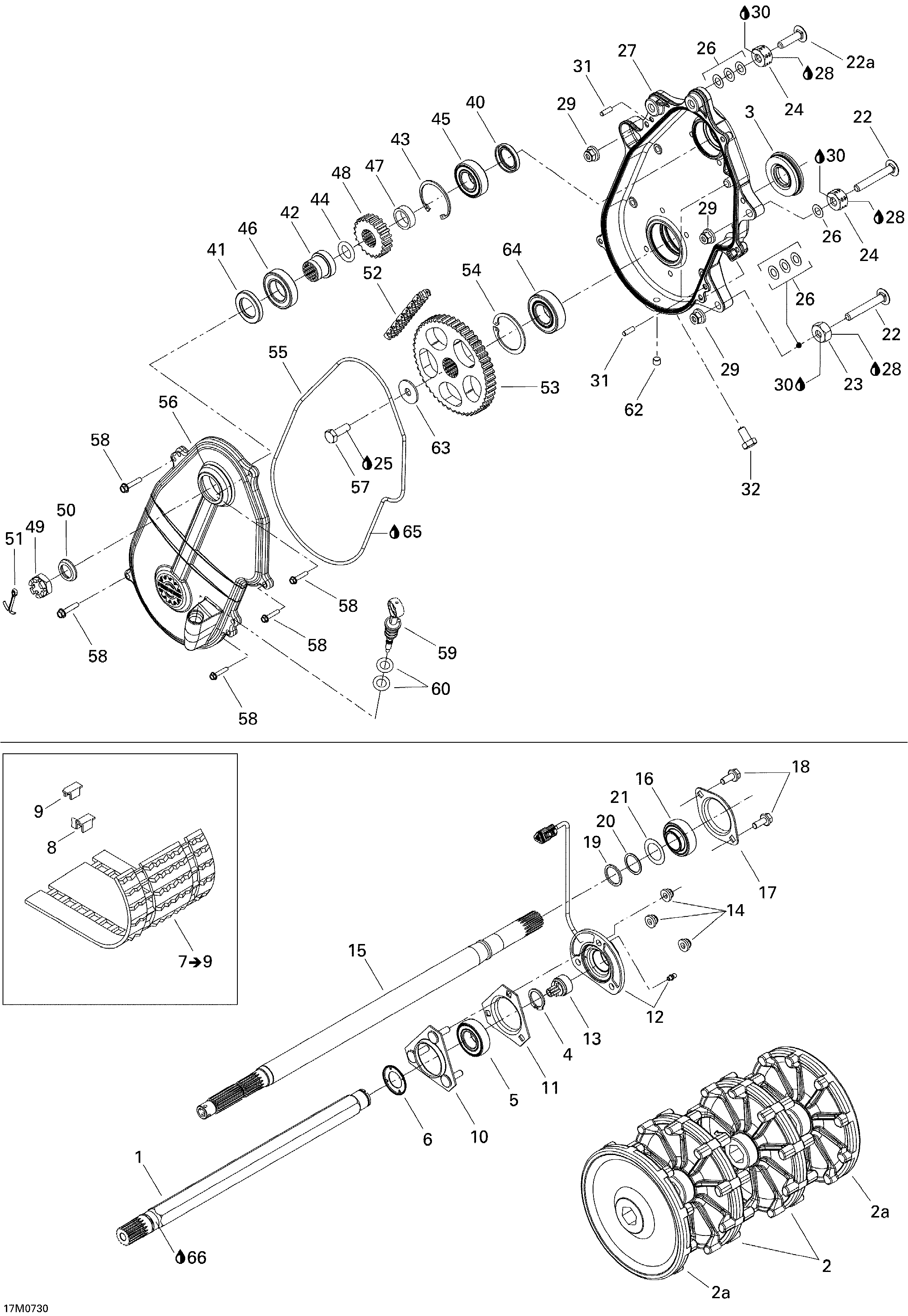

05- Drive System ADR для BRP Ski-Doo MACH Z Adrenaline - 2007
-
№АртикулНазвание
-
1504152424 Drive AxleDrive Axle
-
2504152198 Sprocket, 10 TeethSprocket, 10 Teeth
-
2a504152199 Half Sprocket, 10 TeethHalf Sprocket, 10 Teeth
-
3504151918 Oil Seal Ass'yOil Seal Ass'y
-
4371910200 CirclipCirclip
-
5504152009 Ball BearingBall Bearing
-
6501017400 Bearing ProtectorBearing Protector
-
7504152446 Track 15'' X 121'' X 1'' Ass'y. Includes 7 to 9Track 15'' X 121'' X 1'' Ass'y. Includes 7 to 9
-
8504152410 GuideGuide
-
9504152651 CleatCleat
-
10504151860 Bearing HousingBearing Housing
-
11501025000 FlangeFlange
-
12504152409 SensorSensor
-
13504152040 Magnetic AdaptorMagnetic Adaptor
-
14233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
15504152432 Counter ShaftCounter Shaft
-
16504152535 Ball BearingBall Bearing
-
17501026900 FlangeFlange
-
18207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
19417300252 SpacerSpacer
-
20417300265 SpacerSpacer
-
21504112000 ShimShim
-
22250000164 Carriage Bolt M10Carriage Bolt M10
-
22a250000165 Carriage Bolt M10Carriage Bolt M10
-
23504083800 SpacerSpacer
-
24504152524 SpacerSpacer
-
25293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
26504073700 WasherWasher
-
27504152308 Chain CaseChain Case
-
28293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
29233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31732620001 Cylinder PinCylinder Pin
-
32207302044 Hex Screw M10 X 20, Scotch GripHex Screw M10 X 20, Scotch Grip
-
40504152544 Oil SealOil Seal
-
41504152545 Oil SealOil Seal
-
42504152400 SpacerSpacer
-
43371901700 CirclipCirclip
-
44293300109 O-ringO-ring
-
45504152006 Ball BearingBall Bearing
-
46504152418 Ball BearingBall Bearing
-
47504152398 ShimShim
-
48504152442 Sprocket, 29 TeethSprocket, 29 Teeth
-
49250100079 Hex Castle Nut 20 X 1.5Hex Castle Nut 20 X 1.5
-
50504152523 CapCap
-
51371006300 Pin CotterPin Cotter
-
52504152415 Chain, 82 LinksChain, 82 Links
-
53504152412 Sprocket, 49 TeethSprocket, 49 Teeth
-
54415064300 Circlip, InteriorCirclip, Interior
-
55504152299 O-ringO-ring
-
56504152416 CoverCover
-
57207103044 Hex Screw M10 X 30Hex Screw M10 X 30
-
58210263080 Hex Screw M6 X 30Hex Screw M6 X 30
-
59504152322 Filler Cap Assy.Filler Cap Assy.
-
60414969400 O-RingO-Ring
-
62504151921 Plug 1/8''-27Plug 1/8''-27
-
63506150000 Washer 10 mmWasher 10 mm
-
64504152005 Ball BearingBall Bearing
-
65219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
66219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
