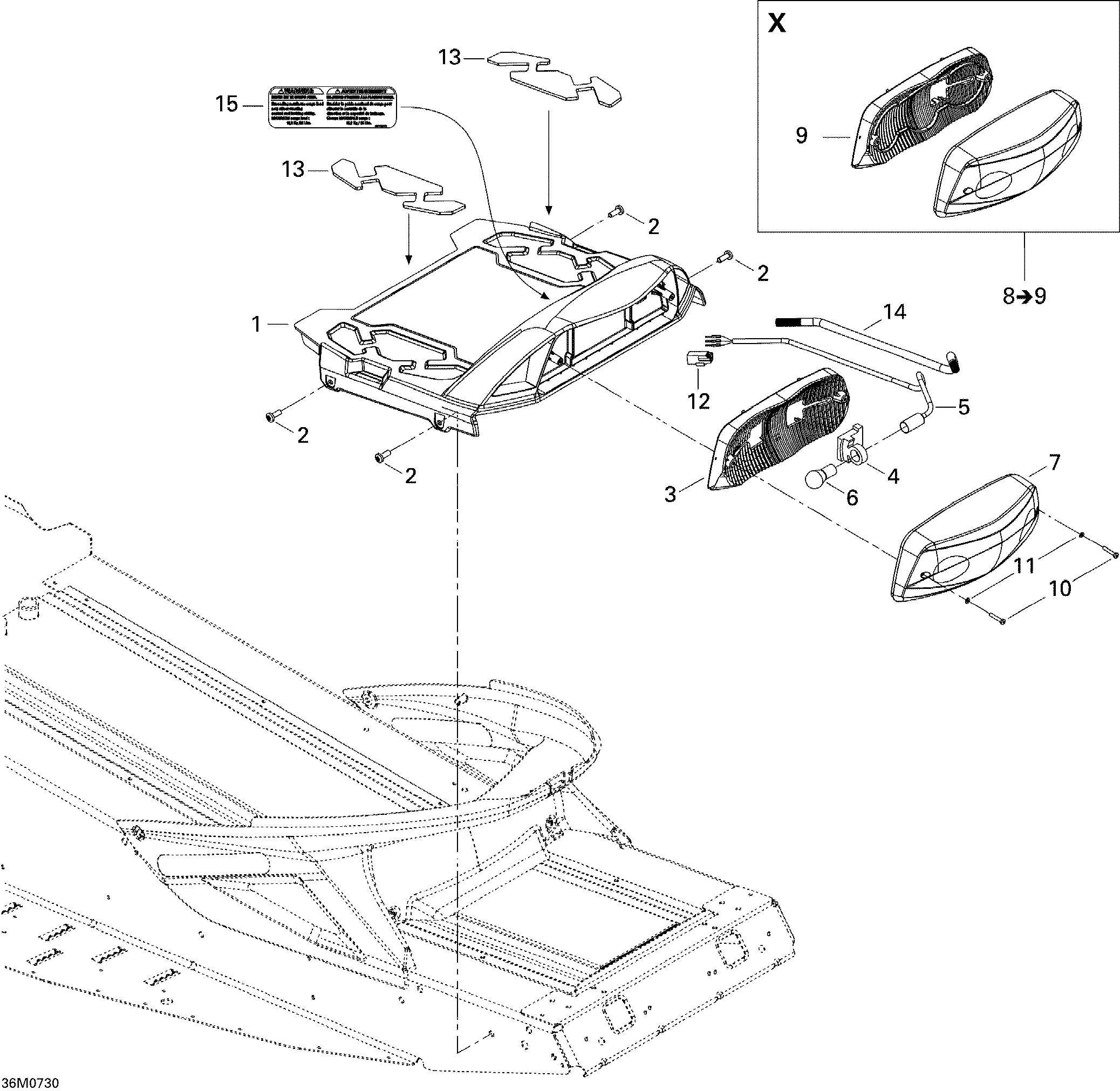

09- Luggage Rack ADR для BRP Ski-Doo MACH Z Adrenaline - 2007
‹-+›
-
№АртикулНазвание
-
1511000434 Luggage RackLuggage Rack
-
2250000129 Truss Torx Screw M6 X 16Truss Torx Screw M6 X 16
-
3510004442 ReflectorReflector
-
4511000431 Bulb SupportBulb Support
-
5511000465 Bulb SocketBulb Socket
-
6410504100 Tail Light BulbTail Light Bulb
-
7511000315 LensLens
-
10209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
11414516400 WasherWasher
-
12515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
13520000481 Rear CarpetRear Carpet
-
14515175442 Tubing 6 mmTubing 6 mm
-
15516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
