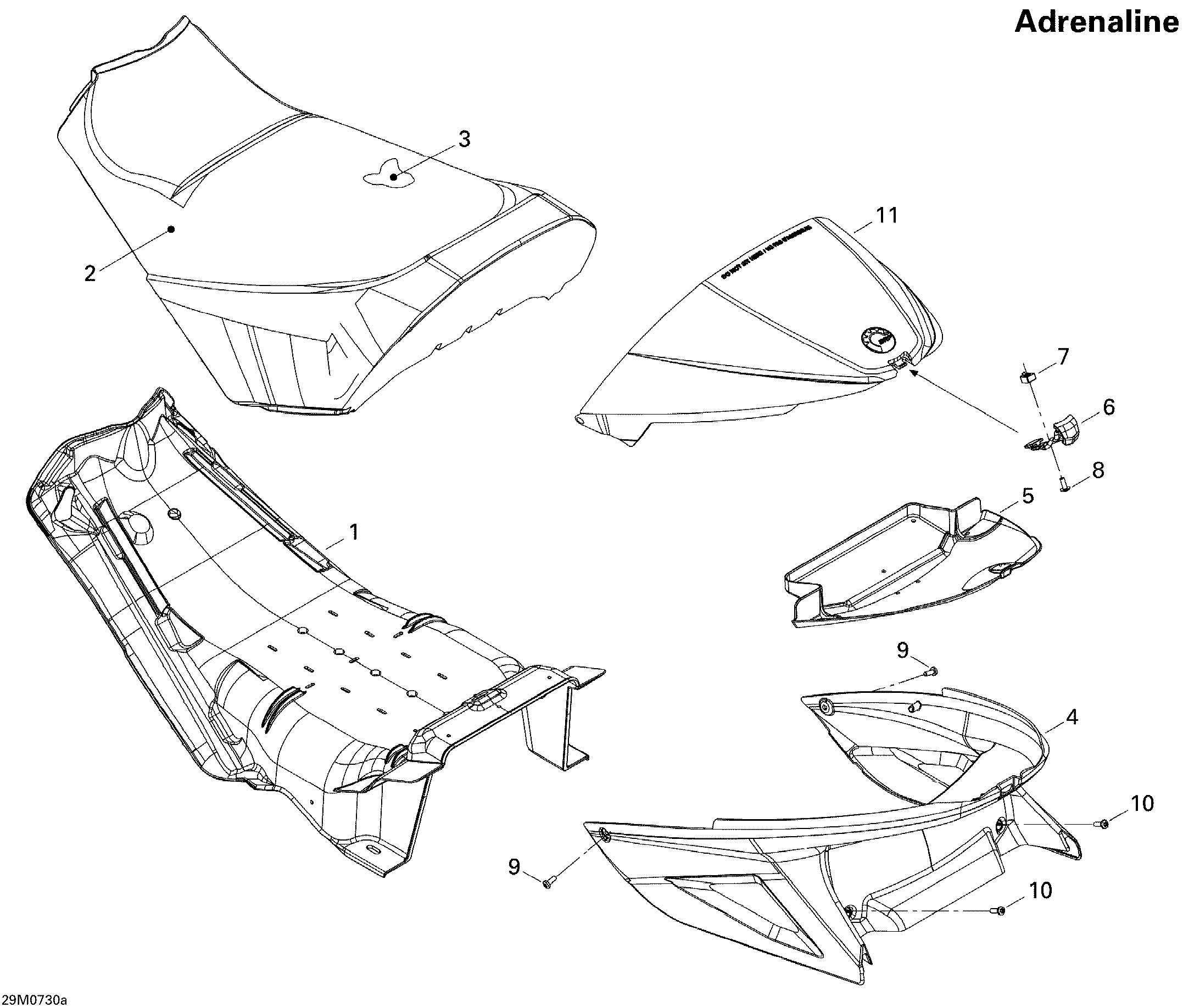

09- Seat Adrenaline для BRP Ski-Doo MACH Z Adrenaline - 2007
-
№АртикулНазвание
-
1510004575 Seat BaseSeat Base
-
2510004475 Seat CoverSeat Cover
-
3510004275 Seat FoamSeat Foam
-
4510004628 Trunk, BlackTrunk, Black
-
5510004600 Box LinerBox Liner
-
6510003917 BracketBracket
-
7708000046 Nut Housing Ass'y M6Nut Housing Ass'y M6
-
8250000129 Truss Torx Screw M6 X 16Truss Torx Screw M6 X 16
-
9250000129 Truss Torx Screw M6 X 16Truss Torx Screw M6 X 16
-
10250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11510004631 Cover, BlackCover, Black
