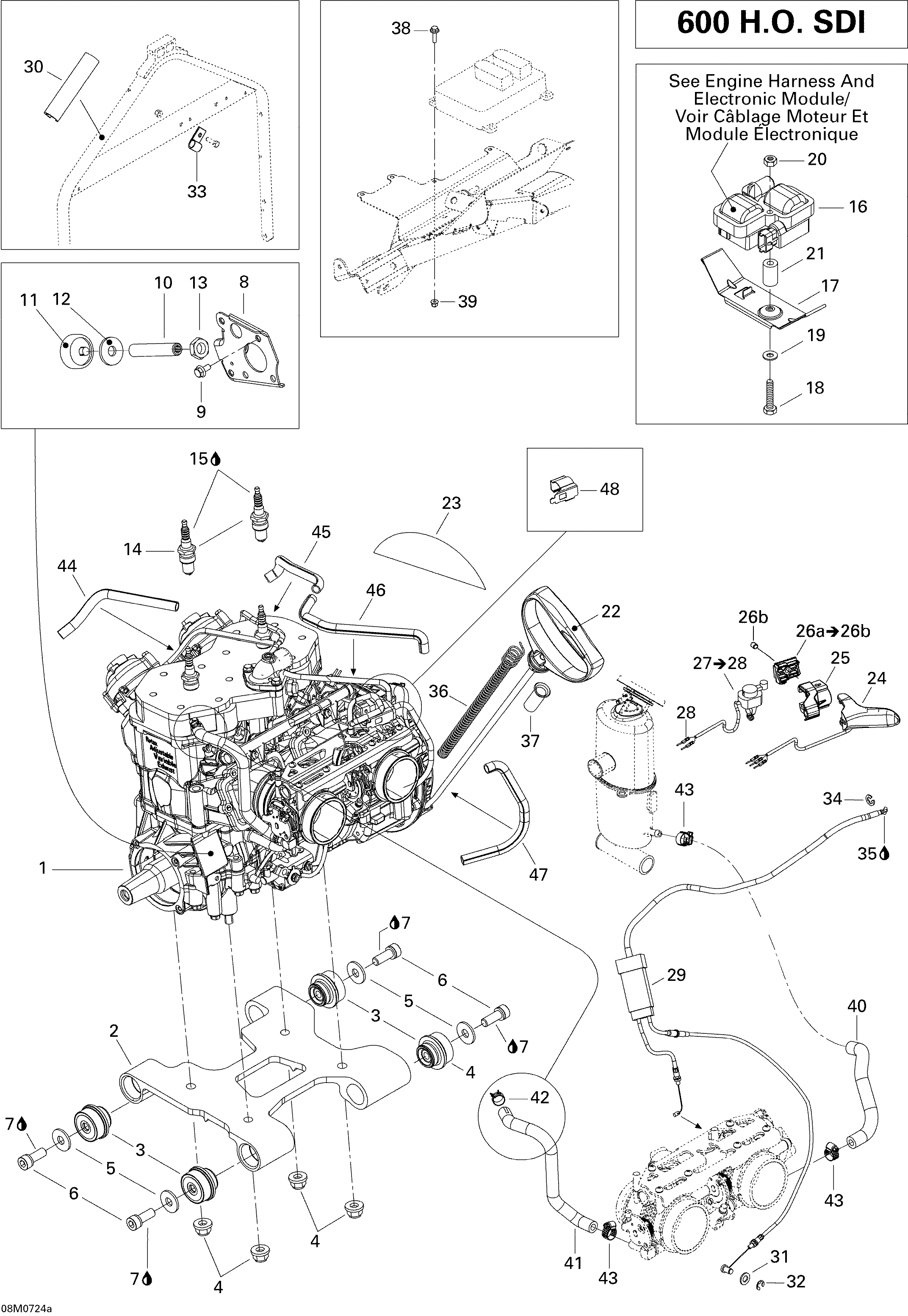

01- Engine 600HOSDI для BRP Ski-Doo MX Z XRS 600 HO SDI - 2007
-
№АртикулНазвание
-
1400509773 Engine 593 H.O. SDIEngine 593 H.O. SDI
-
2512060051 Engine SupportEngine Support
-
3512059691 Rubber MountRubber Mount
-
4233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
5506151251 WasherWasher
-
6235202544 Torx Low Head Socket Screw M10 X 25Torx Low Head Socket Screw M10 X 25
-
7413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
8512059840 PlatePlate
-
9207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
10250500007 Stopper ScrewStopper Screw
-
11512059610 StopperStopper
-
12512059057 WasherWasher
-
13232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
14512060029 Spark Plug BR8ECSSpark Plug BR8ECS
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
16420266070 Ignition CoilIgnition Coil
-
17512059865 Coil SupportCoil Support
-
18207064544 Hex Screw M6 X 45Hex Screw M6 X 45
-
19234061410 Flat Washer 6 mmFlat Washer 6 mm
-
20232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
21512059812 SpacerSpacer
-
22572084400 Starter GripStarter Grip
-
23512059893 Reflective SheetReflective Sheet
-
24512060219 Throttle Handle Ass'yThrottle Handle Ass'y
-
25512060197 Lower HousingLower Housing
-
26a512060198 Upper Housing. Includes 26a to 26bUpper Housing. Includes 26a to 26b
-
26b414440800 Set screw M8 X10Set screw M8 X10
-
27515176443 Kill Switch. Includes 27 to 28Kill Switch. Includes 27 to 28
-
28515175768 Male TerminalMale Terminal
-
29512060086 Throttle CableThrottle Cable
-
30512059750 ProtectorProtector
-
31234081100 Flat Washer 8 mmFlat Washer 8 mm
-
32414753500 CirclipCirclip
-
33293750042 Tie ClampTie Clamp
-
34414274500 CirclipCirclip
-
35293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
36512059535 Rope GuideRope Guide
-
37512059536 TubeTube
-
38207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
39233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
40512059563 Formed HoseFormed Hose
-
41512059990 Formed HoseFormed Hose
-
42513033029 Spring ClampSpring Clamp
-
43293650170 Hose ClampHose Clamp
-
44409901700 Tubing 9 mmTubing 9 mm
-
45409901700 Tubing 9 mmTubing 9 mm
-
46409901700 Tubing 9 mmTubing 9 mm
-
47409901700 Tubing 9 mmTubing 9 mm
-
48512059809 Heating Element BracketHeating Element Bracket
