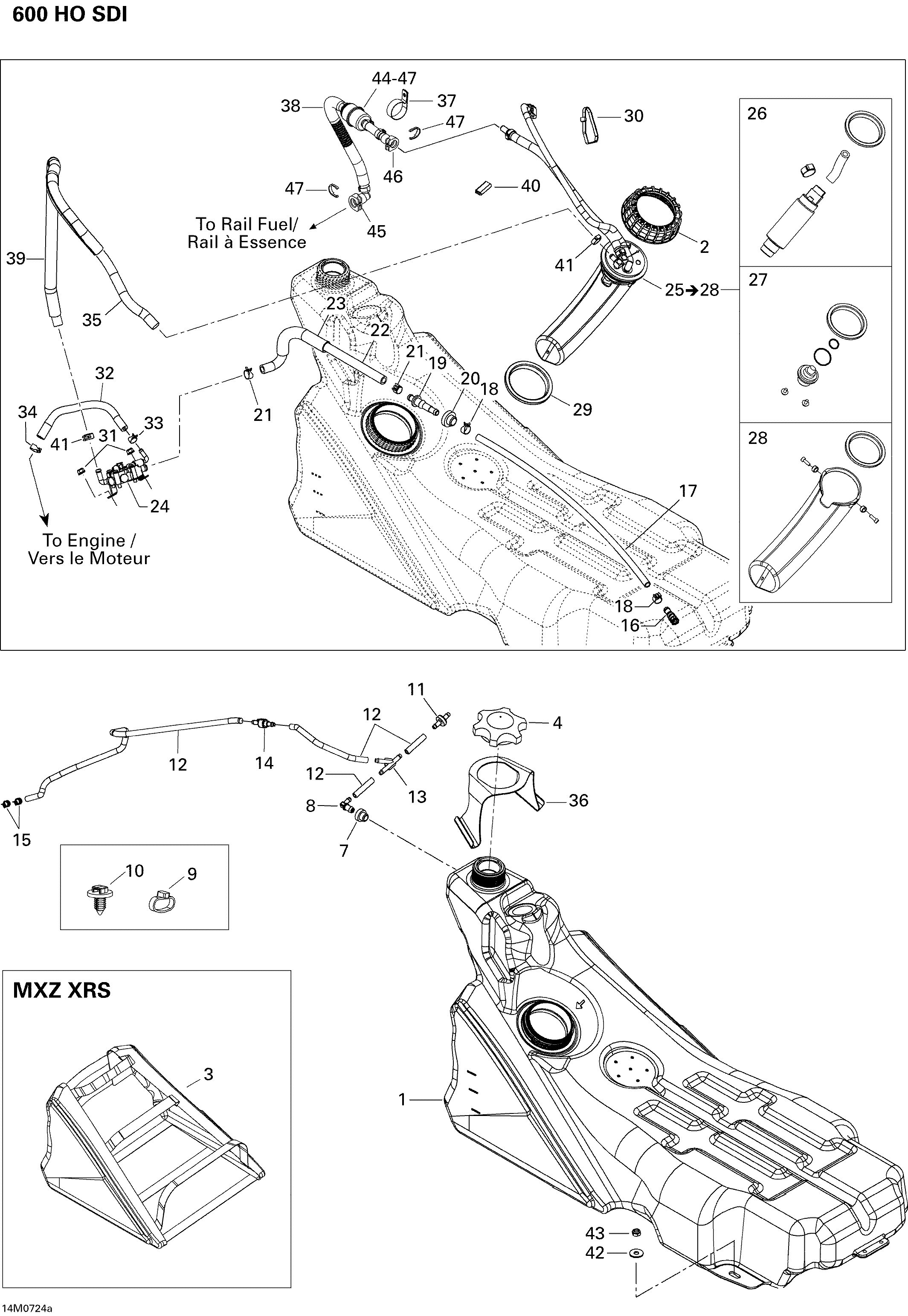

02- Fuel System 600 HO SDI для BRP Ski-Doo MX Z XRS 600 HO SDI - 2007
-
№АртикулНазвание
-
1513033186 Fuel Tank. Includes 1 to 2Fuel Tank. Includes 1 to 2
-
2513033040 Nut, Fuel Pump ModuleNut, Fuel Pump Module
-
3513033075 Tank Cover, BlackTank Cover, Black
-
4513033025 CapCap
-
7513032908 GrommetGrommet
-
8414580700 Elbow Male ConnectorElbow Male Connector
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
10293730018 Mount DartMount Dart
-
11275500398 Check ValveCheck Valve
-
12415080200 Polyurethane HosePolyurethane Hose
-
13293710059 Y FittingY Fitting
-
14275500505 Check ValveCheck Valve
-
15414554800 Spring ClampSpring Clamp
-
16414872100 Fuel FilterFuel Filter
-
17513033070 HoseHose
-
18513033010 Norma Spring ClampNorma Spring Clamp
-
19414872700 Male ConnectorMale Connector
-
20570273900 GrommetGrommet
-
21293650053 Crimp ClampCrimp Clamp
-
22513033027 HoseHose
-
23415080000 Tubing 16 mmTubing 16 mm
-
24403901812 Fuel PumpFuel Pump
-
25513033120 Fuel Pump Module. Includes 25 to 28Fuel Pump Module. Includes 25 to 28
-
26861302700 Pump KitPump Kit
-
27861302100 Regulator KitRegulator Kit
-
28861302800 Reservoir KitReservoir Kit
-
29513033039 SealSeal
-
30414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
32513033035 HoseHose
-
33414415200 Universal Spring ClampUniversal Spring Clamp
-
34513033029 Spring ClampSpring Clamp
-
35513033022 Hose 8 mm, MeterHose 8 mm, Meter
-
36513033066 SupportSupport
-
37513033047 Open ClampOpen Clamp
-
38415080000 Tubing 16 mmTubing 16 mm
-
39415080000 Tubing 16 mmTubing 16 mm
-
40271000110 Protection TrimProtection Trim
-
41293650047 Oetiker ClampOetiker Clamp
-
42234082410 Flat Washer 8 mmFlat Washer 8 mm
-
43232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
44513033133 Fuel Filter Ass'yFuel Filter Ass'y
-
45415128965 Quick Fitting 90°Quick Fitting 90°
-
46709000125 Female Quick FittingFemale Quick Fitting
-
47513033135 Locking ClipLocking Clip
