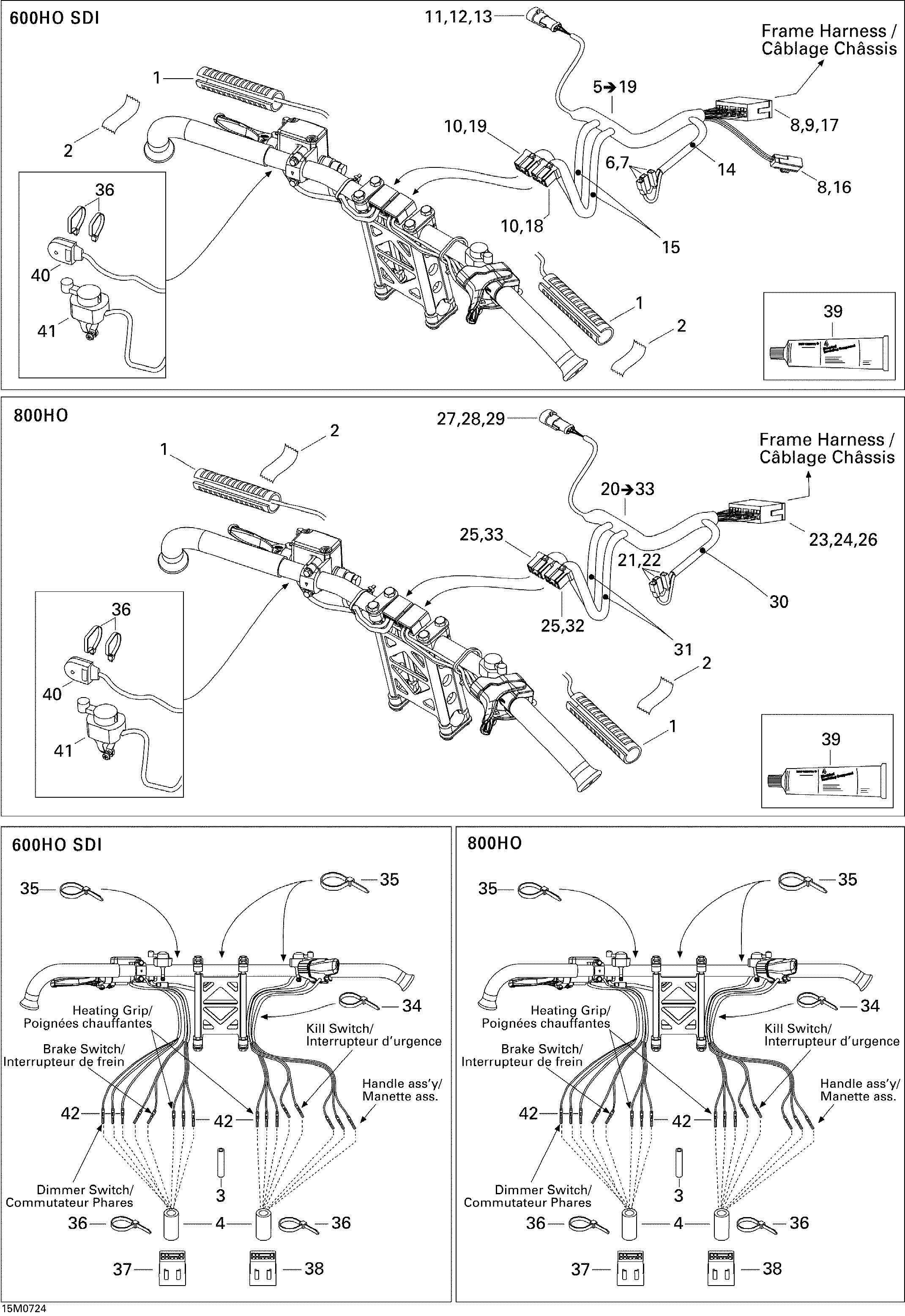

10- Steering Wiring Harness 600 для BRP Ski-Doo MX Z XRS 600 HO SDI - 2007
-
№АртикулНазвание
-
1515176139 Heater ElementHeater Element
-
1515176139 Heater ElementHeater Element
-
2293740005 Vinyl Tape 3/4'', BlackVinyl Tape 3/4'', Black
-
2293740005 Vinyl Tape 3/4'', BlackVinyl Tape 3/4'', Black
-
3515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
3515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
4515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
4515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
5515176455 Steering Wiring Harness. 600HO SDI, Includes 5 to 19Steering Wiring Harness. 600HO SDI, Includes 5 to 19
-
5515176455 Steering Wiring Harness. 600HO SDI, Includes 5 to 19Steering Wiring Harness. 600HO SDI, Includes 5 to 19
-
6409010100 Female Terminal. 600HO SDIFemale Terminal. 600HO SDI
-
6409010100 Female Terminal. 600HO SDIFemale Terminal. 600HO SDI
-
7409010400 Female Terminal Housing, 1 Circuit. 600HO SDIFemale Terminal Housing, 1 Circuit. 600HO SDI
-
7409010400 Female Terminal Housing, 1 Circuit. 600HO SDIFemale Terminal Housing, 1 Circuit. 600HO SDI
-
8515175232 Male Terminal. 600HO SDIMale Terminal. 600HO SDI
-
8515175232 Male Terminal. 600HO SDIMale Terminal. 600HO SDI
-
9515175273 Male Terminal. 600HO SDIMale Terminal. 600HO SDI
-
9515175273 Male Terminal. 600HO SDIMale Terminal. 600HO SDI
-
10515175231 Female Terminal. 600HO SDIFemale Terminal. 600HO SDI
-
10515175231 Female Terminal. 600HO SDIFemale Terminal. 600HO SDI
-
11409012900 Male Terminal. 600HO SDIMale Terminal. 600HO SDI
-
11409012900 Male Terminal. 600HO SDIMale Terminal. 600HO SDI
-
12409209400 Male Terminal Housing, 2 Circuits. 600HO SDIMale Terminal Housing, 2 Circuits. 600HO SDI
-
12409209400 Male Terminal Housing, 2 Circuits. 600HO SDIMale Terminal Housing, 2 Circuits. 600HO SDI
-
13278001013 Wire Seal. 600HO SDIWire Seal. 600HO SDI
-
13278001013 Wire Seal. 600HO SDIWire Seal. 600HO SDI
-
14515175442 Tubing 6 mm. 600HO SDITubing 6 mm. 600HO SDI
-
14515175442 Tubing 6 mm. 600HO SDITubing 6 mm. 600HO SDI
-
15515175810 Female Terminal Housing, 8 Circuits. 600HO SDIFemale Terminal Housing, 8 Circuits. 600HO SDI
-
15515175810 Female Terminal Housing, 8 Circuits. 600HO SDIFemale Terminal Housing, 8 Circuits. 600HO SDI
-
16515175654 Male Terminal Housing, 2 Circuits. 600HO SDIMale Terminal Housing, 2 Circuits. 600HO SDI
-
16515175654 Male Terminal Housing, 2 Circuits. 600HO SDIMale Terminal Housing, 2 Circuits. 600HO SDI
-
17515175720 Male Terminal Housing, 11 Circuits. 600HO SDIMale Terminal Housing, 11 Circuits. 600HO SDI
-
17515175720 Male Terminal Housing, 11 Circuits. 600HO SDIMale Terminal Housing, 11 Circuits. 600HO SDI
-
18515175819 Female Terminal Housing, 8 Circuits. 600HO SDIFemale Terminal Housing, 8 Circuits. 600HO SDI
-
18515175819 Female Terminal Housing, 8 Circuits. 600HO SDIFemale Terminal Housing, 8 Circuits. 600HO SDI
-
19515176458 Female Terminal Housing, 8 Circuits. 600HO SDIFemale Terminal Housing, 8 Circuits. 600HO SDI
-
19515176458 Female Terminal Housing, 8 Circuits. 600HO SDIFemale Terminal Housing, 8 Circuits. 600HO SDI
-
34414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
34414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
36293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
37515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
37515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
38515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
38515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
39293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
39293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
40515176269 SwitchSwitch
-
40515176269 SwitchSwitch
-
41515175684 Dimmer SwitchDimmer Switch
-
41515175684 Dimmer SwitchDimmer Switch
-
42515175232 Male TerminalMale Terminal
-
42515175232 Male TerminalMale Terminal
