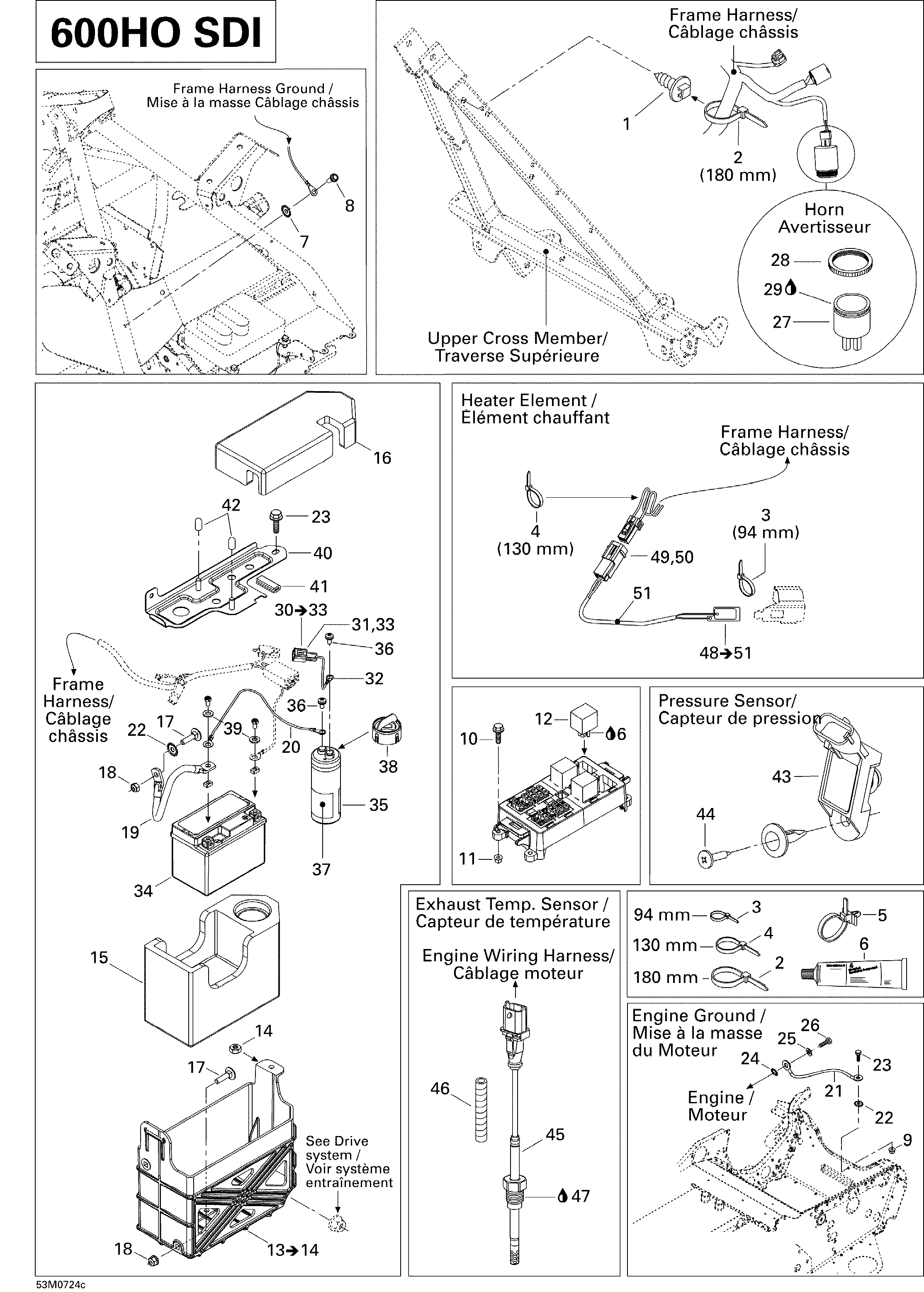

10- Electrical Accessories 2, 600HO SDI для BRP Ski-Doo MX Z XRS 600 HO SDI - 2007
-
№АртикулНазвание
-
1293730018 Mount DartMount Dart
-
2414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
4293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
5293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
6293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
7394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
8210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
11233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
12410113604 RelayRelay
-
13515176423 Battery Support. Includes 13 to 14Battery Support. Includes 13 to 14
-
14232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15515176190 Capacitor SupportCapacitor Support
-
16515176114 CoverCover
-
17207762544 Carriage Bolt M6 X 25Carriage Bolt M6 X 25
-
18233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
19515175749 Ground WireGround Wire
-
20515176119 Ground Harness, CapacitorGround Harness, Capacitor
-
21515176276 Battery Assisted Ground CableBattery Assisted Ground Cable
-
22250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
23207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
24234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
25234081410 Flat Washer 8 mmFlat Washer 8 mm
-
26207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
27515176035 HornHorn
-
28414805101 Plastic NutPlastic Nut
-
29296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
30515176120 Capacitor Harness. Includes 30 to 33Capacitor Harness. Includes 30 to 33
-
31515175273 Male TerminalMale Terminal
-
32515175504 Ring TerminalRing Terminal
-
33515175509 Male Terminal Housing, 1 CircuitMale Terminal Housing, 1 Circuit
-
34515176433 battery with fasteners, 3 amperesbattery with fasteners, 3 amperes
-
34410301204 Battery With Fasteners, 3 Amperes. EuropeBattery With Fasteners, 3 Amperes. Europe
-
35515176387 CapacitorCapacitor
-
36515176388 mechanical screwmechanical screw
-
37516002976 Capacitor DecalCapacitor Decal
-
38515176211 CapCap
-
39234051410 Flat Washer M5Flat Washer M5
-
40515175735 Battery StripBattery Strip
-
41414506600 TrimTrim
-
42515176141 CapCap
-
43420274055 Pressure SensorPressure Sensor
-
44414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
45515176132 Temperature SensorTemperature Sensor
-
46515175442 Tubing 6 mmTubing 6 mm
-
47293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
48515176473 Heater Element Ass'y. Includes 48 to 51Heater Element Ass'y. Includes 48 to 51
-
49515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
50515175232 Male TerminalMale Terminal
-
51515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
