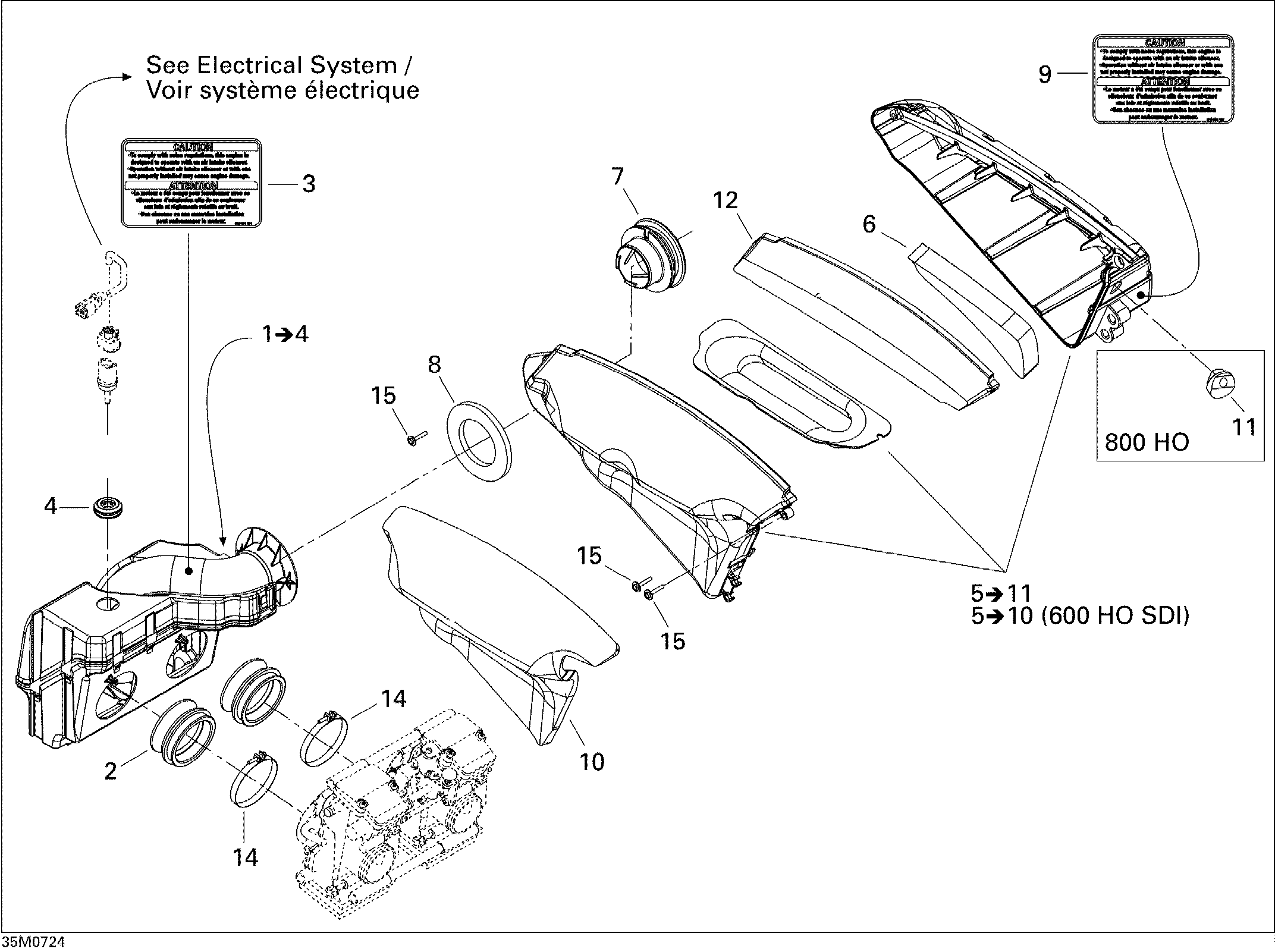

02- Air Intake System 600 для BRP Ski-Doo MX Z XRS 600 HO SDI - 2007
-
№АртикулНазвание
-
1508000459 Chamber Ass'y. Includes 1 to 4, 600 HO SDIChamber Ass'y. Includes 1 to 4, 600 HO SDI
-
2508000374 Air Intake Adaptor. 600 HO SDIAir Intake Adaptor. 600 HO SDI
-
3516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
4570065500 GrommetGrommet
-
5508000392 Secondary Chamber Assy. Includes 5 to 10, 600 HO SDISecondary Chamber Assy. Includes 5 to 10, 600 HO SDI
-
6508000145 Inner FoamInner Foam
-
7508000240 GuideGuide
-
8508000199 Outer FoamOuter Foam
-
9516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
10508000310 Outer FoamOuter Foam
-
12508000394 Air FilterAir Filter
-
14508000346 Gemi ClampGemi Clamp
-
15250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
