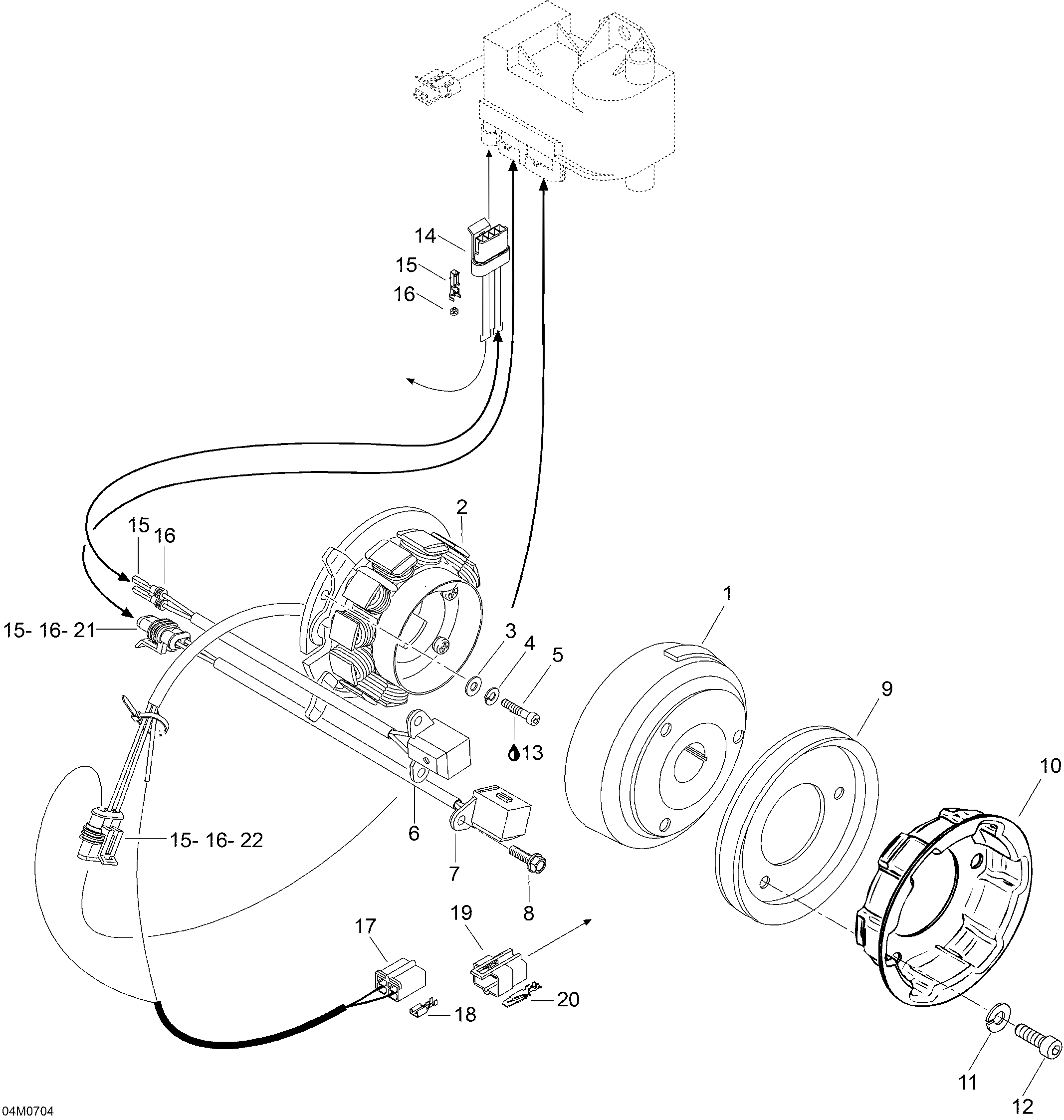

03- Magneto для BRP Ski-Doo Skandic LT 440F - 2007
-
№АртикулНазвание
-
1420996823 FlywheelFlywheel
-
2420886603 Stator Plate AStator Plate A
-
3420927571 WasherWasher
-
4M20013 Lock WasherLock Washer
-
5420840515 Socket Head Screw M5 X 18Socket Head Screw M5 X 18
-
6420966548 Pick-Up Ass'YPick-Up Ass'Y
-
7420966546 Pick-Up Ass'YPick-Up Ass'Y
-
8420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
9420980486 V-Belt PulleyV-Belt Pulley
-
10420852414 Rope SheaveRope Sheave
-
11420845311 Lock WasherLock Washer
-
12420841521 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
15278001014 Female TerminalFemale Terminal
-
16278001013 Wire SealWire Seal
-
17409204900 Female HousingFemale Housing
-
18515175253 Female TerminalFemale Terminal
-
19409209300 Male HousingMale Housing
-
20409210000 Male TerminalMale Terminal
-
21409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
22409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
