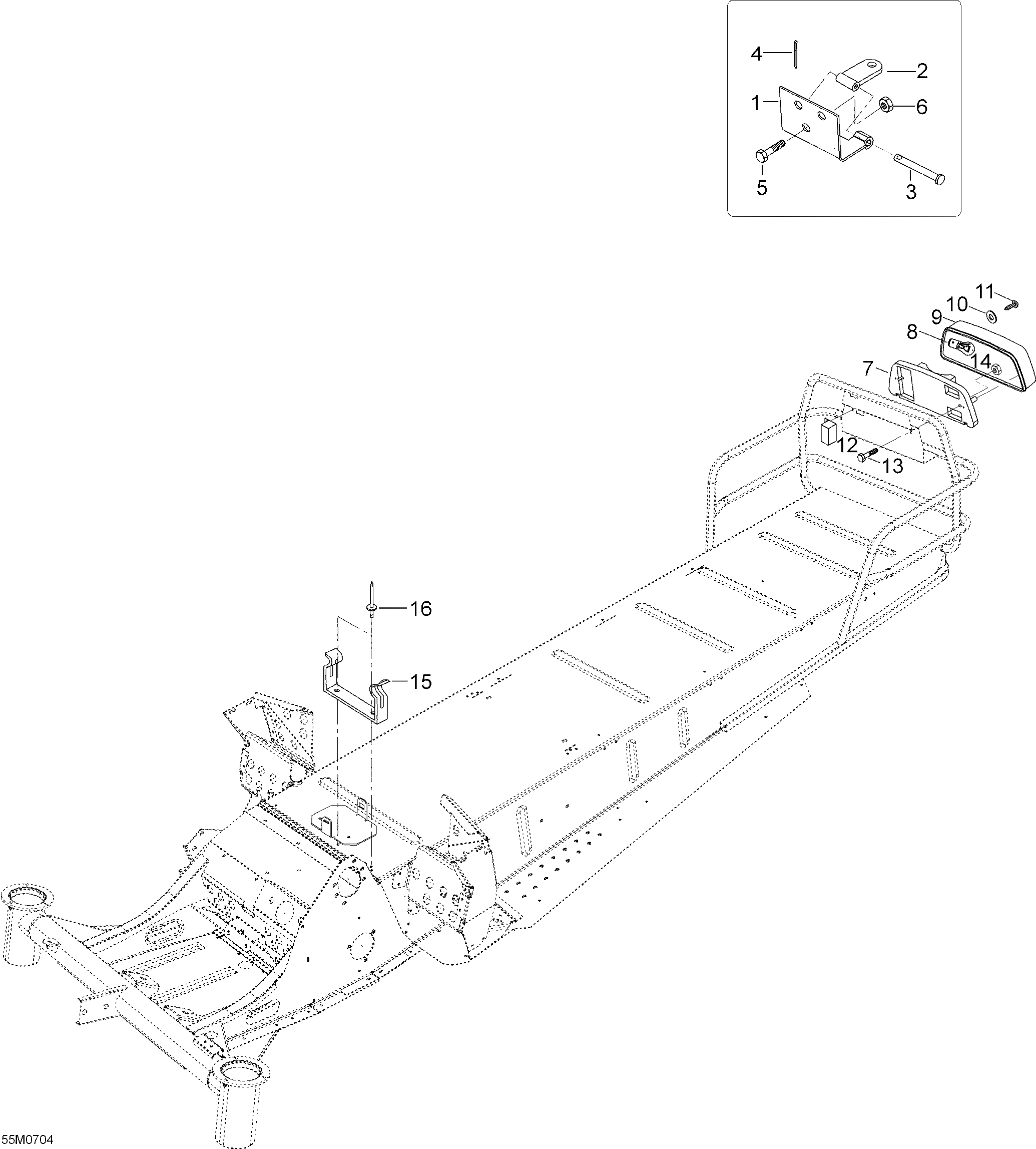

09- Frame and Components для BRP Ski-Doo Skandic LT 440F - 2007
-
№АртикулНазвание
-
1M5346638 PlatePlate
-
2M548745 Hitch PlateHitch Plate
-
3560309200 Pin-RetainerPin-Retainer
-
4M41031 PinPin
-
5M40336 Screw M8 X 20Screw M8 X 20
-
6232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
7510004061 Light HousingLight Housing
-
8410504100 Tail Light BulbTail Light Bulb
-
9414513700 LensLens
-
10209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
11209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
12605448415 Protection PlateProtection Plate
-
13207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
14M33200 Nut M6Nut M6
-
15M5346204 SupportSupport
-
16M36083 RivetRivet
