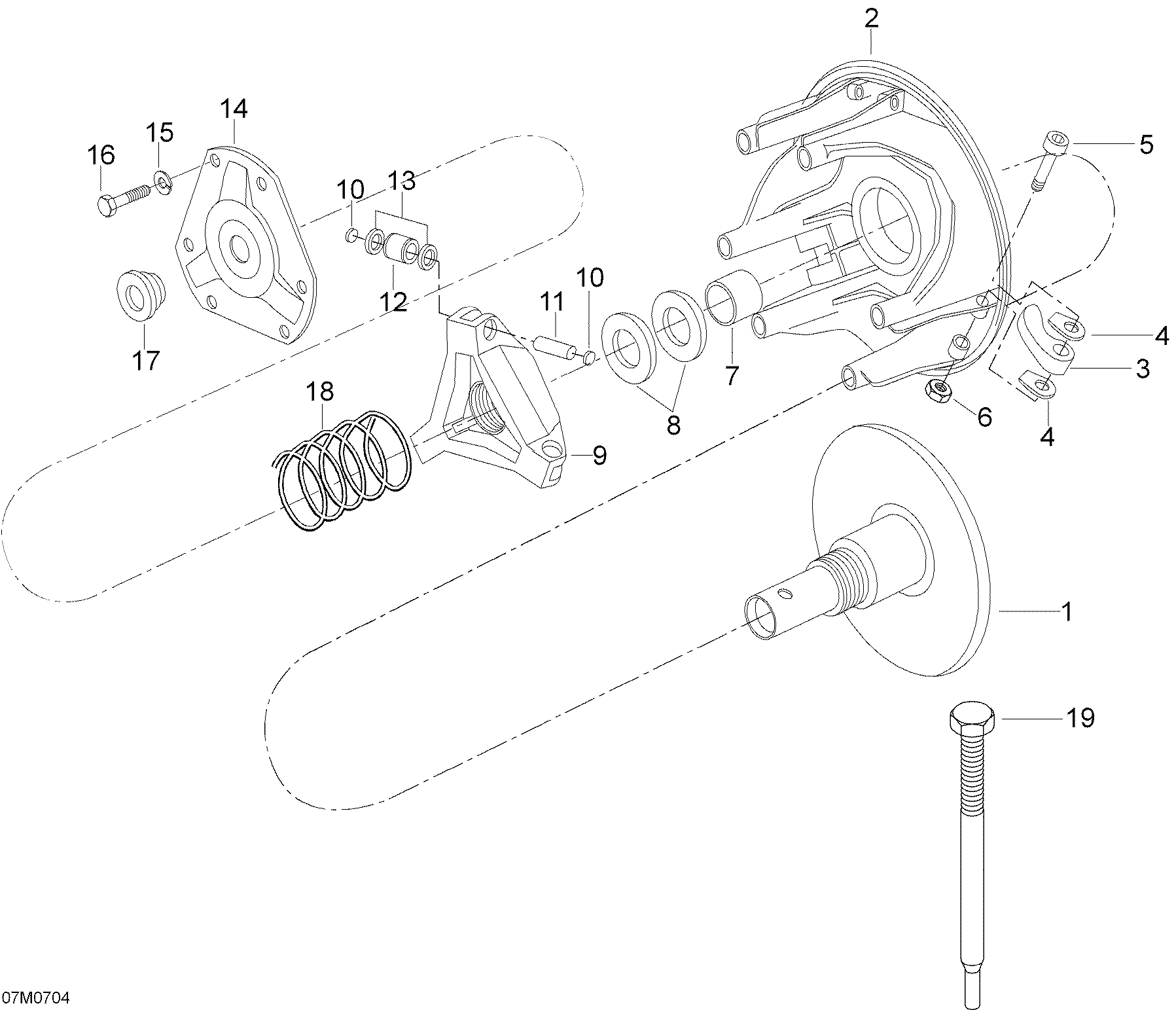

05- Drive Pulley для BRP Ski-Doo Skandic LT 440F - 2007
-
№АртикулНазвание
-
1M140028 Inner FlangeInner Flange
-
—M140042 Pin Arm KitPin Arm Kit
-
8M140022 Spider ShimSpider Shim
-
9M140017 Spider Ass'ySpider Ass'y
-
11M140020 PinPin
-
13M140019 Stopper WasherStopper Washer
-
—M140043 Washer And Bolt KitWasher And Bolt Kit
-
17M140013 Pivot WasherPivot Washer
-
19529025000 Driver PullerDriver Puller
-
20529035826 Tapered Tool. Not ShownTapered Tool. Not Shown
-
21529025200 Tool-spider. Not ShownTool-spider. Not Shown
-
22503102602 Washer. Not ShownWasher. Not Shown
