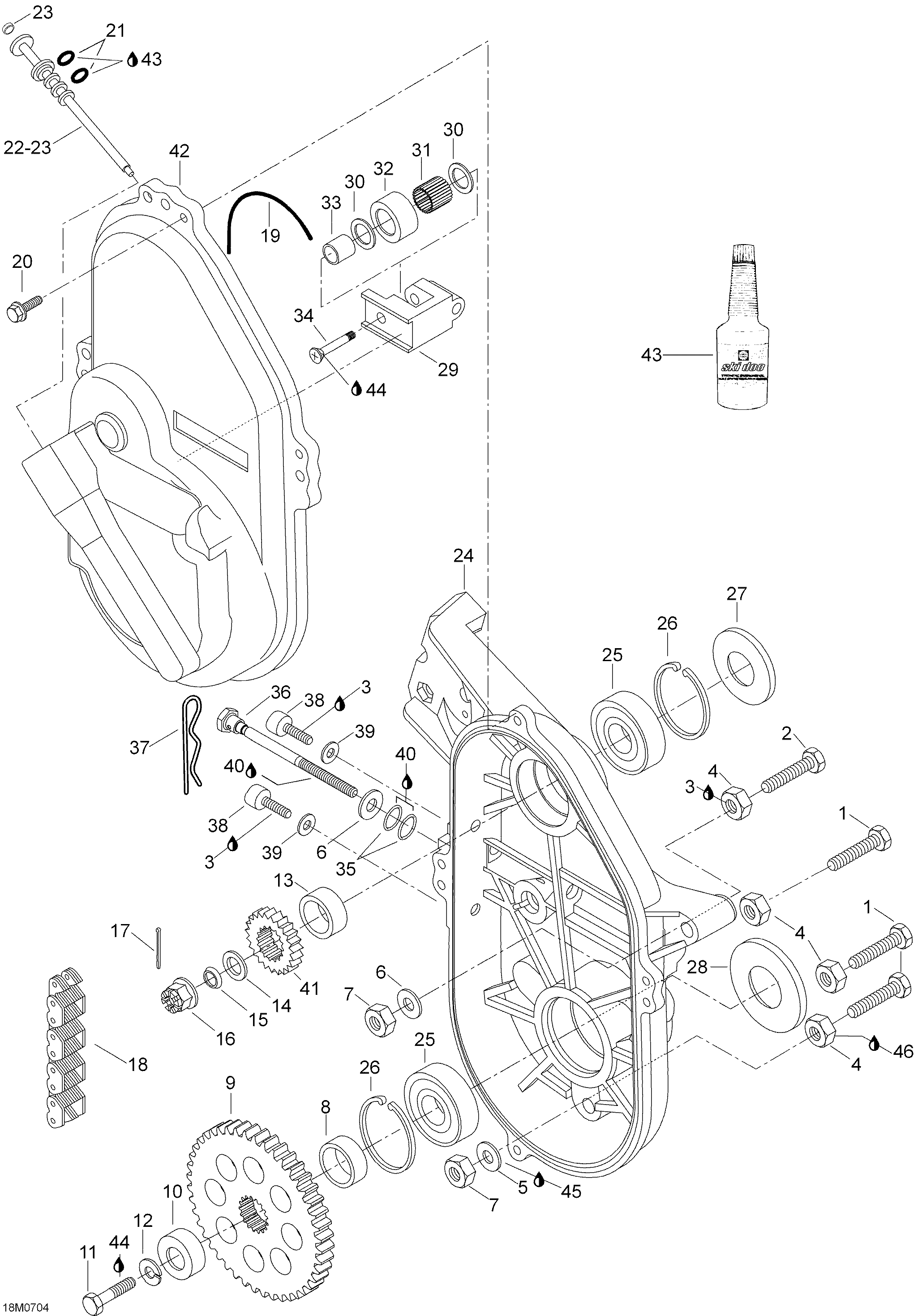

05- Transmission для BRP Ski-Doo Skandic LT 440F - 2007
-
№АртикулНазвание
-
1M40201 ScrewScrew
-
2M40043 ScrewScrew
-
3293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
4504083800 SpacerSpacer
-
5M20073 WasherWasher
-
6234001410 Flat Washer 10 mmFlat Washer 10 mm
-
7233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
8605452059 SpacerSpacer
-
9504070900 Sprocket 44ThSprocket 44Th
-
10501026200 CapCap
-
11207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
12M20068 Lock WasherLock Washer
-
13504093400 ShimShim
-
14504152049 SpacerSpacer
-
15417000900 Spring WasherSpring Washer
-
16232210414 Hex Castellated Nut M16Hex Castellated Nut M16
-
17371801300 Cotter PinCotter Pin
-
18504151882 Driving Chain 70 MDriving Chain 70 M
-
19414362300 O-RingO-Ring
-
20M40340 Hex Forming ScrewHex Forming Screw
-
21M28402 O RingO Ring
-
22572092700 Filler Cap Ass'y. Includes 22 to 23Filler Cap Ass'y. Includes 22 to 23
-
23206540490 Set Screw M4Set Screw M4
-
24504144600 Machined ChaincaseMachined Chaincase
-
25504152006 Ball BearingBall Bearing
-
26371901700 CirclipCirclip
-
27414882800 Oil SealOil Seal
-
28504152076 Seal Oil Ass'ySeal Oil Ass'y
-
29504081000 Machined TensionerMachined Tensioner
-
30504080300 WasherWasher
-
31M31050 Needle BearingNeedle Bearing
-
32414531300 RollerRoller
-
33504080200 SpacerSpacer
-
34732601144 ScrewScrew
-
35414484400 O-RingO-Ring
-
36732601311 Adjusting ScrewAdjusting Screw
-
37414575600 Hair PinHair Pin
-
38M40859 Socket Head ScrewSocket Head Screw
-
39M20022 WasherWasher
-
40219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
41504071800 Sprocket 17 ThSprocket 17 Th
-
42080037100 Casting CoverCasting Cover
-
43413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
44293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
45413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
46293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
