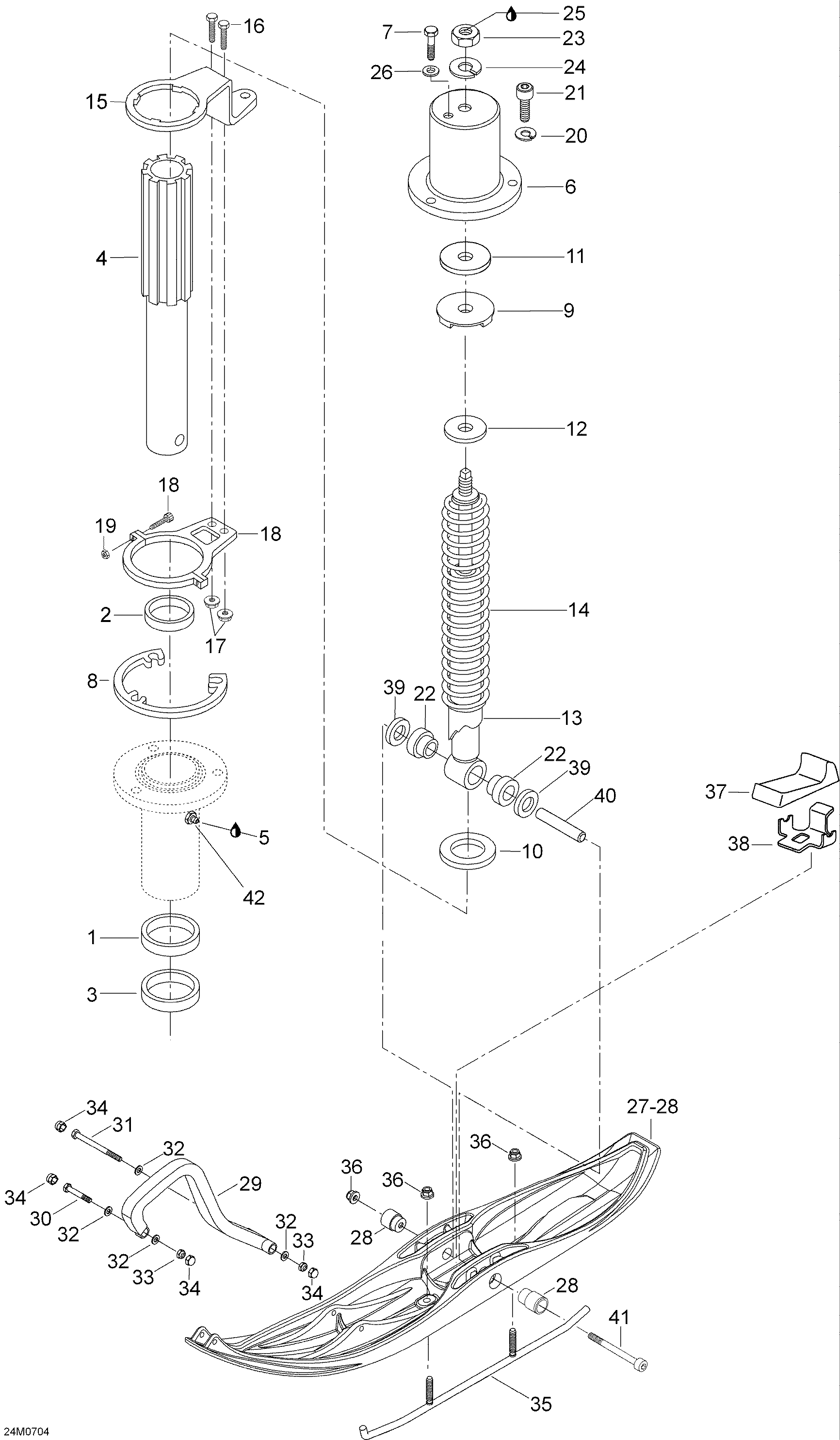

07- Front Suspension And Ski для BRP Ski-Doo Skandic LT 440F - 2007
-
№АртикулНазвание
-
1414803200 Lower CushionLower Cushion
-
2414803100 Upper CushionUpper Cushion
-
3M316373 Oil SealOil Seal
-
4M5245362 Ski LegSki Leg
-
5293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
6605252612 Cover PaintedCover Painted
-
7M40401 Screw-hex.cap M6x10Screw-hex.cap M6x10
-
8503145600 SpacerSpacer
-
9570025800 StopperStopper
-
10M549493 WasherWasher
-
11M5440399 WasherWasher
-
12M549492 PlatePlate
-
13M23215 ShockShock
-
14605250051 SpringSpring
-
15M5244182 Steering ArmSteering Arm
-
16207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
17M33200 Nut M6Nut M6
-
18M5344180 Support Ass'ySupport Ass'y
-
18M40146 ScrewScrew
-
19232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
20234181401 Lock Washer 8 mmLock Washer 8 mm
-
21205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
22572034500 CushionCushion
-
23M33023 NutNut
-
24M20012 WasherWasher
-
26234061410 Flat Washer 6 mmFlat Washer 6 mm
-
27605153775 Plastic Ski Ass'y. Includes 27 to 28Plastic Ski Ass'y. Includes 27 to 28
-
28605348392 BushingBushing
-
29505070963 Handle, BlackHandle, Black
-
30207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
31M40264 Hex Screw M8 X 90Hex Screw M8 X 90
-
32234081410 Flat Washer 8 mmFlat Washer 8 mm
-
33232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
34M28056 CapCap
-
35605352643 Carbide KitCarbide Kit
-
36M33074 NutNut
-
37605348439 Rubber StopperRubber Stopper
-
38605348437 Plate SupportPlate Support
-
39605448594 BushingBushing
-
40605348921 SpacerSpacer
-
41M40225 Hex Screw M10 X 140Hex Screw M10 X 140
-
42M34019 Grease FittingGrease Fitting
