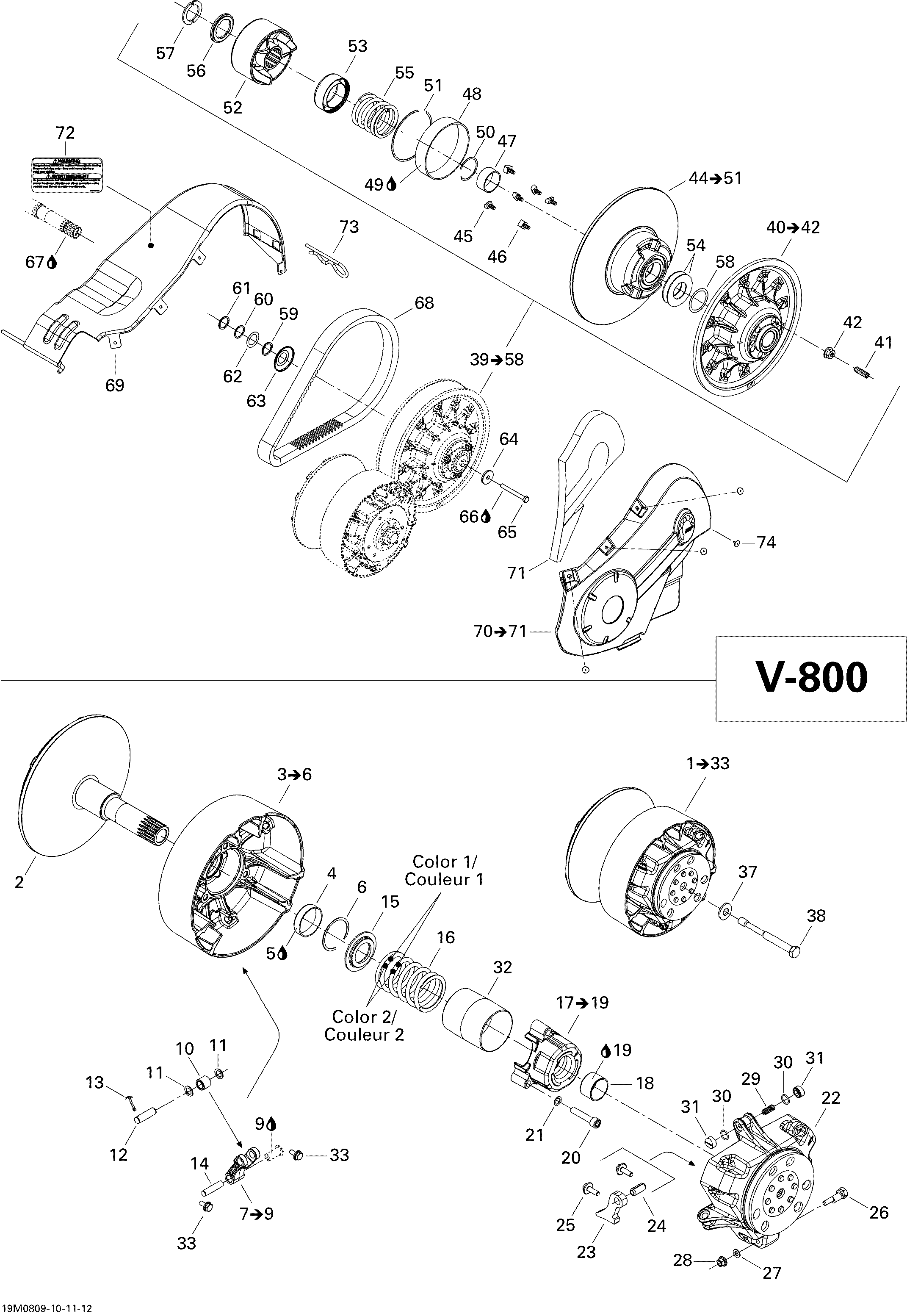

05- Pulley System для BRP Ski-Doo Expedition Sport V-800 - 2008
-
№АртикулНазвание
-
2417222969 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'y. Includes 7 to 9Lever Ass'y. Includes 7 to 9
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417222947 RollerRoller
-
11417004302 Stopper WasherStopper Washer
-
12417222594 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16414817500 Clutch Spring, Red/yellowClutch Spring, Red/yellow
-
17417007500 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417223034 Governor Cup Ass'yGovernor Cup Ass'y
-
23417222940 Ramp 616Ramp 616
-
24250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
25250000059 Hex. Flanged Scew M6 X 18Hex. Flanged Scew M6 X 18
-
26417222955 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
30732401030 O-RingO-Ring
-
31417223021 Slider ShoeSlider Shoe
-
32417009205 GuardGuard
-
33210361296 Hex. Forming Screw M6 X 12Hex. Forming Screw M6 X 12
-
37250200006 Spring Washer 14 mmSpring Washer 14 mm
-
38417120000 Drive Pulley BoltDrive Pulley Bolt
-
40417127022 Fixed Flange Ass'yFixed Flange Ass'y
-
41206262599 Socket Set ScrewSocket Set Screw
-
42233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
44417126909 Sliding Flange Ass'y. Includes 44 to 51Sliding Flange Ass'y. Includes 44 to 51
-
45417126373 Rear Cam Slider Shoe, RedRear Cam Slider Shoe, Red
-
46417126374 Front Cam Slider Shoe, BlackFront Cam Slider Shoe, Black
-
47417126901 BushingBushing
-
48417126902 BushingBushing
-
49413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
50371911200 CirclipCirclip
-
51417126878 CirclipCirclip
-
52417126574 Cam Ass'yCam Ass'y
-
53417126381 GuardGuard
-
54504099600 Stopper WasherStopper Washer
-
55417126735 Release Spring, pinkRelease Spring, pink
-
56417126733 SpacerSpacer
-
57417126734 Half KeyHalf Key
-
58504112300 ShimShim
-
59417300252 SpacerSpacer
-
60417300265 SpacerSpacer
-
61417300252 SpacerSpacer
-
62504112000 ShimShim
-
63417300238 ProtectorProtector
-
64517302322 Strength WasherStrength Washer
-
65207087544 Hex. Screw M8 X 75Hex. Screw M8 X 75
-
66293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
67293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
68417300197 Drive BeltDrive Belt
-
69417300323 Belt GuardBelt Guard
-
70417300301 Side Protector Ass'y. Includes 70 to 71Side Protector Ass'y. Includes 70 to 71
-
71417300246 FoamFoam
-
72516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
73114045200 Hair PinHair Pin
-
74293150103 Pop RivetPop Rivet
