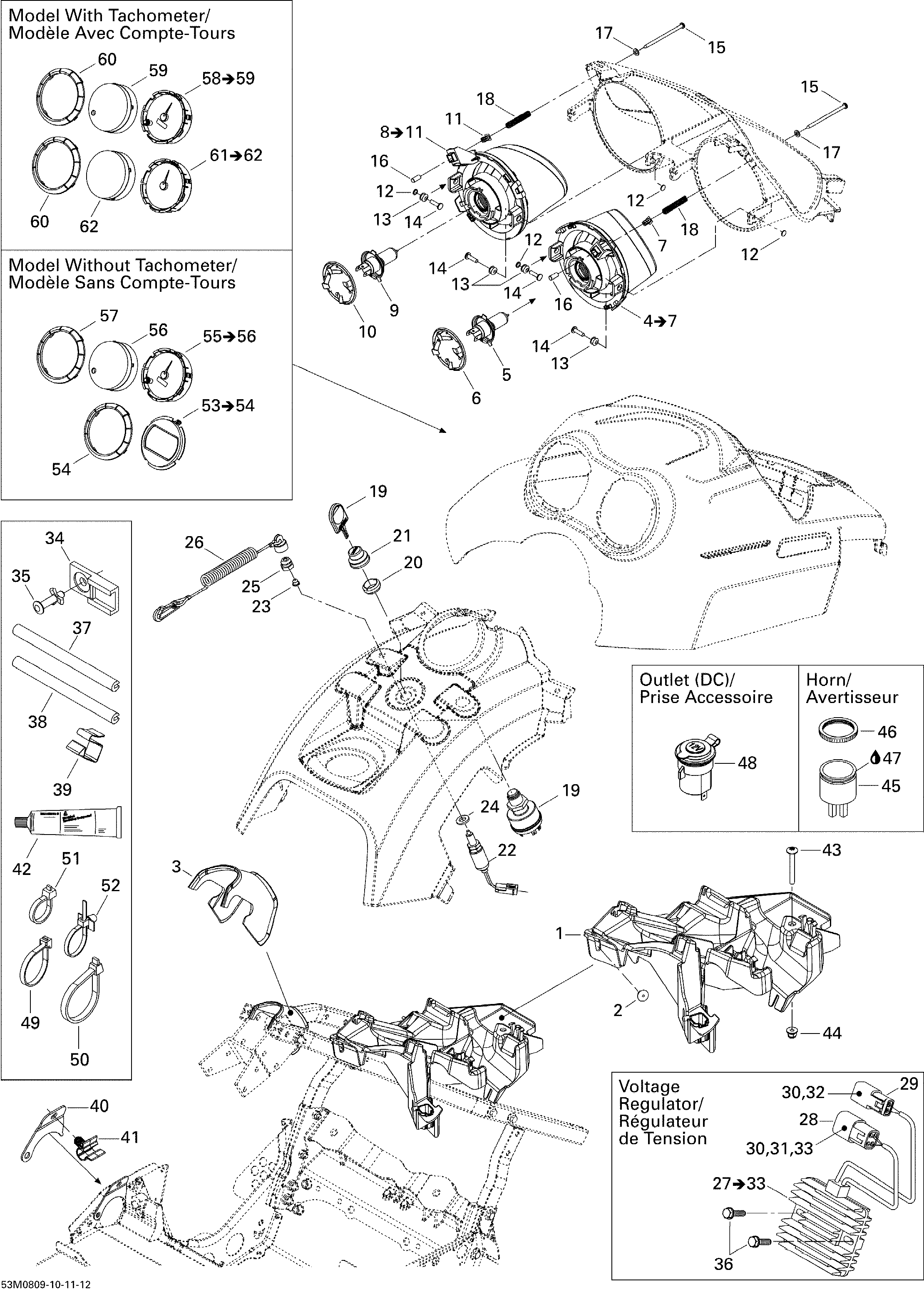

10- Electrical Accessories для BRP Ski-Doo Expedition Sport V-800 - 2008
-
№АртикулНазвание
-
1515176336 PlatePlate
-
2293150103 Pop RivetPop Rivet
-
3515176321 ProtectorProtector
-
4515176168 RH Headlamp Ass'y. Includes 4 to 7RH Headlamp Ass'y. Includes 4 to 7
-
5515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
6515176385 Bulb HolderBulb Holder
-
7515176339 Plastic InsertPlastic Insert
-
8515176169 LH Headlamp Ass'y. Includes 8 to 11LH Headlamp Ass'y. Includes 8 to 11
-
9515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
10515176385 Bulb HolderBulb Holder
-
11515176339 Plastic InsertPlastic Insert
-
12389804300 Push NutPush Nut
-
13515176289 Headlamp BushingHeadlamp Bushing
-
14390906200 Flat Head Steel RivetFlat Head Steel Rivet
-
15250000244 Phillips Screw #8 X 3''Phillips Screw #8 X 3''
-
16515176370 CapCap
-
17234051600 Flat Washer M5Flat Washer M5
-
18515176353 SpringSpring
-
19515176548 Ignition SwitchIgnition Switch
-
20410112100 Face NutFace Nut
-
21570013700 Switch BootSwitch Boot
-
22515175653 Brake SwitchBrake Switch
-
23570151100 Plunger CapPlunger Cap
-
24503183500 WasherWasher
-
25515145900 Switch NutSwitch Nut
-
26515176463 Cap Ass'yCap Ass'y
-
27515175968 Voltage Regulator. Includes 27 to 32Voltage Regulator. Includes 27 to 32
-
28278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
29278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
30515175568 Male TerminalMale Terminal
-
31278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
32278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
33293000052 Sealing CapSealing Cap
-
34515175917 ClipClip
-
35293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
36210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
37509000263 TrimTrim
-
38271000110 Protection TrimProtection Trim
-
39414227300 ClipClip
-
40515176465 PlatePlate
-
41275500528 Hose RetainerHose Retainer
-
42293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
43250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
44233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
45515176035 HornHorn
-
46414805101 Plastic NutPlastic Nut
-
47296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
49414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
50293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
51293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
52293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
53515176373 Gauge Bottom Ring Ass'y. Includes 53 to 54Gauge Bottom Ring Ass'y. Includes 53 to 54
-
54515176242 Gauge RingGauge Ring
-
55515176477 Speedometer. Includes 55 to 56Speedometer. Includes 55 to 56
-
56415129319 LensLens
-
57515176242 Gauge RingGauge Ring
