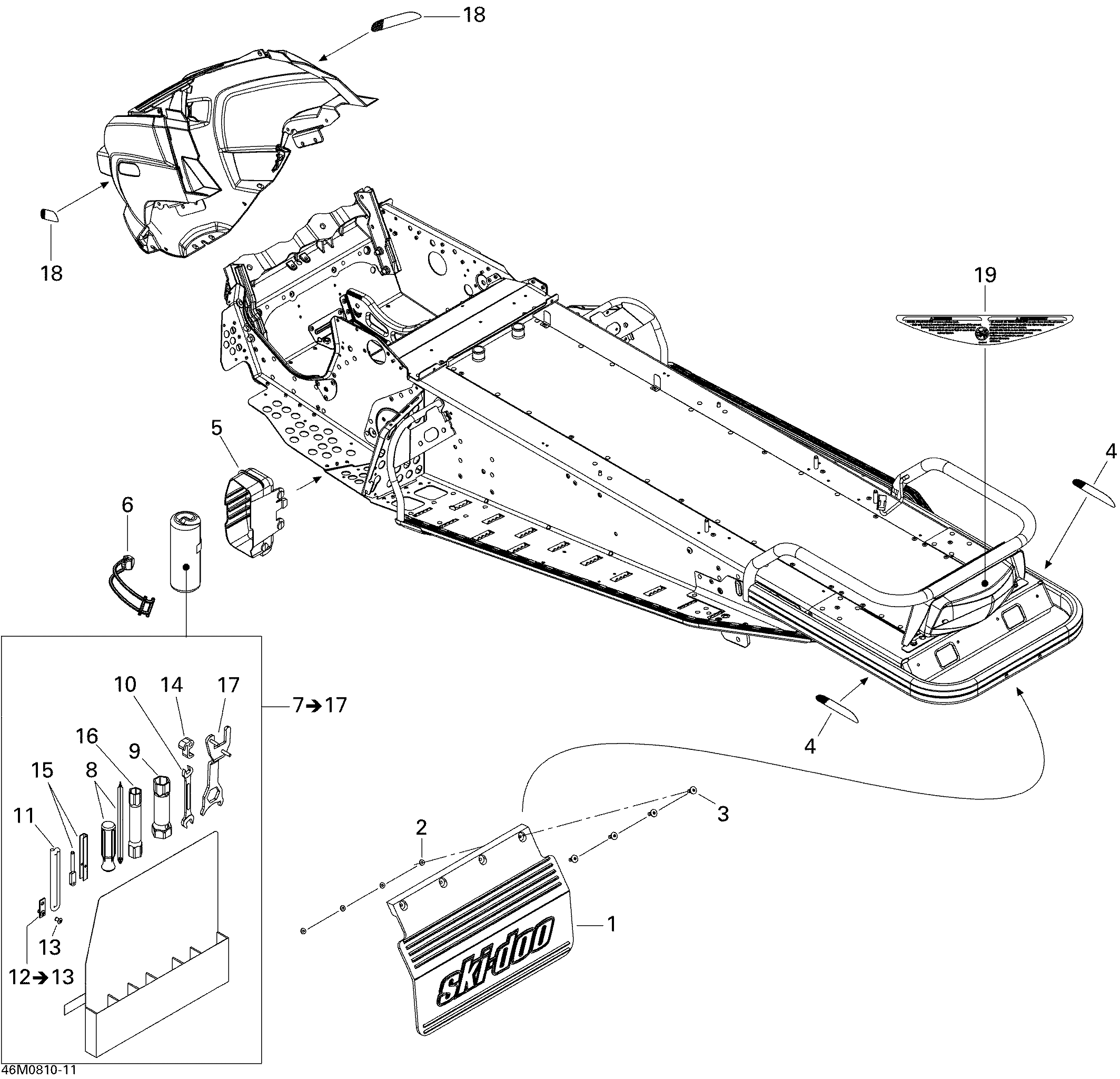

09- Utilities для BRP Ski-Doo Expedition Sport V-800 - 2008
-
№АртикулНазвание
-
1520000606 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
4520000523 ReflectorReflector
-
5520000322 TrunkTrunk
-
6520000528 LatchLatch
-
7529000036 Tool Kit. Includes 7 to 17Tool Kit. Includes 7 to 17
-
8529000004 Driver ScrewDriver Screw
-
9529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
10529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
11412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
12529024400 Rope Adaptor. Includes 12 to 13Rope Adaptor. Includes 12 to 13
-
13390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
14529019400 Starter GripStarter Grip
-
15529035501 Spacing ToolSpacing Tool
-
16295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
17520000721 WrenchWrench
-
18520000525 ReflectorReflector
-
19520000611 Security LabelSecurity Label
