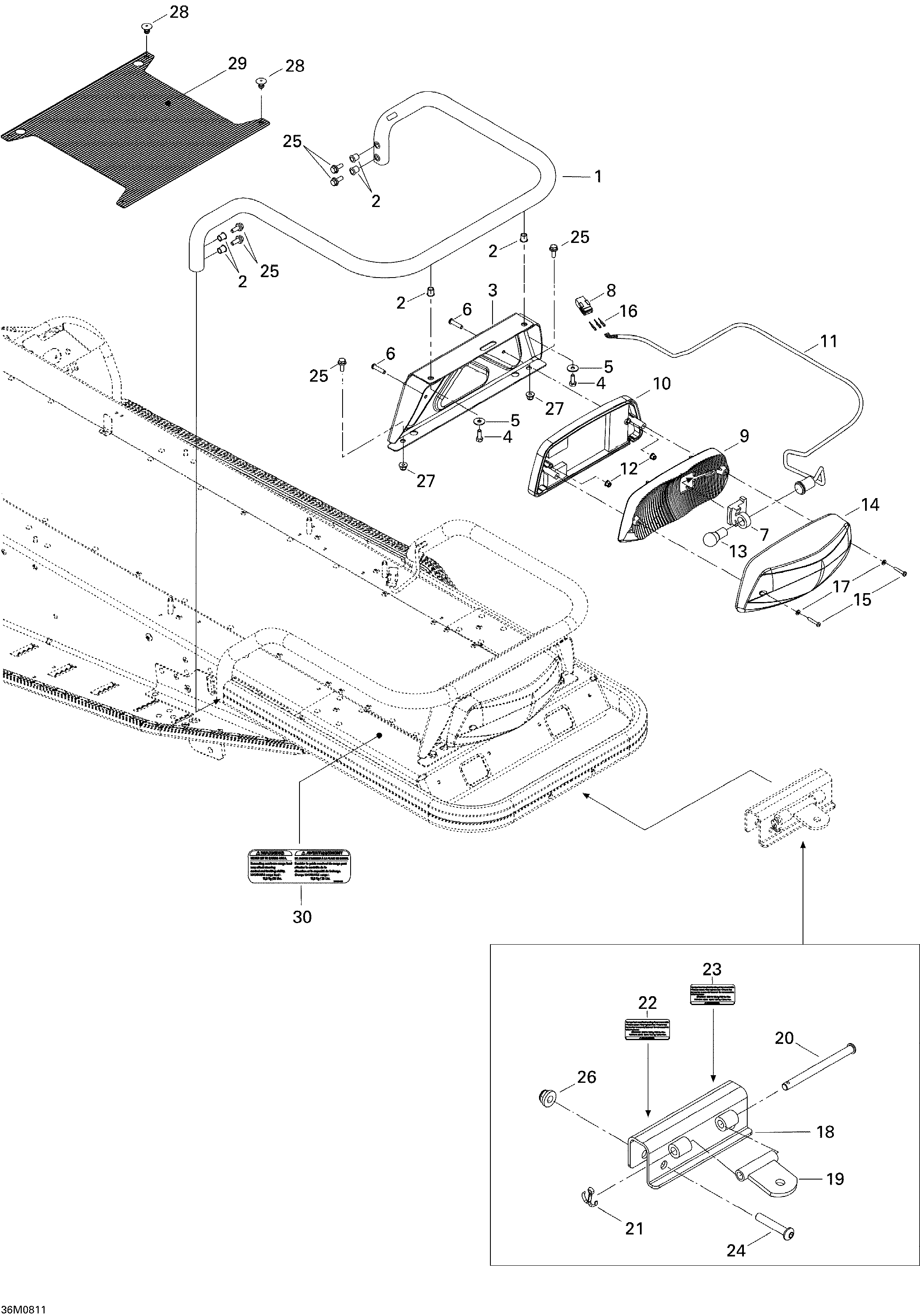

09- Luggage Rack для BRP Ski-Doo Expedition Sport V-800 - 2008
-
№АртикулНазвание
-
1511000422 Luggage RackLuggage Rack
-
2415107300 InsertInsert
-
3511000187 Rear Light SupportRear Light Support
-
4207161644 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
5391302000 Flat WasherFlat Washer
-
6205452560 Socket Screw M5 X 25Socket Screw M5 X 25
-
7511000431 Bulb SupportBulb Support
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9510004442 ReflectorReflector
-
10515176272 Rear Light HousingRear Light Housing
-
11511000448 Bulb SocketBulb Socket
-
12233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
13410504100 Tail Light BulbTail Light Bulb
-
14511000315 LensLens
-
15209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
16515175232 Male TerminalMale Terminal
-
17414516400 WasherWasher
-
18511000524 hitch, blackhitch, black
-
19511000521 Hitch Plate WeldedHitch Plate Welded
-
20511000520 clevis pinclevis pin
-
21371800200 Cotter PinCotter Pin
-
22516003037 Security LabelSecurity Label
-
23516003038 Security Label, FrenchSecurity Label, French
-
24205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
25207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
26233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
27233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
28293150103 Pop RivetPop Rivet
-
29511000495 CarpetCarpet
-
30516003039 Maximum Cargo Load LabelMaximum Cargo Load Label
