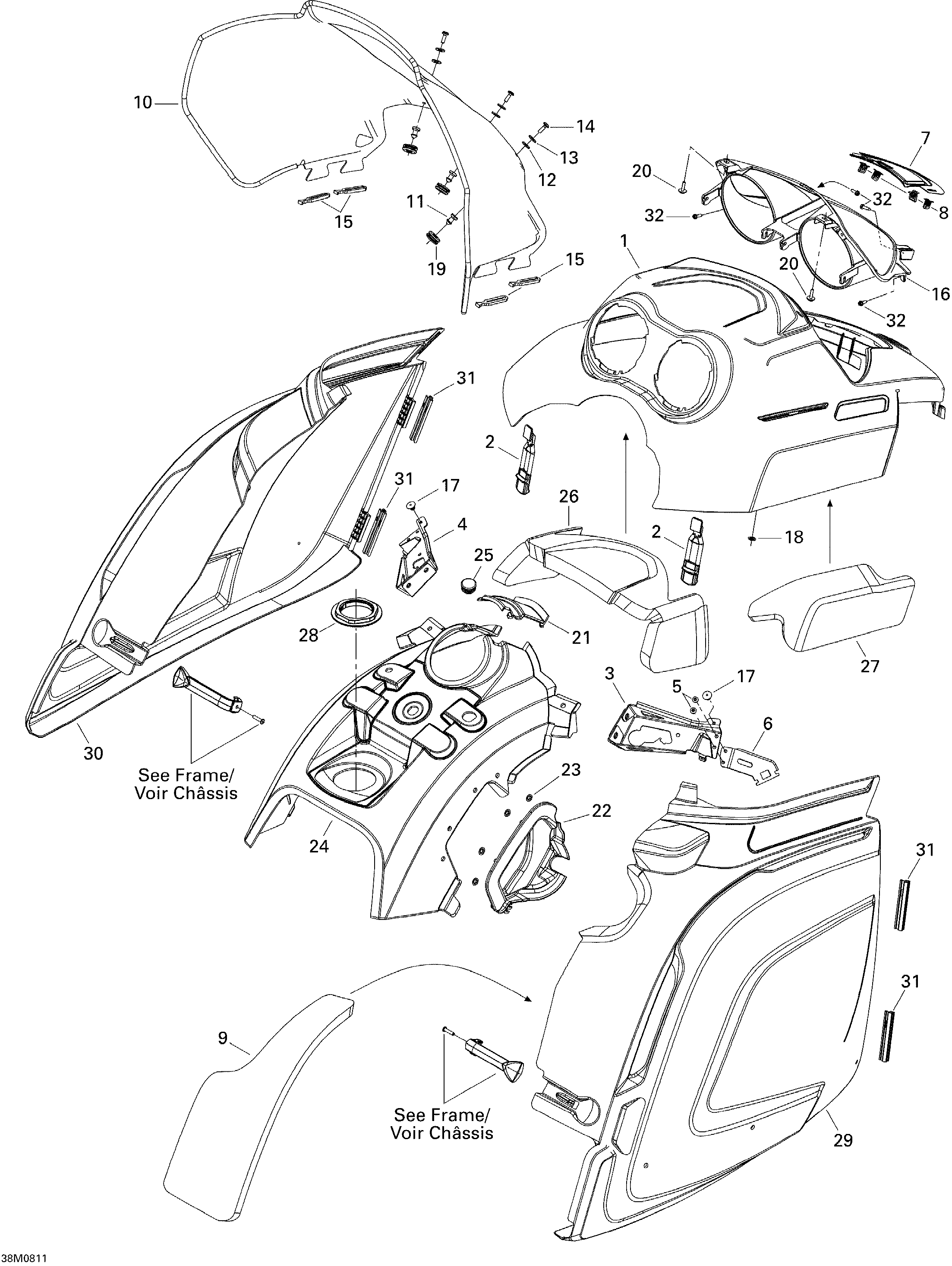

09- Hood для BRP Ski-Doo Expedition Sport V-800 - 2008
-
№АртикулНазвание
-
1517303525 HoodHood
-
2517303518 LatchLatch
-
3517303662 RH BracketRH Bracket
-
4517303663 LH BracketLH Bracket
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517303517 BracketBracket
-
7517303331 Center Hood GrillCenter Hood Grill
-
8517302785 ClipClip
-
9517303457 RH Panel Foam, RearRH Panel Foam, Rear
-
10517303440 Windshield, HighWindshield, High
-
11517303439 KnobKnob
-
12250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
13250200025 Washer M5Washer M5
-
14250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
15570023800 Windshield LatchWindshield Latch
-
16517303692 MouldingMoulding
-
17293150103 Pop RivetPop Rivet
-
18732610072 Push NutPush Nut
-
19517302841 GrommetGrommet
-
20250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
21517303458 Console CapConsole Cap
-
22517303589 RH ConsoleRH Console
-
23732610072 Push NutPush Nut
-
24517303641 Center ConsoleCenter Console
-
25706200474 CapCap
-
26517303664 Hood FoamHood Foam
-
27517303486 RH Hood FoamRH Hood Foam
-
28517302575 Console NutConsole Nut
-
29517303644 RH PanelRH Panel
-
30517303633 LH PanelLH Panel
-
31517302823 Hinge LockHinge Lock
-
32250000068 Hex. Tapping Screw #8 X 5/8''Hex. Tapping Screw #8 X 5/8''
