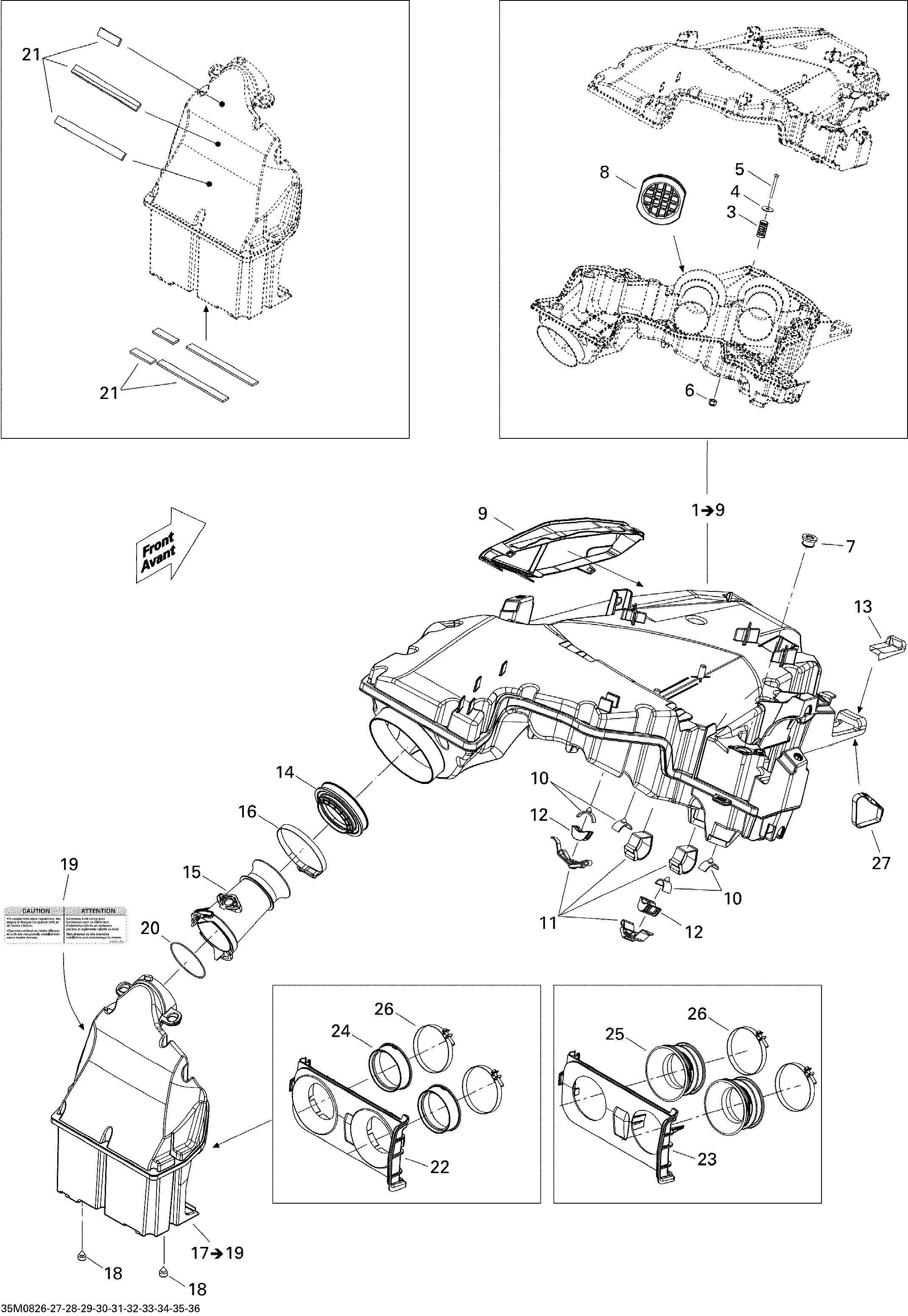

02- Air Intake System для BRP Ski-Doo GSX LTD TOURING 600 HO SDI - 2008
-
№АртикулНазвание
-
1508000608 Secondary Chamber Ass'y. Includes 1 to 9Secondary Chamber Ass'y. Includes 1 to 9
-
3508000576 SpringSpring
-
4224060201 Flat WasherFlat Washer
-
5205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
6232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
7508000574 GrommetGrommet
-
8508000590 CapCap
-
9508000568 Air FilterAir Filter
-
10508000537 StopperStopper
-
11508000532 Strip VelcroStrip Velcro
-
12508000572 BumperBumper
-
13508000581 Reflective SheetReflective Sheet
-
14508000567 BootBoot
-
15508000542 Intake AdapterIntake Adapter
-
16514052924 Norma ClampNorma Clamp
-
17508000473 Primary Chamber Ass'y. Includes 17 to 19Primary Chamber Ass'y. Includes 17 to 19
-
18293830005 Rubber Plug, BlackRubber Plug, Black
-
19516003371 Caution Label, Air IntakeCaution Label, Air Intake
-
20293300115 O-RingO-Ring
-
21293250087 GasketGasket
-
23508000605 Plate AdapterPlate Adapter
-
25508000573 Air Intake AdapterAir Intake Adapter
-
26508000346 Gemi ClampGemi Clamp
-
27508000599 Velcro StripVelcro Strip
