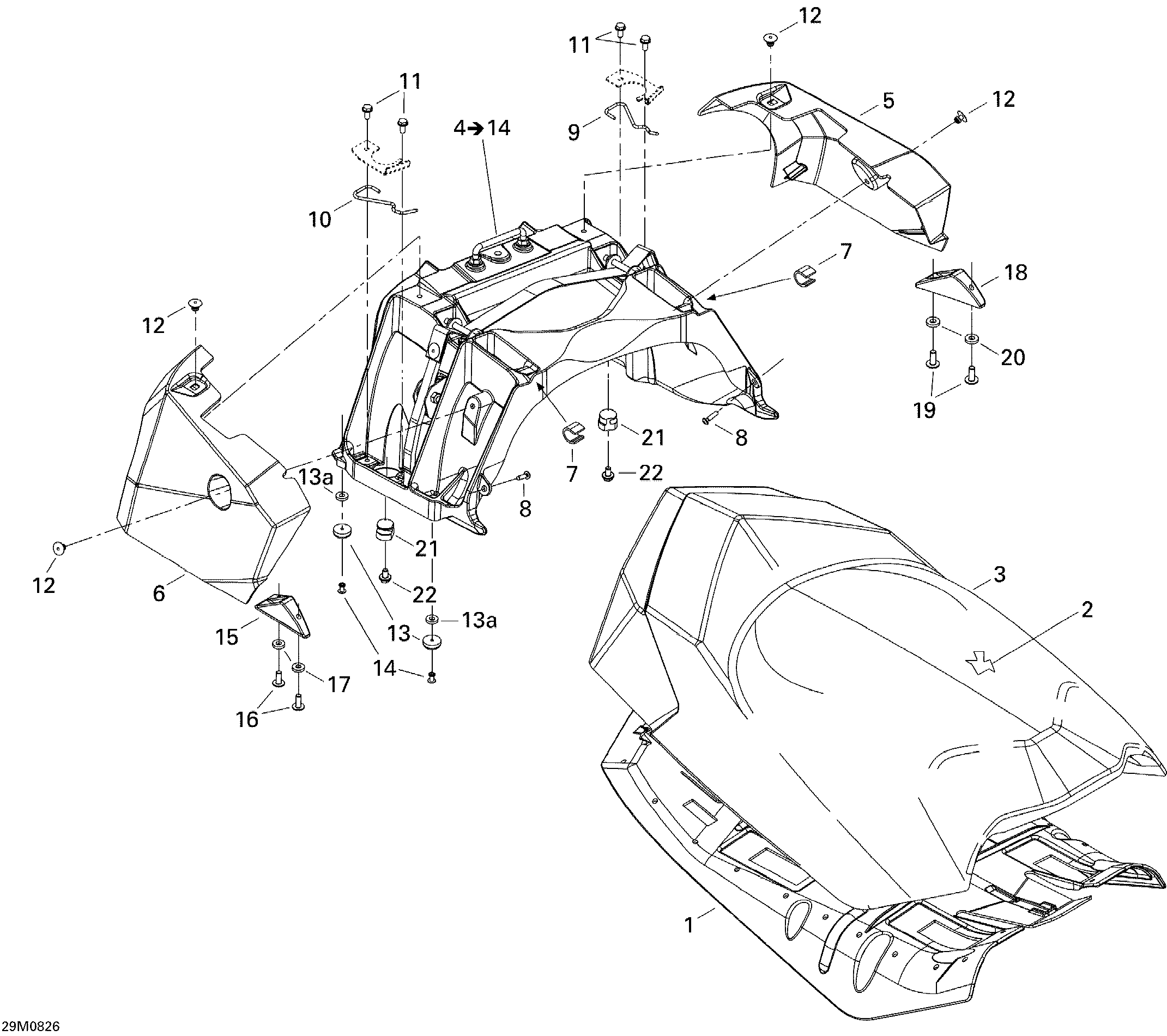

09- Seat для BRP Ski-Doo GSX LTD TOURING 600 HO SDI - 2008
-
№АртикулНазвание
-
1510004689 Seat BaseSeat Base
-
2510004696 Seat FoamSeat Foam
-
3510004862 Seat CoverSeat Cover
-
4510004831 Seat Supprot Ass'y. Includes 4 to 14Seat Supprot Ass'y. Includes 4 to 14
-
5510004832 LH CoverLH Cover
-
6510004833 RH CoverRH Cover
-
7510004891 AntivibrationAntivibration
-
8250000287 Allen Flanged Screw K40x16Allen Flanged Screw K40x16
-
9510004835 SpringSpring
-
10510004892 SpringSpring
-
11210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
12293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13415018100 Rubber StopperRubber Stopper
-
13a391303100 Flat WasherFlat Washer
-
14293150001 Pop Rivet 1/8'', BlackPop Rivet 1/8'', Black
-
15518325710 Seat AnchorSeat Anchor
-
16250000223 Torx ScrewTorx Screw
-
17250200096 Flat WasherFlat Washer
-
18518325709 Seat AnchorSeat Anchor
-
19250000223 Torx ScrewTorx Screw
-
20250200096 Flat WasherFlat Washer
-
21510004908 Seat StudSeat Stud
-
22207561044 Hex. Flanged Screw S.grip M6 X 10Hex. Flanged Screw S.grip M6 X 10
