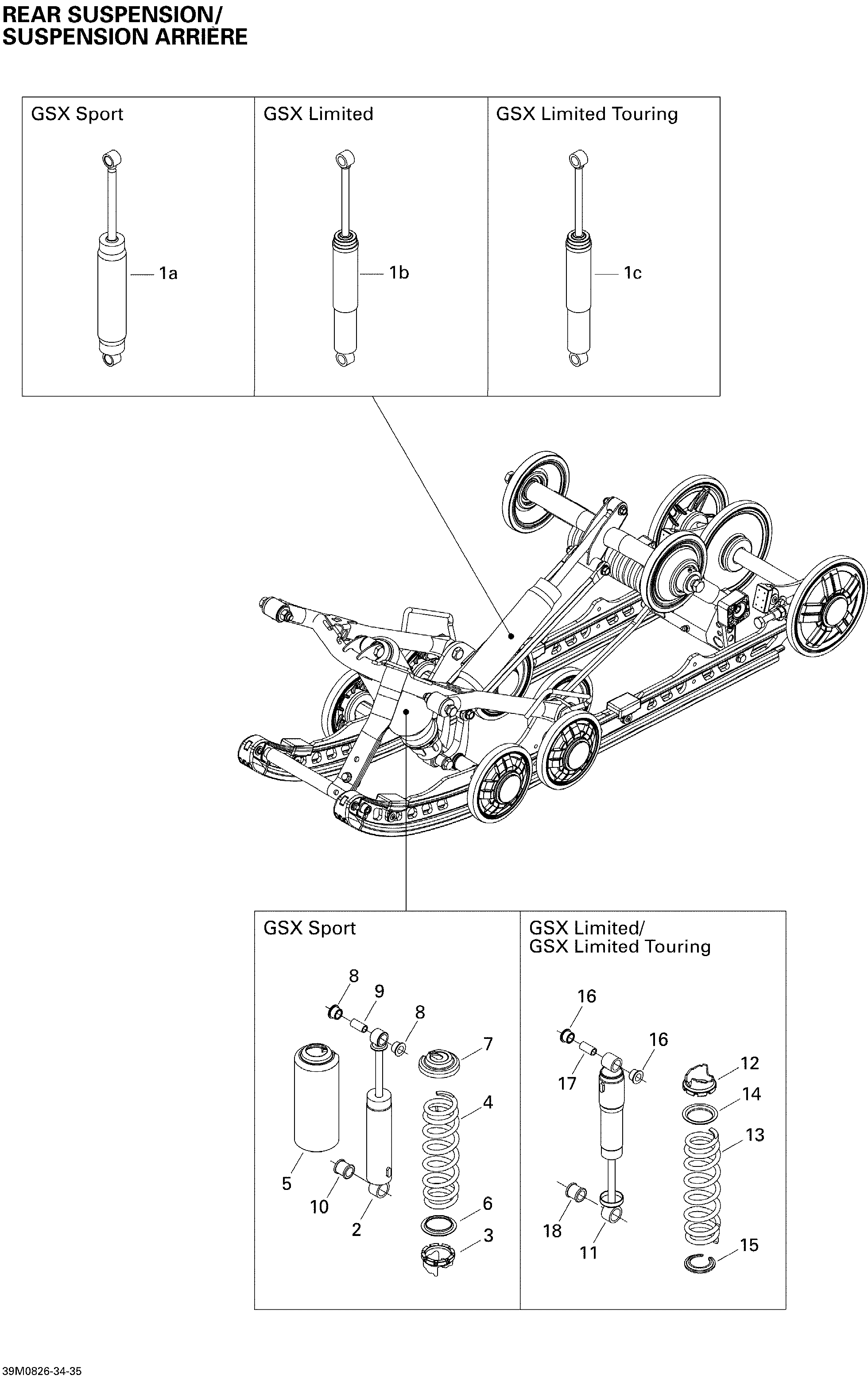

08- Rear Suspension Shocks для BRP Ski-Doo GSX LTD TOURING 600 HO SDI - 2008
-
№АртикулНазвание
-
1c503191589 Rear ShockRear Shock
-
11503191758 Center ShockCenter Shock
-
12505070150 Adjustment CamAdjustment Cam
-
13503191329 SpringSpring
-
14503191872 Spring GuideSpring Guide
-
15503191535 Spring StopperSpring Stopper
-
16503189117 CushionCushion
-
17503189282 BushingBushing
-
18503189271 CushionCushion
