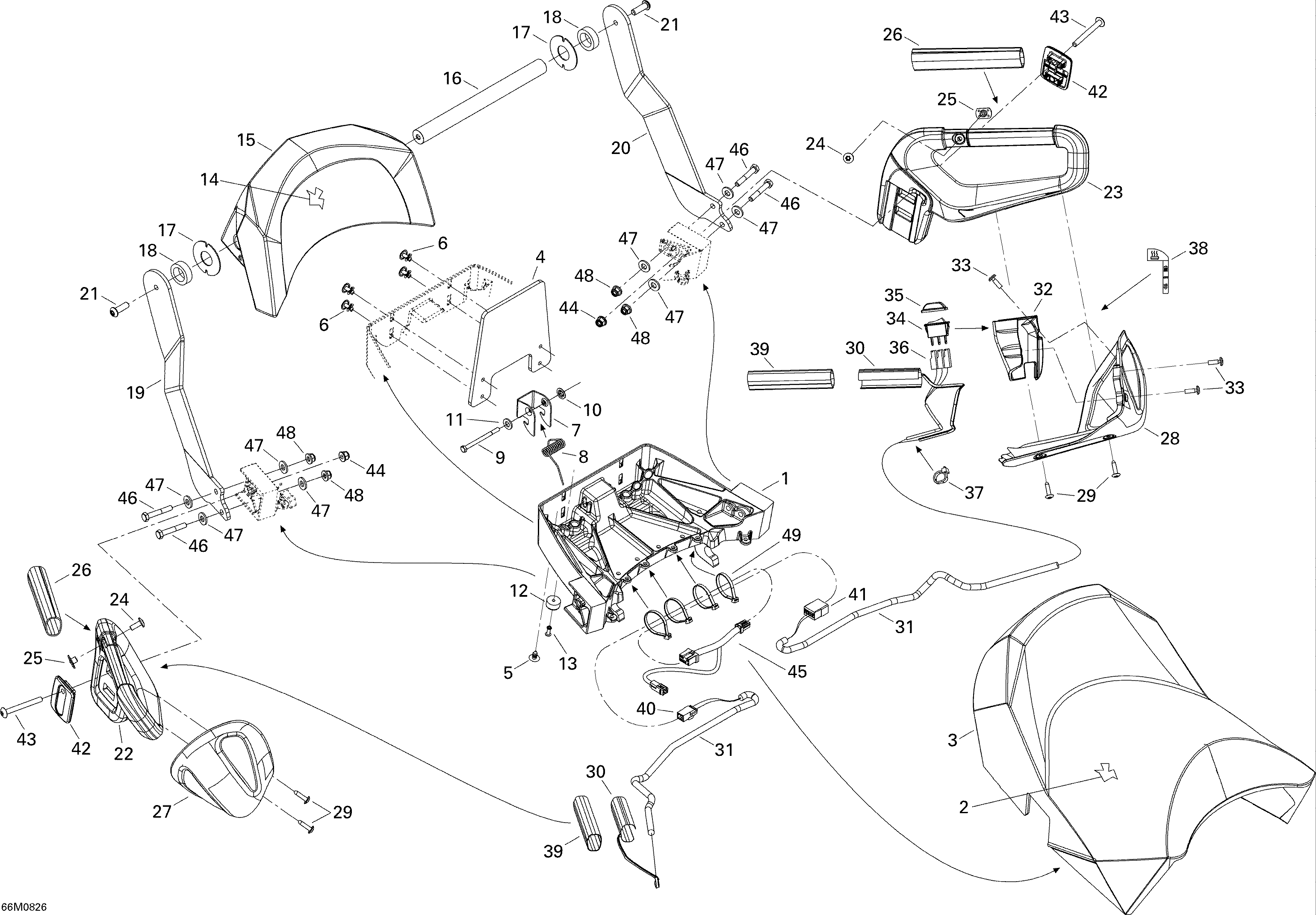

09- Backrest And Handles для BRP Ski-Doo GSX LTD TOURING 600 HO SDI - 2008
-
№АртикулНазвание
-
1510004816 Seat BaseSeat Base
-
2510004820 Seat FoamSeat Foam
-
3510004910 Seat CoverSeat Cover
-
4510004817 Backrest PlateBackrest Plate
-
5414644300 DartDart
-
6293150067 RivetRivet
-
7708000144 Latch, BlackLatch, Black
-
8708000369 SpringSpring
-
9207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
10732610072 Push NutPush Nut
-
11234061410 Flat Washer 6 mmFlat Washer 6 mm
-
12510004903 Rubber StopperRubber Stopper
-
13293150015 Pop Rivet 1/8''Pop Rivet 1/8''
-
14510004841 Backrest FoamBackrest Foam
-
15510004913 Backrest CoverBackrest Cover
-
16510004843 Backrest AxleBackrest Axle
-
17510004379 WasherWasher
-
18510004378 Rubber ShimRubber Shim
-
19510004845 RH Backrest ArmRH Backrest Arm
-
20510004844 LH Backrest ArmLH Backrest Arm
-
21250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
22510004948 RH HandleRH Handle
-
23510004947 LH HandleLH Handle
-
24250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
25293100003 Nut M6Nut M6
-
26510004449 Handle GripHandle Grip
-
27510004415 RH DeflectorRH Deflector
-
28510004416 LH DeflectorLH Deflector
-
29250000199 Screw 25mmScrew 25mm
-
30515176393 HeaterHeater
-
31515175506 TubingTubing
-
32510004566 Switch HousingSwitch Housing
-
33250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
34510004413 Rocker SwitchRocker Switch
-
35510004414 Protector SwitchProtector Switch
-
36515176241 LH Handle HarnessLH Handle Harness
-
37414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38516002835 Handle Heater DecalHandle Heater Decal
-
39510004709 Handle ReinforforcementHandle Reinforforcement
-
40515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
41515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
42510004405 MouldingMoulding
-
43250000327 Torx Truss Screw M8 X 75Torx Truss Screw M8 X 75
-
44233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
45515176170 Seat HarnessSeat Harness
-
46207085044 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
47503189157 WasherWasher
-
48232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
49414115200 Tie-Rap 180 mmTie-Rap 180 mm
