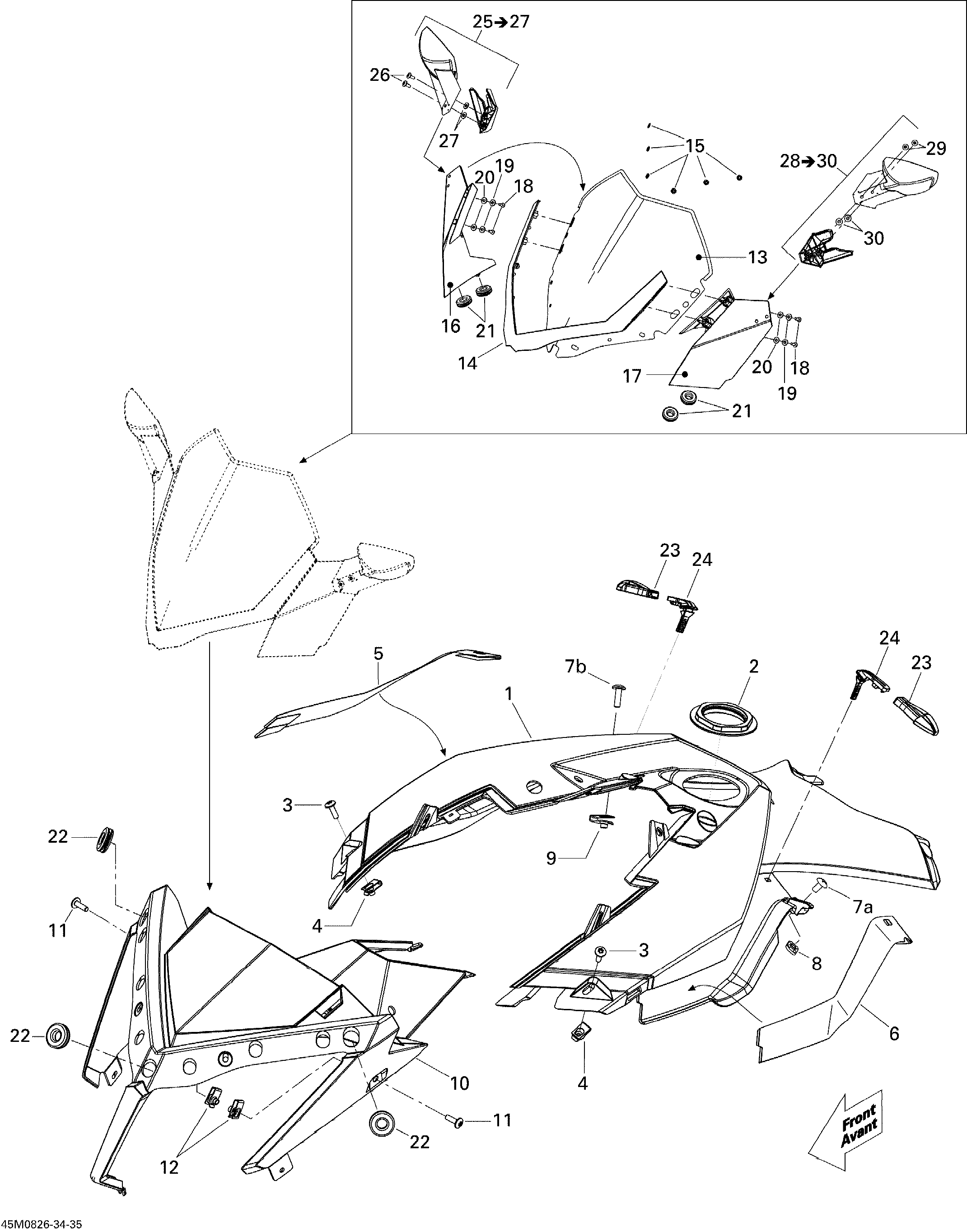

09- Windshield And Console для BRP Ski-Doo GSX LTD TOURING 600 HO SDI - 2008
-
№АртикулНазвание
-
1517303927 Console, RedConsole, Red
-
2517302575 Console NutConsole Nut
-
3250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5517304103 RH DecalRH Decal
-
6517304104 LH DecalLH Decal
-
7A250000353 Phillips Screw M8 X 12Phillips Screw M8 X 12
-
7b250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8250100106 Weld Nut M6Weld Nut M6
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10517303603 Indicator SupportIndicator Support
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13517303758 High WindshieldHigh Windshield
-
14517303607 Windshield SupportWindshield Support
-
15732610072 Push NutPush Nut
-
16517303791 RH Air DeflectorRH Air Deflector
-
17517303792 LH Air DeflectorLH Air Deflector
-
18250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
19250200025 Washer M5Washer M5
-
20250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
21517303756 GrommetGrommet
-
22517303756 GrommetGrommet
-
23517303980 End Piece, Grey VolcanoEnd Piece, Grey Volcano
-
24517303981 Panel LatchPanel Latch
-
25517304145 RH Mirror Ass'y. Includes 25 to 27RH Mirror Ass'y. Includes 25 to 27
-
26250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
27250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
28517304146 LH Mirror Ass'y. Includes 28 to 30LH Mirror Ass'y. Includes 28 to 30
-
29250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
30250200024 Rubber Washer 5 mmRubber Washer 5 mm
