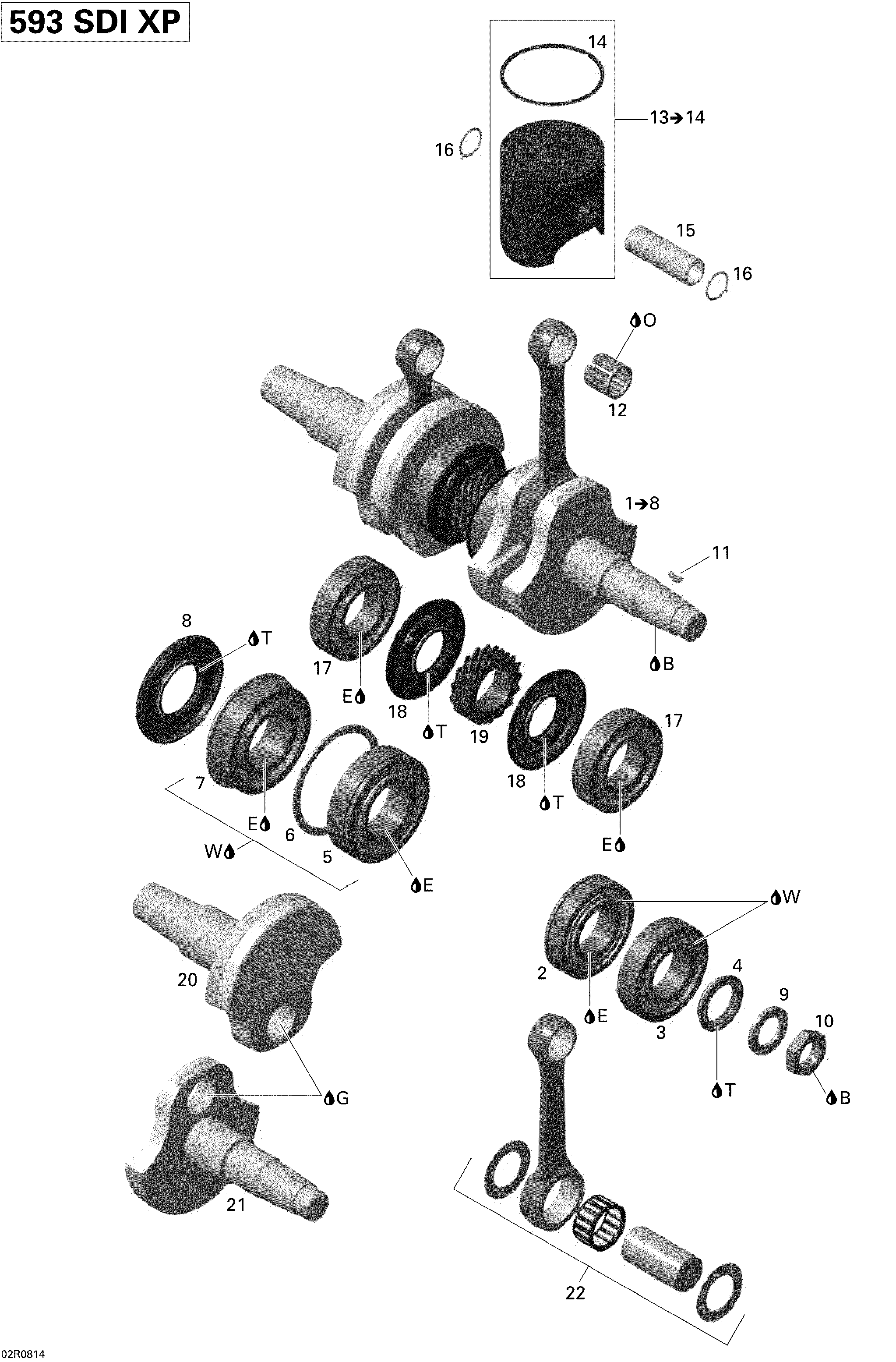

01- Crankshaft And Pistons для BRP Ski-Doo MX Z ADRENALINE 600 HO SDI - 2008
-
№АртикулНазвание
-
1420890952 Crankshaft Ass'y. Includes 1 to 8Crankshaft Ass'y. Includes 1 to 8
-
2420832638 Ball BearingBall Bearing
-
3420832575 Ball BearingBall Bearing
-
4420931792 Oil SealOil Seal
-
5420832608 Ball BearingBall Bearing
-
6420926190 WasherWasher
-
7420832700 Ball BearingBall Bearing
-
8420931285 Oil SealOil Seal
-
9420945759 Lock WasherLock Washer
-
10420842234 Hex. Nut M22Hex. Nut M22
-
11420246015 Woodruff KeyWoodruff Key
-
12420832445 Needle BearingNeedle Bearing
-
13420889187 Piston Ass'y With Rings, 71.89 mm. Includes 13 to 14Piston Ass'y With Rings, 71.89 mm. Includes 13 to 14
-
14420815295 Semi-Trapez RingSemi-Trapez Ring
-
15420916411 Piston PinPiston Pin
-
16420845106 Piston CirclipPiston Circlip
-
17420832575 Ball BearingBall Bearing
-
18420931455 Oil SealOil Seal
-
19420834355 Central GearCentral Gear
-
22420684653 Rod Repair Kit, MAG SideRod Repair Kit, MAG Side
-
22420684654 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
E293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
G413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
O413802900 Injection Oil, 12 X 1 LiterInjection Oil, 12 X 1 Liter
-
T420899271 Petamo Grease, GHY133N, 400 GPetamo Grease, GHY133N, 400 G
-
W293550021 Isoflex Grease, 50 G, Topas NB52Isoflex Grease, 50 G, Topas NB52
