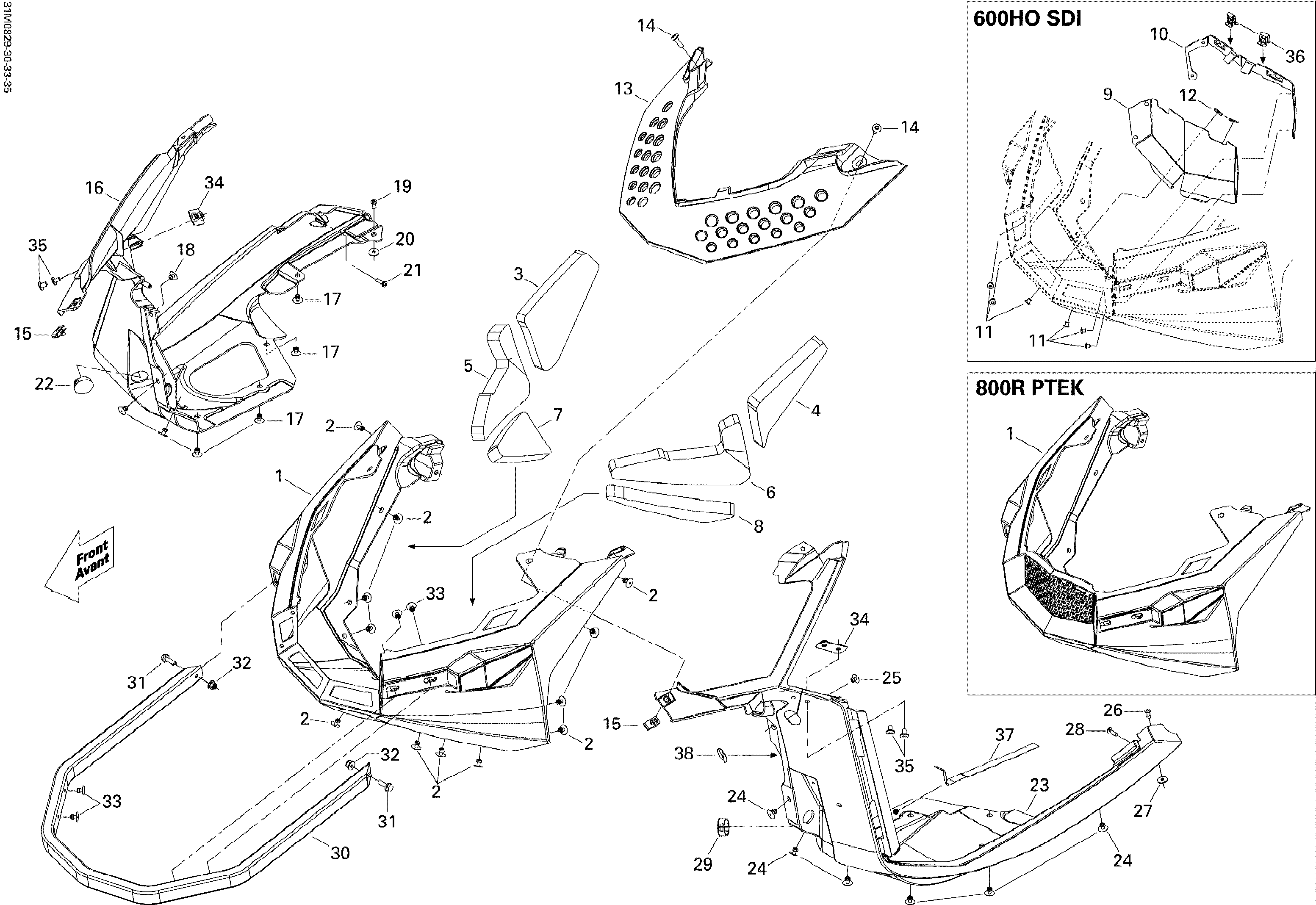

09- Bottom Pan 600HO SDI для BRP Ski-Doo MX Z ADRENALINE 600 HO SDI - 2008
-
№АртикулНазвание
-
1502006941 Front Bottom Pan. 600HO SDIFront Bottom Pan. 600HO SDI
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3502006829 RH Foam UpperRH Foam Upper
-
4502006830 LH Foam UpperLH Foam Upper
-
5502006906 RH Middle FoamRH Middle Foam
-
6502006907 LH Middle FoamLH Middle Foam
-
7502006908 RH Lower FoamRH Lower Foam
-
8502006909 LH Lower FoamLH Lower Foam
-
9502006942 Bottom Pan Grill. 600HO SDIBottom Pan Grill. 600HO SDI
-
10502006943 Grill Bracket. 600HO SDIGrill Bracket. 600HO SDI
-
11293150102 Rivet 3/16. 600HO SDIRivet 3/16. 600HO SDI
-
12517124300 Washer. 600HO SDIWasher. 600HO SDI
-
13502006967 Bottom Pan CapBottom Pan Cap
-
14250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
15250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
16502006831 RH Bottom PanRH Bottom Pan
-
17293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293150103 Pop RivetPop Rivet
-
19390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
20517124300 WasherWasher
-
21250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
22414916600 Nylon CapNylon Cap
-
23502006832 LH Bottom PanLH Bottom Pan
-
24293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
25293150103 Pop RivetPop Rivet
-
26390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
27517124300 WasherWasher
-
28250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
29414916600 Nylon CapNylon Cap
-
30502006833 Front BumperFront Bumper
-
31207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
34502006949 PlatePlate
-
35250000210 Torx Truss Screw (Nylon Patch)Torx Truss Screw (Nylon Patch)
-
36517302785 Clip. 600HO SDIClip. 600HO SDI
-
37293250087 GasketGasket
-
38518325560 Adhesive PatchAdhesive Patch
