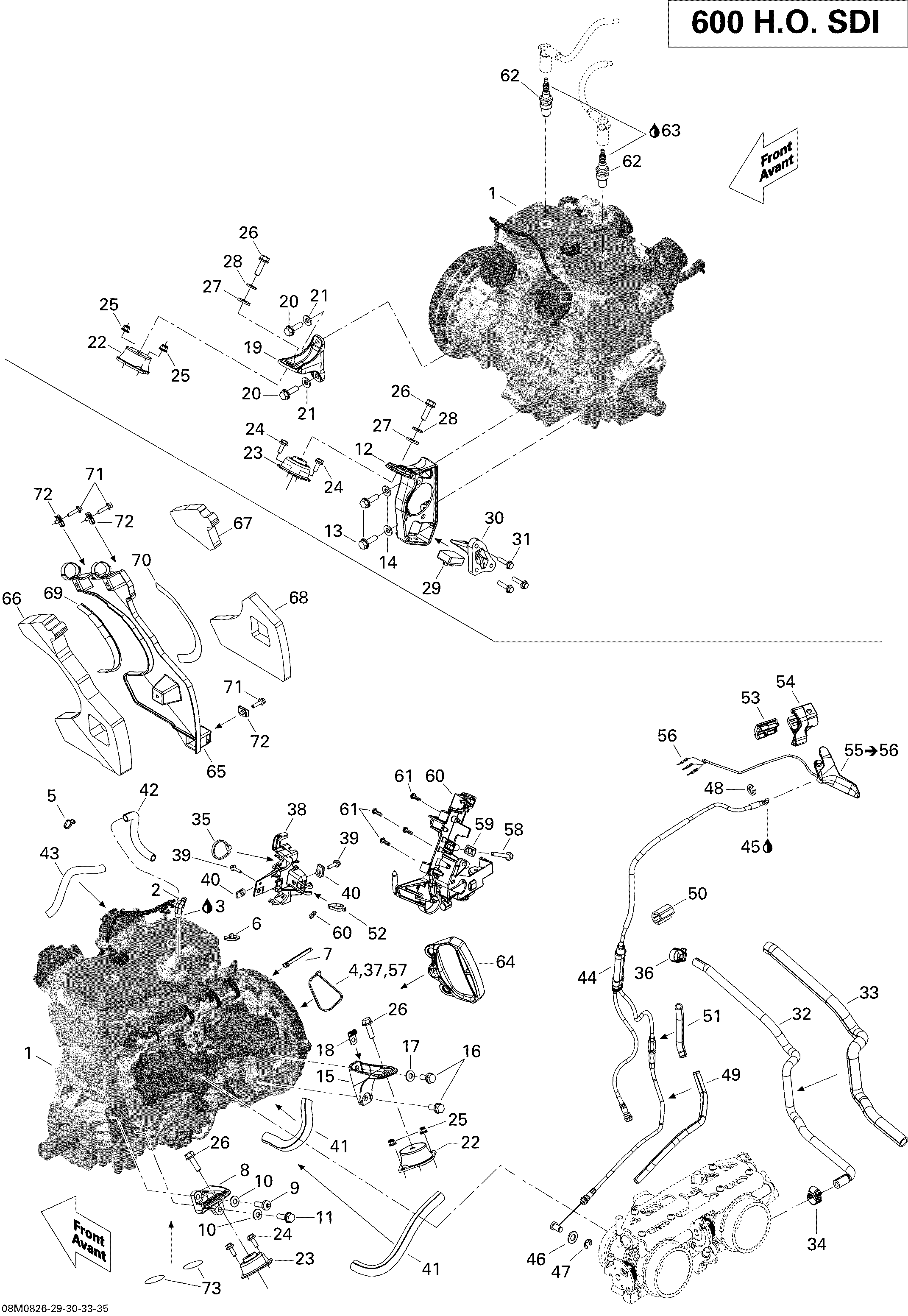

01- Engine And Engine Support 600 HO для BRP Ski-Doo MX Z ADRENALINE 600 HO SDI - 2008
-
№АртикулНазвание
-
1400604031 Engine 593 H.O. SDIEngine 593 H.O. SDI
-
2293700045 Elbow Fitting 90°Elbow Fitting 90°
-
3293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
4293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
5414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
6414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
7414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
8512060173 Rear PTO SupportRear PTO Support
-
9250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
10234281474 Conical Spring Washer M8Conical Spring Washer M8
-
11207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
12512060203 Front PTO SupportFront PTO Support
-
13207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15512060114 Rear MAG SupportRear MAG Support
-
16207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
17234281474 Conical Spring Washer M8Conical Spring Washer M8
-
18415052400 AttacheAttache
-
19512060108 Front MAG SupportFront MAG Support
-
20207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
21234281474 Conical Spring Washer M8Conical Spring Washer M8
-
22512060246 Rubber MountRubber Mount
-
23512060387 Rubber MountRubber Mount
-
24207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
25233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
27503183200 Washer, YellowWasher, Yellow
-
28234281474 Conical Spring Washer M8Conical Spring Washer M8
-
29512060179 StopperStopper
-
30512060180 Stopper SupportStopper Support
-
31207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
32512060349 Formed Hose Output TBFormed Hose Output TB
-
33415080000 Tubing 16 mmTubing 16 mm
-
34293650170 Hose ClampHose Clamp
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36293650025 Oetiker ClampOetiker Clamp
-
37414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38512060298 Solenoid SupportSolenoid Support
-
39207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
40250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
41409901800 Tubing 13 mmTubing 13 mm
-
42409901700 Tubing 9 mmTubing 9 mm
-
43415079900 Tubing 10 mmTubing 10 mm
-
44512060397 Throttle CableThrottle Cable
-
45293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
46234081100 Flat Washer 8 mmFlat Washer 8 mm
-
47414753500 CirclipCirclip
-
48414274500 CirclipCirclip
-
49515175442 Tubing 6 mmTubing 6 mm
-
50512060313 ProtectorProtector
-
51415079900 Tubing 10 mmTubing 10 mm
-
52414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
53512060198 Upper HousingUpper Housing
-
54512060197 Lower HousingLower Housing
-
55512060219 Throttle Handle Ass'y. Includes 55 to 56Throttle Handle Ass'y. Includes 55 to 56
-
56515175232 Male TerminalMale Terminal
-
57293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
58250000213 Hex. Flanged Screw M6 X 1.0 X 45Hex. Flanged Screw M6 X 1.0 X 45
-
59293100003 Nut M6Nut M6
-
60512060279 Coil SupportCoil Support
-
61241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
62512060029 Spark Plug BR8ECSSpark Plug BR8ECS
-
63293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
64512060136 Starter GripStarter Grip
-
65512060339 Noise ShieldNoise Shield
-
66512060343 Interior Noise FoamInterior Noise Foam
-
67512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
68512060362 Lower Exterior Noise FoamLower Exterior Noise Foam
-
69512060358 Reflective SheetReflective Sheet
-
70512060371 Reflective SheetReflective Sheet
-
71207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
72250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
73518325560 Adhesive PatchAdhesive Patch
