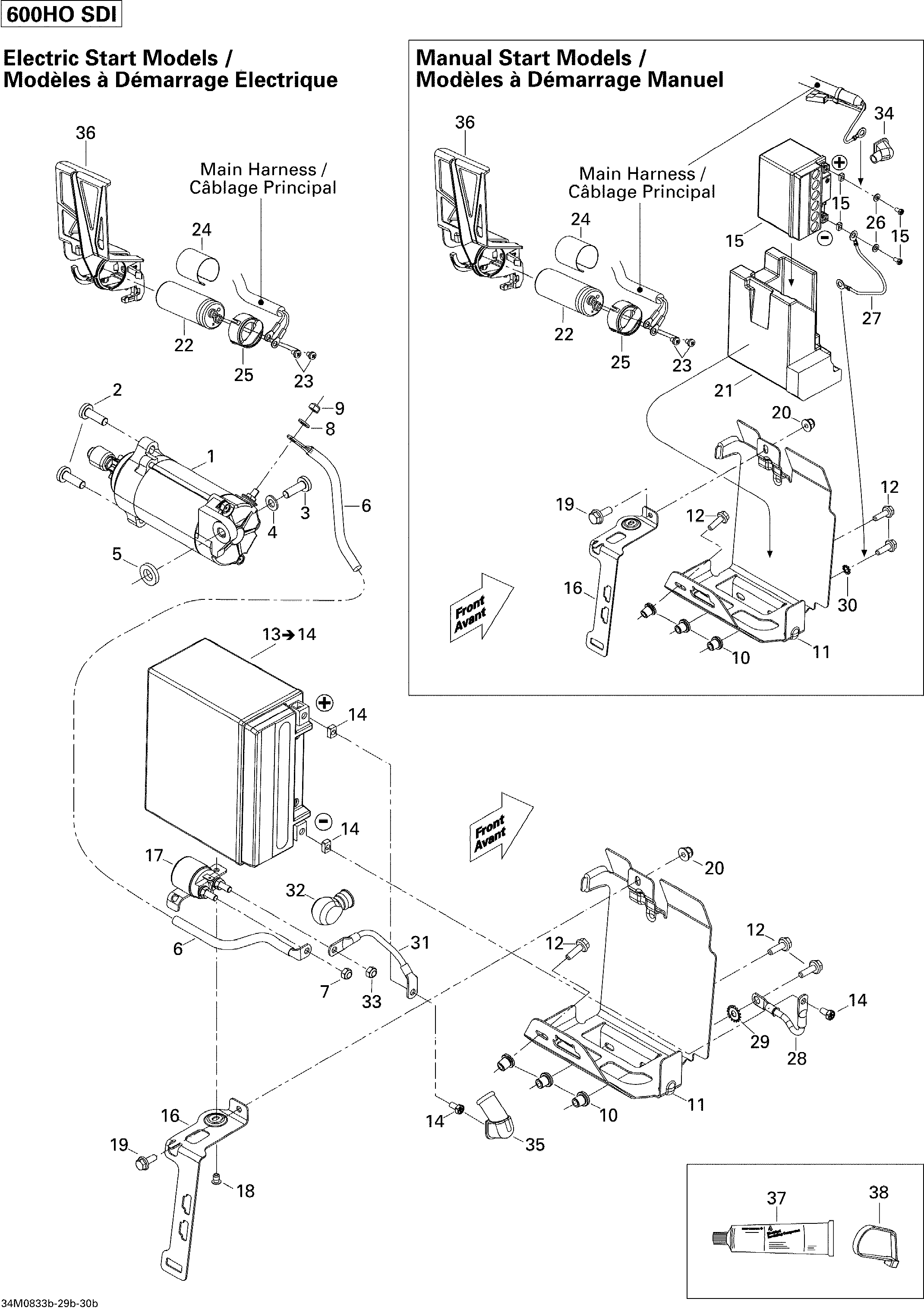

10- Battery And Starter 600HO SDI для BRP Ski-Doo MX Z ADRENALINE 600 HO SDI - 2008
-
№АртикулНазвание
-
1515176399 Starter. Electric StartStarter. Electric Start
-
2250000248 Torx Screw M8 X 25, Scotch Grip. Electric StartTorx Screw M8 X 25, Scotch Grip. Electric Start
-
3207583044 Hex. Flanged Screw M8 X 30, Scotch Grip. Electric StartHex. Flanged Screw M8 X 30, Scotch Grip. Electric Start
-
4250200008 Flat Washer 8 mm. Electric StartFlat Washer 8 mm. Electric Start
-
5515176500 Washer. Electric StartWasher. Electric Start
-
6515176534 Battery Wire. Electric StartBattery Wire. Electric Start
-
7232561414 Elastic Stop Nut M6. Electric StartElastic Stop Nut M6. Electric Start
-
8234061410 Flat Washer 6 mm. Electric StartFlat Washer 6 mm. Electric Start
-
9232561414 Elastic Stop Nut M6. Electric StartElastic Stop Nut M6. Electric Start
-
10415107300 InsertInsert
-
11515176601 Battery SupportBattery Support
-
12207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13410301203 Battery, 18 Amperes. Electric Start, Includes 13 to 14Battery, 18 Amperes. Electric Start, Includes 13 to 14
-
14295500849 Battery Fastener Kit. Electric StartBattery Fastener Kit. Electric Start
-
15410301204 Battery With Fasteners, 3 Amperes. Manual StartBattery With Fasteners, 3 Amperes. Manual Start
-
16515176368 Battery StripBattery Strip
-
17515176501 Starter Relay. Electric StartStarter Relay. Electric Start
-
18390402200 Pop Rivet 3/16''. Electric StartPop Rivet 3/16''. Electric Start
-
19207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21515176507 Capacitor Support. Manual StartCapacitor Support. Manual Start
-
22515176387 CapacitorCapacitor
-
23515176542 Screw 10-32 X 5/16''Screw 10-32 X 5/16''
-
24516002976 Capacitor DecalCapacitor Decal
-
25515176211 CapCap
-
26234051410 Flat Washer M5. Manual StartFlat Washer M5. Manual Start
-
27515176516 Ground Wire. Manual StartGround Wire. Manual Start
-
28515176358 Ground Wire. Electric StartGround Wire. Electric Start
-
29250200041 Lock Washer Serrated M6. Electric StartLock Washer Serrated M6. Electric Start
-
30394001900 External Tooth Lock Washer. Manual StartExternal Tooth Lock Washer. Manual Start
-
31515176535 Battery Wire. Electric StartBattery Wire. Electric Start
-
32570151000 Protection Cap. Electric StartProtection Cap. Electric Start
-
33232561414 Elastic Stop Nut M6. Electric StartElastic Stop Nut M6. Electric Start
-
34515176576 Protector Cap. Manual StartProtector Cap. Manual Start
-
35710000495 Protector Cap. Electric StartProtector Cap. Electric Start
-
36515176513 SupportSupport
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
38293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38293750008 Tie-Rap 350 mmTie-Rap 350 mm
